Tunable Laser Source

HOME  >  제조사별  >  YENISTA  >   Tunable Laser Source
페이지정보 : 1 / 1

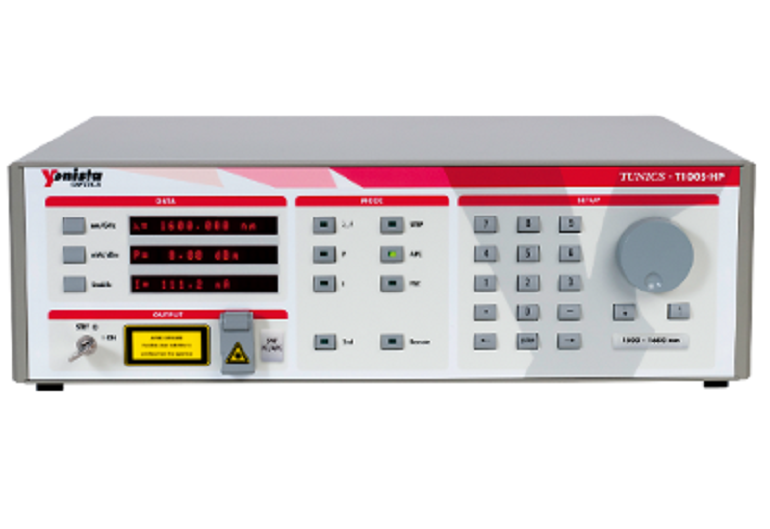

  • TUNICS T100S-HP

    Wavelength range
    • :1260-1360/1500-1630/1240-1380/1350-1510/1440-1640/1500-1680
    Output Power
    • :≥ 8 dBm / Peak ≥ 13 dBm
    Dynamic range
    • :100 dB
    Tuning range
    • :up to 200 nm
    Output Fiber
    • : SMF or PMF (option)

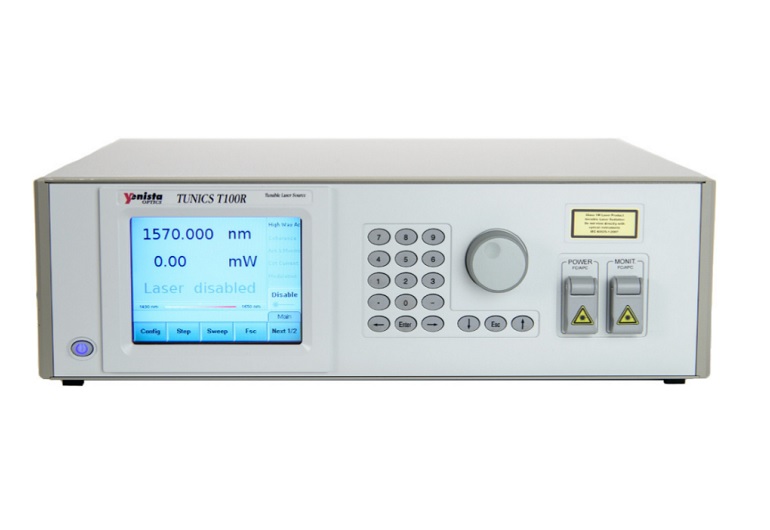

  • TUNICS T100R

    Wavelength range
    • :1480-1640 nm
    Output Power
    • :+ 10 dBm
    Sweep speed
    • :up to 100 nm/s
    Tuning range
    • :160 nm
    SSE level
    • :> 100 dBm

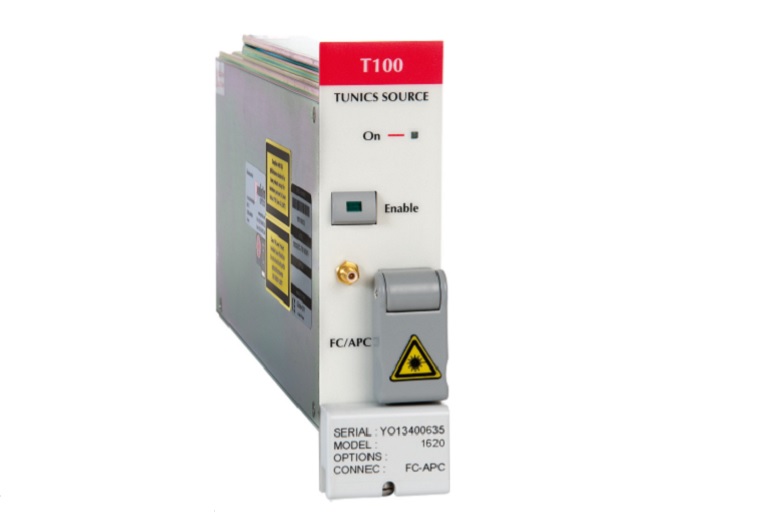

  • OSCIS-T100

    Wavelength range
    • :1260-1360/1360-1415/1465-1575/1490-1610/1520-1630/1560-1680nm
    Output Power
    • :+6 dBm
    SSSER
    • :> 90 dB / 0.1 nm
    Digital Modulation
    • :Up to 1 MHz
    Output Fiber
    • :SMF or PMF (option)

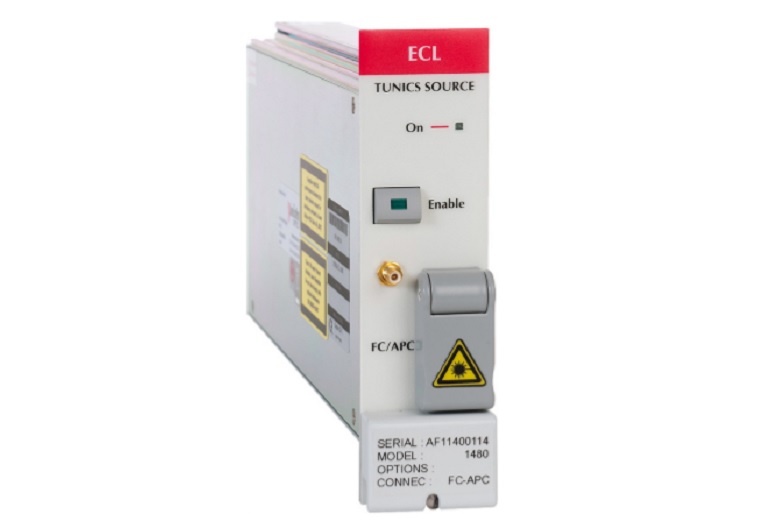

  • OSCIS-ECL1560

    Wavelength range
    • :1520-1600 / 1530-1580 nm
    Output Power
    • :+ 6 dBm
    SSSER
    • :45 dB / 0.1 nm
    Digital Modulation
    • :Up to 1 MHz
    Output Fiber
    • :SMF or PMF (option)
