Optical Spectrum Analyzer
HOME > 제조사별 > YENISTA > Optical Spectrum Analyzer
페이지정보 : 1 / 1
-
OSA20
- Wavelength range
-
- :1250 - 1700 nm
- Accuracy
-
- :±10 pm over 1500?1640 nm, ±25 pm over full range
- Sampling Resolution
-
- :2 pm
- Input Power/ch
-
- :≤ 20 dBm
- Optical Input
-
- :SMF-28 type fiber
-

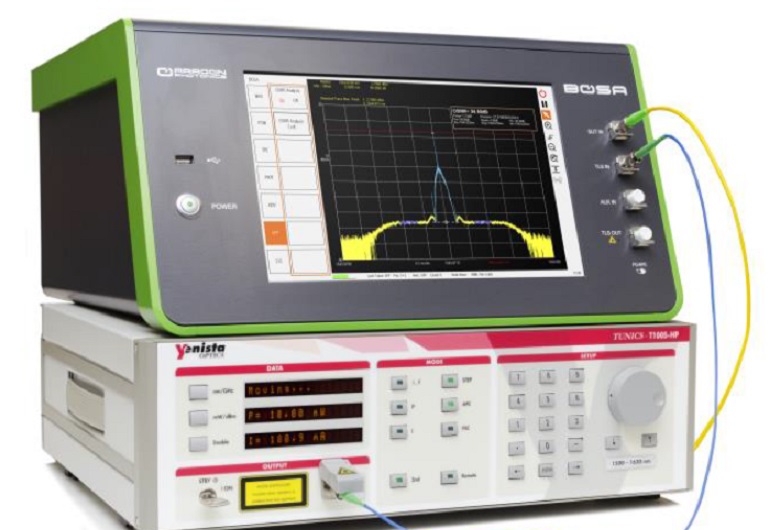

BOSA-100
- Wavelength range
-
- :1525 ?1565 nm (C-Band) / 1565 ?1607 nm (L-Band) / 1265 ?1355 nm (O-band)
- Accuracy
-
- :Typ±2 pm withYenistaT100S-HP
- Calibrated Input Power Range
-
- :+13 to -70 dBm
- Max Input Power
-
- :+20dBm
- Poweraccuracy
-
- :±0.5dB
-

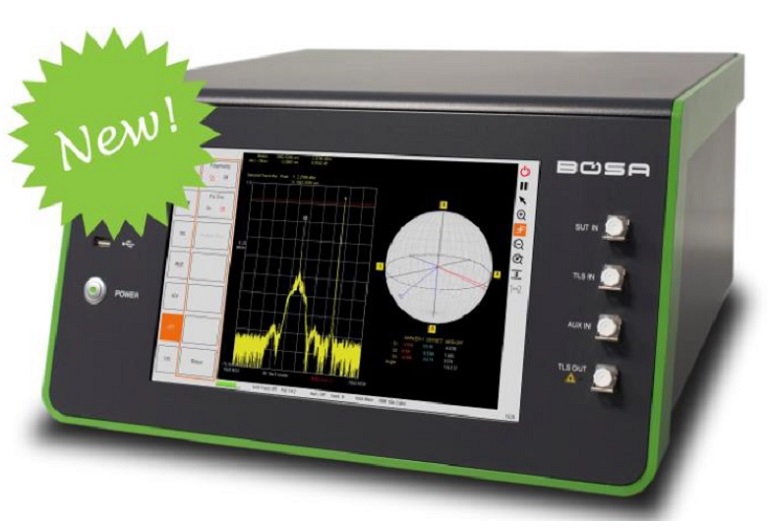

BOSA-400
- Wavelength range
-
- :1525 ? 1565 nm 1525 ? 1607 nm 1265 ? 1355 nm
- Accuracy
-
- : ±0.5 pm
- Calibrated Input Power Range
-
- : +13 to -70 dBm
- Max Input Power
-
- :+20dBm
- Power accuracy
-
- : ±0.5dB
