Optical Modules
HOME > 제조사별 > LUCEO (Optical) > Optical Modules
페이지정보 : 1 / 1
-

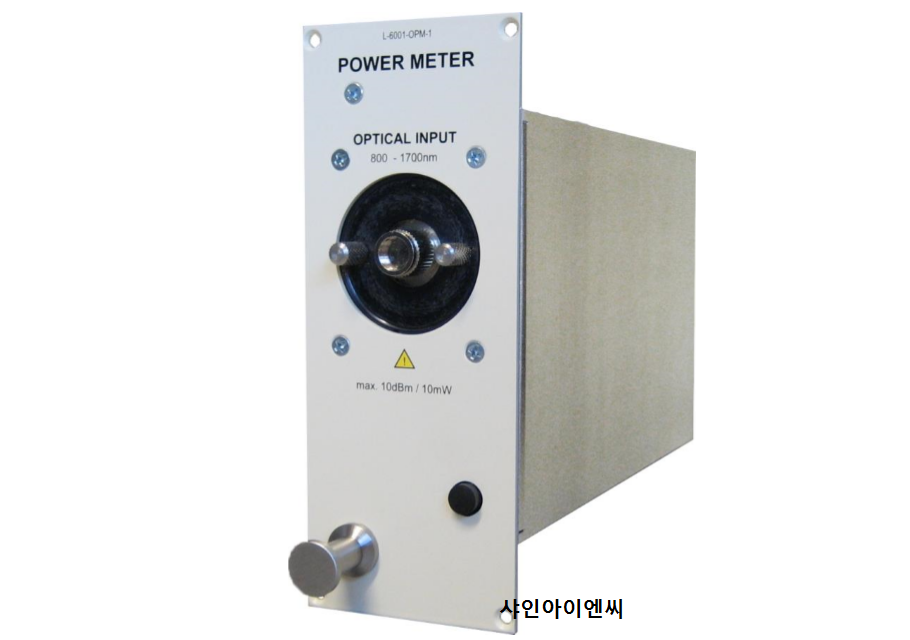

OPM-X (Optical power meter)
- Wavelength range
-
- :800 to 1700 nm
- Dynamic range
-
- :-70 dBm to +10 dBm
- Resolution
-
- :0.01 dBm
- Measure unit
-
- :Watts, dBm, relative P/Pref
- Receptable
-
- :FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, LC/APC, ST
-

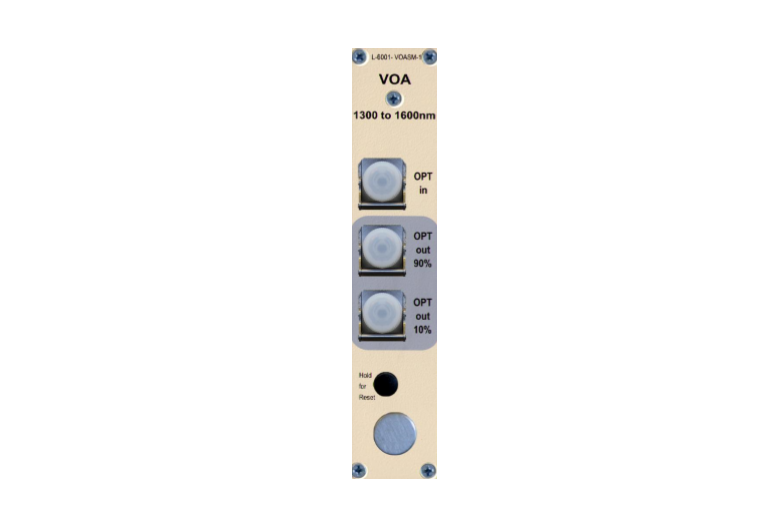

VOASM (Variable Optical Attenuator, Single mode)
- Wavelength 1
-
- :1270 to 1350 nm
- wavelength 2
-
- :1510 to 1590 nm
- Attenuation range
-
- :IL to 40 dB
- Attenuation step
-
- :0.01 dB
- Insertion loss
-
- :1.35 dB
-

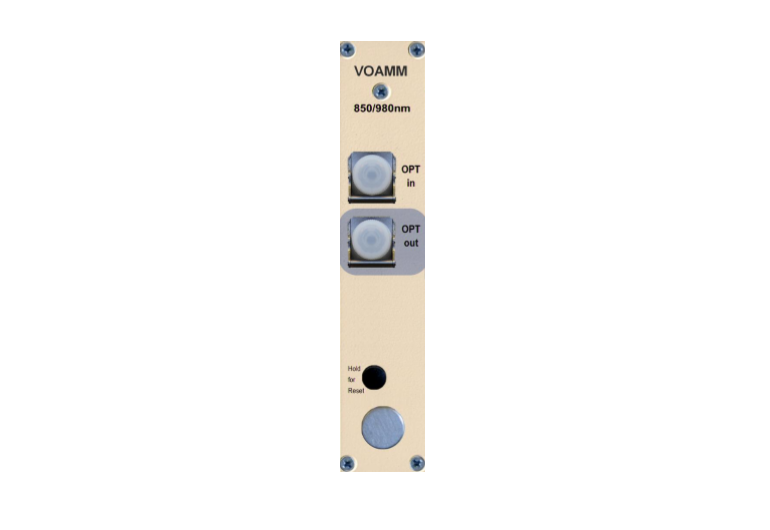

VOAMM (Variable Optical Attenuator, Multi-mode)
- Wavelength
-
- :800 to 1310 nm
- Fiber type
-
- :MMF 50/120 um
- Attenuation range
-
- :IL to 40 dB
- Attenuation step
-
- :0.01 dB
- Insertion loss
-
- :3 dB
