Pulse Generator
HOME > 제조사별 > ACTIVE TECHNOLOGIES > Pulse Generator
페이지정보 : 1 / 1
-
AWG-4022
- Bandwidth
-
- :1 GHz
- Sample rate
-
- :2.5 GS/s
- Output Voltage
-
- :5 Vpp
- Vertical resolution
-
- :14 bit
- Channel
-
- :2 (Analog), 16/32 (Digital), 8/128 (Multi)
-

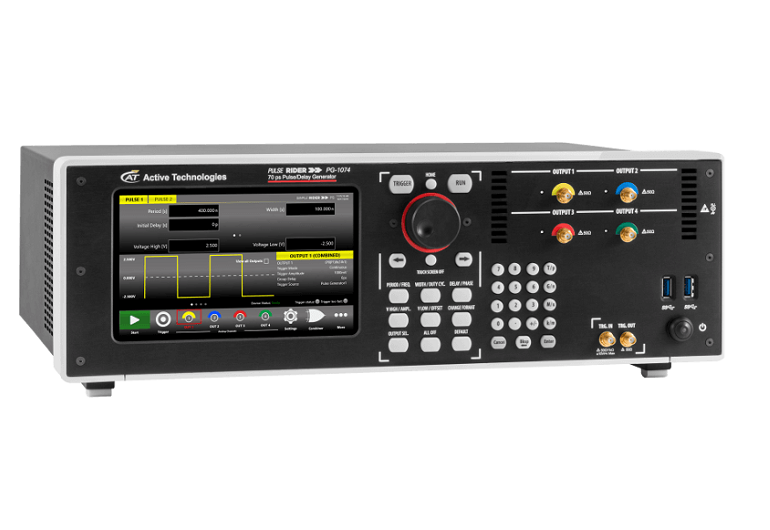

PG-1074
- Pulse frequency
-
- :0.125 Hz to 125 MHz (Single pulse mode)
- channel
-
- :4 channel
- Rise/fall time
-
- :< 70 ps fixed
- Amplitude
-
- :10 mVpp to 5 Vpp
- Pulse width
-
- :< 300 ps to > 1 s
-
PG-1072
- Pulse frequency
-
- :0.125 Hz to 125 MHz (Single pulse mode)
- channel
-
- :2 channel
- Rise/fall time
-
- :< 70 ps fixed
- Amplitude
-
- :10 mVpp to 5 Vpp
- Pulse width
-
- :< 300 ps to > 1 s
-

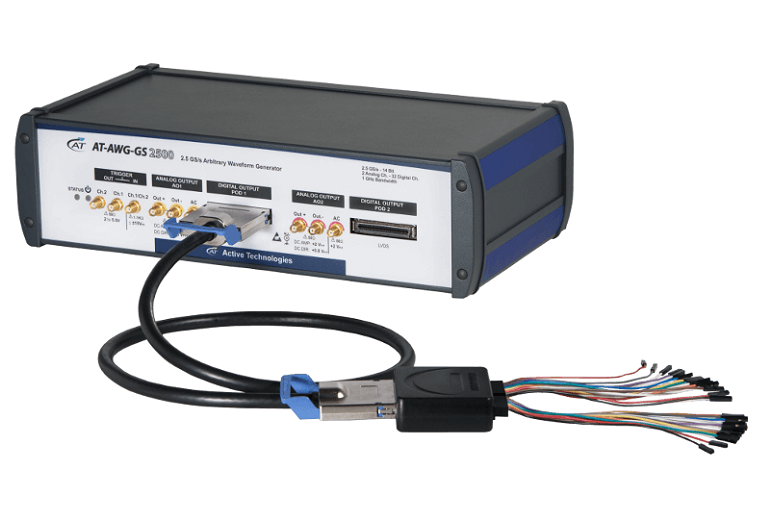

AWG-GS2500
- Bandwidth
-
- :1 GHz
- Sample rate
-
- :2.5 GS/s
- Frequency range
-
- :1 GHz
- Vertical resolution
-
- :14 bit
- Channel
-
- :2 (Analog), 32 (Digital), 4analog/64digital (Multi)
-
AWG-1104
- Bandwidth
-
- :125 MHz
- Sample rate
-
- :1 GS/s
- Frequency range
-
- :125 MHz
- Vertical resolution
-
- :15 bit
- Channel
-
- :4 (Analog), 32 (Digital), 32analog/256digital (Multi)
-
AWG-1102
- Bandwidth
-
- :125 MHz
- Sample rate
-
- :1 GS/s
- Frequency range
-
- :125 MHz
- Vertical resolution
-
- :16 bit
- Channel
-
- :2 analog channel
