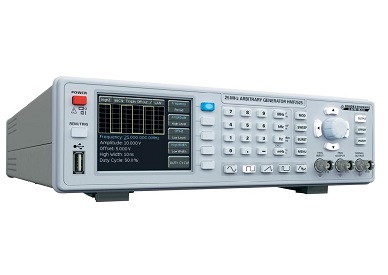

HMF2525 / 2550 (펑션제너레이터)
주요 스펙
- 주파수 범위
-
- :DC to 25 MHz / 50 MHz
- 진폭
-
- :5 mV to 10 V
- Arbitrary Waveform
-
- :250 Sample/s, 14bit, 256 kpoint
- Modulation Mode
-
- :AM, FM, PWM, FSK, Pulse
- 인터페이스
-
- :USB, RS-232
Key Facts
- Frequency range: 10 μHz to 25/50 MHz
- Triangle waveforms up to 10 MHz
- Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω)
- Total harmonic distortion of 0.04 % (f < 100 kHz)
- Waveforms: sine, square, triangle/ramp, pulse, arbitrary (incl. predefined waveforms such as white/pink noise, cardinal sine, exponential rise/fall)
- Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)

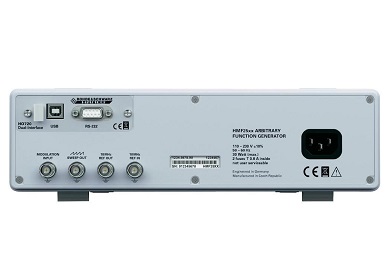

- External connectors: TRIGGER (I/O), SWEEP (O), MODULATION (I)
- External reference input/output (10 MHz) via BNC connector
- Arbitrary waveform generator: 250 Msample/s, 14 bit, 256 kpoint
- PC software (free of charge) to easily create user-defined waveforms
- Oscillographic signal display in realtime
- Front USB connector to easily save and recall waveforms and settings
- USB/RS-232 dual interface for remote control
- Fanless design
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Key Facts
- Frequency range: 10 μHz to 25/50 MHz
- Triangle waveforms up to 10 MHz
- Output voltage: 5 mV to 10 V (Vpp) (into 50 Ω)
- Total harmonic distortion of 0.04 % (f < 100 kHz)
- Waveforms: sine, square, triangle/ramp, pulse, arbitrary (incl. predefined waveforms such as white/pink noise, cardinal sine, exponential rise/fall)
- Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)
- External connectors: TRIGGER (I/O), SWEEP (O), MODULATION (I)
- External reference input/output (10 MHz) via BNC connector
- Arbitrary waveform generator: 250 Msample/s, 14 bit, 256 kpoint
- PC software (free of charge) to easily create user-defined waveforms
- Oscillographic signal display in realtime
- Front USB connector to easily save and recall waveforms and settings
- USB/RS-232 dual interface for remote control
- Fanless design
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Hardware Options
- HO720 Dual interface (RS-232/USB) for HMF, HMO, HMP, HMS series, included in delivery
- HO732 Ethernet/USB Dual Interface for HMF, HMO, HMP, HMS series
- HO740 IEEE-488 (GPIB) Interface for HMF, HMO, HMP, HMS series
