Although audio signals are mainly processed digitally nowadays, analog technology will remain a viable alternative that is continuously being enhanced. Therefore, both analog and digital measurements must be performed. The UPV audio analyzer is designed precisely for this purpose. The UPV enables users to perform virtually all measurements that are necessary in the audio world: frequency response measurement, total harmonic distortion (THD) displays, spectral displays, analysis of digital interfaces, and much more. The generator is just as versatile. It can be used to create any conceivable signal from sinewave and noise signals up to multi-sinewave signals. The UPV is an all-in-one instrument with an integrated control PC, making it easy to transport. Since the instrument comes factory-ready, it merely needs to be unpacked and switched on before being put into operation. Peripherals are therefore not required. Optional modules and software expansions that can be integrated into the instrument open up a broad scope of further applications. The UPV features an intuitive user interface (Windows operating system). The large screen plays a key role, not only for displaying measurement results. All settings are made in panels that contain all interrelated functions and settings. Since the operating philosophy is easy to understand and since analog and digital measurements are performed in a similar manner, users can quickly master instrument operation. The instrument features scalable graphical windows that can be moved around on the screen as needed, providing all measurement results at a glance. Results can be displayed in realtime for one or both channels and can optionally be expanded to a maximum of 16 channels. Multiple measurement functions/graphics are available simultaneously. For example, analyses in the frequency and time domains can be displayed at the same time. With graphics, results can be read off using vertical and horizontal cursors, and limit lines or stored measurement results can be superimposed on them or compared with them.
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Key Facts
- Suitable for all interfaces (analog, digital and combined)
- Simultaneous display of multiple measurement functions
- Sampling rate up to 400 kHz
- User-programmable filters for analyzers and generators
- Compact instrument with integrated PC
- Slots for future options
Features & Benefits
1) All test signals and measurement functions in a single box
- Generation of a wide variety of analog and ? by using the UPV-B2/-B41/-B42 options ? digital test signal
- Extensive measurement capabilities, on analog and also when the UPV-B2/-B41/-B42 options are installed ?digital interfaces
- Efficient as well as multichannel FFT analysis with a resolution down to the mHz range
- User-programmable filters can be adapted to the measurement task at hand in only a few seconds
- Everything included, no peripherals required

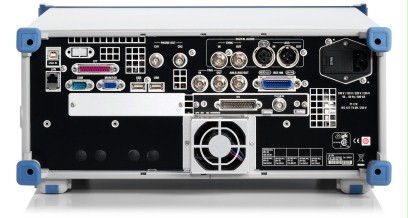

2) Largest variety of interfaces offered in a single instrument
- Analog generator outputs as standard
- Dual-channel analyzer with analog inputs as standard
- Expansion to 8 or 16 measurement channels (UPV-B48 option)
- Digital audio interfaces (UPV-B2 option)
- Digital protocol analysis and generation (UPV-K21 option)
- Jitter and interface test (UPV-K22 option)
- Test of audio ICs with I²S interface (UPV-B41 option)
- Virtually any audio circuit adaptable using the universal serial interface (UPV-B42 option)
- PDM bitstream analysis (UPV-K421 option)
- For both the generator and analyzer, all interfaces can be adjusted independently of one another, and they may be used together in any combination
3) Convenient operation throughout
- Owing to the intuitive user interface, operation can be learned in next to no time
- All measurement results at a glance
- Effective online help functions
4) Powerful and fast
- High measurement speed throughout the system
- Especially suitable for use in production
- UPV-K1 universal sequence controller for entire measurement sequence
5) Options for further applications
- UPV-B1 low distortion generator for extremely pure analog sinewave signals and for expanding the frequency range
- Second analog generator (UPV-B3) for generating different sinewave signals on the two analog output channels

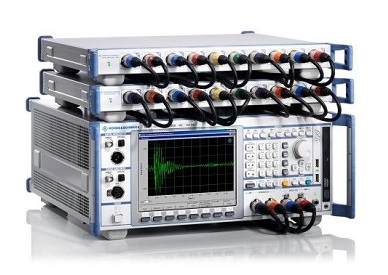

- Simultaneous pickup of measurement values for up to 16 analog channels with the UPV-B48 option (eight channels each)
- 192 kHz UPV-B2 digital audio I/O with digital audio interfaces in line with AES/EBU and in consumer format
- Universal digital interfaces (UPV-B42) or in I²S format (UPV-B41) for connecting digital audio circuits
- PDM bitstream analysis (UPV-K421) as an add-on to the UPV-B42 option
- Expanded analysis functions with the UPV-K6 option
- PESQ measurement (UPV-K61 option) for analyzing speech signals in line with psycho-acoustic methods
- PEAQ measurement (UPV-K62 option) for analyzing broadband audio signals in line with psychoacoustic methods
- POLQA measurement (UPV-K63 option) for analyzing broadband speech quality in line with psychoacoustic methods
- Standard-compliant measurement of hearing aids using the UPV-K7 and UPV-K71 options

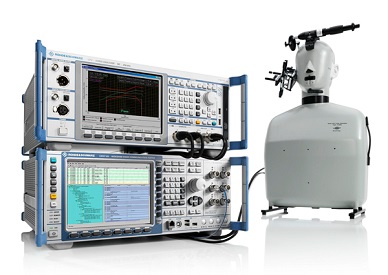

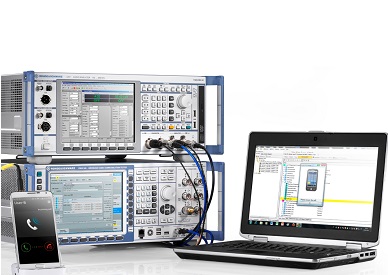

- UPV-K9/-K91/-K92/-K98/-K101 option package for acoustic measurements on mobile phones
- UPV-K4 remote control option for remote control of the UPV audio analyzer
- UPV-K1 universal sequence controller for creating and executing measurement sequences
- Change of the source impedance from 200 Ω to 150 Ω (UPV-U1 option)
- BNC monitoring outputs (UPV-U2 option)
- XLR/BNC adapter set (UP-Z1MF option)
- UPZ audio switcher for switching up to 128 channels to the inputs and outputs
