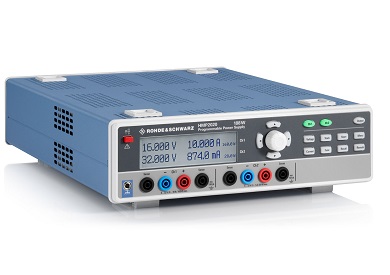

HMP2020
주요 스펙
- 출력
-
- :188 W
- 전압
-
- :0 ~ 32 V (2채널)
- 전류
-
- :0 ~ 10 A(1채널) + 0 ~ 5 A(2채널)
- 인터페이스
-
- :RS-232/USB, LAN/USB(옵션), GPIB (옵션)
- 채널 수
-
- :2 채널
Key Facts
- HMP2020: 1 × 0 V to 32 V/0 A to 10 A; 1 × 0 V to 32 V/0 A to 5 A (188 W)
- HMP2030: 3 × 0 V to 32 V/0 A to 5 A (188 W)
- Low residual ripple due to linear postregulators
- Realtime voltage, current and power values
- High setting and readback resolution: 1 mV and 0.1/0.2/1.0 mA (depending on current and model)
- FuseLink (electronic fuse) freely combinable for all channels
- FuseDelay tunable up to 250 ms
- EasyArb function directly programmable on device
- PC software (free of charge) for easy generation of user-defined waveforms
- Independently adjustable overvoltage protection (OVP) for each channel
- Advanced parallel and serial operation via V/I tracking
- 전면 커넥터: 4 mm (0.16 in) 소켓
- 모든 채널의 후면 커넥터 지원 (+sense)
- USB/RS-232 듀얼 인터페이스, 리모트 컨트롤 SCPI 기본 명령어
