- 2 × 0 V to 30 V/1 × 5 V, 3 × 2 A (max. 130 W)
- Realtime voltage and current values
- Linear regulated, two-quadrant power supply (current source and sink)
- Setting and readback resolution: 10 mV, 1 mA
- Electronic fuse and tracking
- Advanced parallel (up to 6 A) and serial (up to 65 V) operation
- Front connectors: 4 mm (0.16 in) safety sockets
- Sense connectors for line loss compensation (30 V channels)
- External modulation of output voltages up to 50 kHz
- Arbitrary module: 4096 points, 12 bit
- RS-232/USB dual interface, optionally IEEE-488 (GPIB)
02) 6264.1921
HOME > 제조사별 >

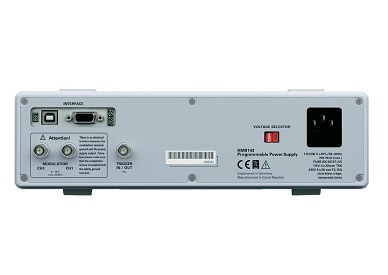

HM8143
주요 스펙
- 출력
-
- :130 W
- 전압
-
- :0-30 V (2채널) + 0-5 V (1채널)
- 전류
-
- :0-2 A (3채널)
- 인터페이스
-
- :RS-232, GPIB (옵션)
- 채널 수
-
- :3 채널
Key Facts
Key Facts
- 2 × 0 V to 30 V/1 × 5 V, 3 × 2 A (max. 130 W)
- Realtime voltage and current values
- Linear regulated, two-quadrant power supply (current source and sink)
- Setting and readback resolution: 10 mV, 1 mA
- Electronic fuse and tracking
- Advanced parallel (up to 6 A) and serial (up to 65 V) operation
- Front connectors: 4 mm (0.16 in) safety sockets
- Sense connectors for line loss compensation (30 V channels)
- External modulation of output voltages up to 50 kHz
- Arbitrary module: 4096 points, 12 bit
- RS-232/USB dual interface, optionally IEEE-488 (GPIB)
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Hardware Option
- HO820 USB/RS-232 Interface for Series 8100, included in delivery
- HO880 IEEE-488 (GPIB) Interface
Accessories
- HZ10B Silicon Test Lead banana to banana, 1 m (set of 5, blue)
- HZ10R Silicon Test Lead banana to banana, 1 m (set of 5, red)
- HZ10S Silicon Test Lead
banana to banana, 1 m (set of 5, black)
- HZ13 USB interface cable, 1.8 m
- HZ14 Serial interface cable, Sub-D 9-pin, 1:1, 1.8 m

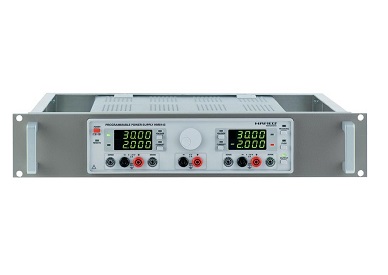

- HZ42 19" rackmount kit, 2 RU
for HM7042-5, HM8001-2, 8100 series, HMF series, HMP2020, HMP2030, HM8143
- HZ72 GPIB cable, 2 m, 90° angled, stackable
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
