FSH (휴대용 스펙트럼 분석기)

주요 스펙

FSH4
  • :9 kHz to 3.6 GHz
FSH8
  • :9 kHz to 8 GHz
FSH13
  • :9 kHz to 13.6 GHz
FSH20
  • :9 kHz to 20 GHz
소비자가격
  • :13,200,000원 부터

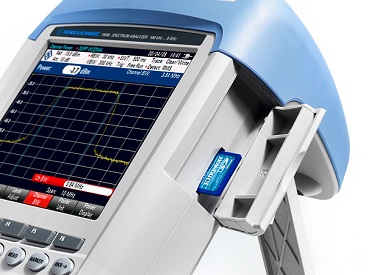

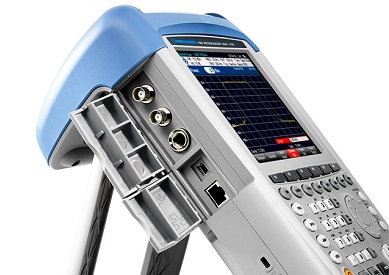

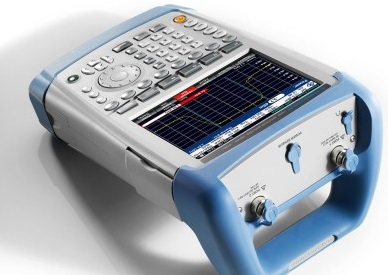

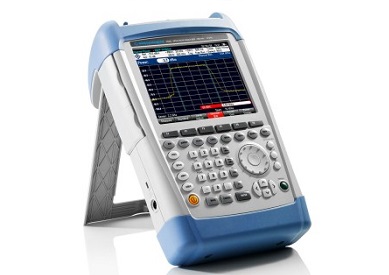

FSH 시리즈 휴대용 스펙트럼 분석기
FSH 스펙트럼 분석기는 견고하고 사용하기 편리하며 현장에서 사용하도록 설계되었습니다. 가벼운 무게, 간단하고, 잘 짜여진 운용시스템과 많은 측정기능이 필수적인 실외 작업에 효율적인 측정기가 필요한 사람을 위한 장비입니다. FSH 휴대용 스펙트럼 분석기는 모델 및 설치된 옵션에 따라 전력계, 케이블 및 안테나 테스터 및 2- 포트 벡터 네트워크 분석기를 지원합니다.
RF 서비스 기술자 또는 설치 및 유지 보수 팀이 일상적인 측정 작업을 해결하는 데 필요한 가장 중요한 RF 분석 기능. 기지국의 유지 보수 또는 설치, 케이블 및 안테나 점검, 방송의 신호 품질 평가, 무선 통신 전기장 강도를 측정하거나 연구실내 간단한 어플리케이션에서 서비스를 제공합니다. FSH는 이러한 작업을 빠르고 안정적이며 높은 측정 정확도로 수행 할수 있도록 설계되었습니다.


구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com



주요사양

 - 주파수 범위 : 9 kHz to 3.6/8/13.6/20 GHz
 - 내부 Brigde 방식으로 네트워크 분석기 모드 지원 (2port)
 - LTE 신호 분석을 위한 20 MHz demodulation bandwidth
 - 멀티 스크링 표시 기능
 - Distance to Fault 측정 기능으로 Cable 손상 측정
 - 낮은 측정 불확도 (< 1 dB)
 - 안테나를 이용한 전계 강도 측정 기능
 - 펄스를 분석할 수 있는 Pulse 분석 기능
 - BTS 신호 복조 분석 기능
 - 베터리 교체 방식 및 4시간 이상 연속 운용 가능
 - 기지국의 유지 보수와 관련된 모든 중요한 작업에 대한 측정 기능
  - DC 전압 공급 장치가 내장 된 내부 트래킹 발생기 및 VSWR 브리지 (바이어스)
  - 현장에서의 거친 작업을 위한 견고한 방적하우징
  - 무게가 가볍기 때문에 손쉬운 취급 (배터리 포함시 3kg) 및 누르기 쉬운 기능 키
  - 사용자 구성 가능, 자동 테스트 시퀀스 (마법사)로 손쉬운 작동특징 및 장점


기능 및 장점
송신기 스테이션 (기지국)의 설치 및 유지 보수
- 펄스 신호의 전력 측정
- 채널 전력 측정
- 인접 채널 전력 측정
- 스퓨리어스 발사의 측정 (스펙트럼 방출 마스크)
Gated sweep을 가진 펄스 신호의 변조 스펙트럼 측정
- 전송 신호 분석 (BTS 또는 OTA에 연결됨)
      GSM / GPRS / EDGE
      WCDMA / HSDPA / HSPA +
      CDMA2000
      1xEV-DO
      LTE FDD / TDD
      TD-SCDMA / HSDPA
- 거리 - 오류 측정
- 2-포트 벡터 네트워크 분석
- 스칼라 네트워크 분석
- 1 포트 케이블 손실 측정
- 벡터 전압계
- GPS 수신기를 사용하여 위치 찾기 및 향상된 측정 정확도
- 종단 전력 센서로 최대 67GHz의 고정밀 전력 측정
- 최대 4GHz의 지향성 전력 측정
- 채널 파워 미터
- 광대역 전력 센서를 이용한 펄스 분석
간섭 분석, 위치 정보 태그 지정 및 실내
- FSH-K14 및 FSH-K15를 사용한 스펙트로 그램 측정
- FSH-K15 및 지향성 안테나로 간섭 분석
- 위치 정보 태그 지정
- 실내 매핑
전자기장 측정
- 지향성 안테나를 이용한 전계 강도 측정
- 등방성 안테나를 이용한 전계 강도 측정
실험실 또는 서비스중인 진단 응용 프로그램
- 일반 스펙트럼 분석
- EMC 사전 준수 측정 및 채널 스캔
- AM 변조 깊이 측정
 - 고조파에 의한 신호 왜곡의 측정
- EMC 문제의 위치
간편한 조작
- 키패드와 회전 노브를 통한 빠른 기능 선택
- 어떠한 상황에서도 측정 결과를 최적으로 판독
- FSH 마법사를 사용하여 몇 단계 만에 보고서를 테스트하십시오.
- 채널 테이블을 통한 빈도 설정
- 다른 언어로 운영
문서 및 원격 제어
- 측정 결과를 문서화하는 FSH4View 소프트웨어
 - LAN 또는 USB를 통한 원격 제어

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com

FSH 시리즈 스펙트럼 분석기 사양 (Specifications)

Spectrum analysis

FSH4
FSH8
FSH13
FSH20
Frequency range models .04/.14/.08/
.18/ .13/.23/.20/.30		 9 kHz to 3.6 GHz 9 kHz to 8 GHz 9 kHz to 13.6 GHz 9 kHz to 20 GHz
  models .24/.28 100 kHz to 3.6 GHz 100 kHz to 8 GHz

Resolution bandwidths   1 Hz to 3 MHz
Displayed average noise level without preamplifier, RBW = 1 Hz (normalized)
  9 kHz to 100 kHz
(models .04/.14/
.08/.18 only)		 <-108 dBm, -118 dBm typ. <-96 dBm, -106 dBm typ.
  100 kHz to 1 MHz <-115 dBm, -125 dBm typ.
  1 MHz to 10 MHz <-136 dBm, -144 dBm typ.
  10 MHz to 2 GHz <-141 dBm, -146 dBm typ.
  2 GHz to 3.6 GHz <-138 dBm, -143 dBm typ.
  3.6 GHz to 5 GHz
<-142 dBm, -146 dBm typ.
  5 GHz to 6.5 GHz
<-140 dBm, -144 dBm typ.
  6.5 GHz to 13.6 GHz
<-136 dBm, -141 dBm typ.
  13.6 GHz to 18 GHz


<-134 dBm, -139 dBm typ.
  18 GHz to 20 GHz


<-130 dBm, -135 dBm typ.
  with preamplifier, RBW = 1 Hz (normalized)
  100 kHz to 1 MHz <-133 dBm, -143 dBm typ.
  1 MHz to 10 MHz <-157 dBm, -161 dBm typ. <-155 dBm, -160 dBm typ.
  10 MHz to 2 GHz <-161 dBm, -165 dBm typ.
  2 GHz to 3.6 GHz <-159 dBm, -163 dBm typ.
  3.6 GHz to 5 GHz
<-155 dBm,  -159 dBm typ.
  5 GHz to 6.5 GHz
<-151 dBm, -155 dBm typ.
  6.5 GHz to 8 GHz
<-147 dBm, -150 dBm typ.
  8 GHz to 13.6 GHz

<-158 dBm, -162 dBm typ.
  13.6 GHz to 18 GHz

<-155 dBm, ?-60 dBm typ.
  18 GHz to 20 GHz


<-150 dBm, -155 dBm typ.
Third-order intercept (IP3) 300 MHz to 3.6 GHz >10 dBm, +15 dBm typ.
  3.6 GHz to 20 GHz
>3 dBm, +10 dBm typ.
Phase noise frequency 500 MHz
  30 kHz carrier offset <-95 dBc (1 Hz), -105 dBc (1 Hz) typ.
  100 kHz carrier offset <-100 dBc (1 Hz), -110 dBc (1 Hz) typ.
  1 MHz carrier offset <-120 dBc (1 Hz), -127 dBc (1 Hz) typ.
Detectors
sample, max. peak, min. peak, auto peak, RMS
Level measurement uncertainty 10 MHz < f ≤ 3.6 GHz <1 dB,  0.5 dB typ.
  3.6 MHz < f ≤ 20 GHz
<1.5 dB,  1 dB typ.
Display   6.5" color LCD with VGA resolution
Battery operating time (without tracking generator) HA-Z204, 4.5 Ah up to 3 h
HA-Z206, 6.75 Ah up to 4.5 h
Dimensions (W × H × D)   194 mm × 300 mm × 69 mm (144 mm)
 7.6 in × 11.8 in × 2.7 in (5.7 in)
Weight   3 kg (6.6 lb)

With carrying handle.

Vector network analysis  vector voltmeter

FSH4
FSH8
FSH13/20
Frequency range models .24 /.28 /.23 /.30 300 kHz to 3.6 GHz 300 kHz to 8 GHz 100 kHz to 8 GHz
Output power (port 1)   0 dBm to ?40 dBm -
Output power (port 2)   0 dBm to -40 dBm 0 dBm to -40 dBm
Reflection measurement (S11, S22)
Directivity 300 kHz to 3 GHz >43 dB nominal >43 dB nominal >43 dB nominal 3)
  3 GHz to 3.6 GHz >37 dB nominal >37 dB nominal >37 dB nominal 3)
  3.6 GHz to 6 GHz
>37 dB nominal >37 dB nominal 3)
  6 GHz to 8 GHz
>31 dB nominal >31 dB nominal 3)
Display modes vector reflection and transmission measurement (FSH-K42) magnitude, phase, magnitude + phase, Smith chart, VSWR, reflection coefficient, mρ, on-port cable loss, electrical length, group delay
  vector voltmeter (FSH-K45) magnitude + phase, Smith chart
Transmission measurements
Dynamic range (S21) 100 kHz to 300 kHz 70 dB typ. 70 dB typ. -
  300 kHz to 3.6 GHz >70 dB, 90 dB typ. >70 dB, 90 dB typ. -
  3.6 GHz to 6 GHz
>70 dB, 90 dB typ. -
  6 GHz to 8 GHz
50 dB typ. -
Dynamic range (S12) 100[nbsp]]kHz to 300 kHz 80 dB typ. 80 dB typ. typ. 80 dB
  300 kHz to 3.6 GHz >80 dB, 100 dB typ. >80 dB, 100 dB typ. 80 dB, 100 dB typ.
  3.6< GHz to 6 GHz
>80 dB, 100 dB typ. 80 dB, 100 dB typ.
  6 GHz to 8 GHz
60 dB typ. 60 dB typ.
Display modes vector reflection and transmission measurement (FSH-K42) magnitude (attenuation, gain), phase, magnitude + phase, electrical length, group delay
  vector voltmeter (FSH-K45) magnitude + phase

1)Available for models .24/.28/.23/.30 only; models .24/.28 require FSH-K42 additionally.
2) For models .24/.28/.23/.30 only, requires FSH-K45.
3) Only S22-measurements.

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com

Hardware Options
  • R&S?FSH-B106 Order No. 1304.5958.02
    Li-Ion Battery Pack
    6.75 Ah (factory installed)
Software Options
  • R&S?FSH-K14 Order No. 1304.5770.02
    Spectrogram measurement application
  • R&S?FSH-K15 Order No. 1309.7488.02
    Interference analysis measurement application (software license)
  • R&S?FSH-K16 Order No. 1309.7494.03
    Geotagging measurement application
  • R&S?FSH-K17 Order No. 1304.5893.02
    Indoor Mapping Measurement Application
  • R&S?FSH-K29 Order No. 1304.5993.02
    Pulse Measurements with Power Sensor
    (requires R&S?FSH-Z129 for R&S?FSH4/8/13/20 with serial numbers < 121000)
  • R&S?FSH-K40 Order No. 1304.5606.02
    Remote Control via LAN or USB
  • R&S?FSH-K41 Order No. 1304.5612.02
    Distance-to-Fault Measurement
    (for models .24/.28/.23/.30 only, requires R&S?FSH-Z320 or R&S?FSH-Z321 and R&S?FSH-Z28 or R&S?FSH-Z29)
  • R&S?FSH-K42 Order No. 1304.5629.02
    Two-port vector network analysis
    (for models .24/.28 only, requires R&S?FSH-Z28 or R&S?FSH-Z29, models .23/.30 support one port reflection and transmission measurements as standard)
  • R&S?FSH-K10 Order No. 1304.5864.02
    GSM, EDGE measurement application
  • R&S?FSH-K44 Order No. 1304.5641.02
    3GPP WCDMA BTS/NodeB Application for Pilot Channel and EVM Measurements
  • R&S?FSH-K44E Order No. 1304.5758.02
    3GPP WCDMA BTS/NodeB Application for Code Domain Power Measurements
    (requires R&S?FSH-K44)
  • R&S?FSH-K45 Order No. 1304.5658.02
    Vector Voltmeter
    (for models .24/.28/.23/.30 only, requires R&S?FSH-Z28 or R&S?FSH-Z29)
  • R&S?FSH-K46 Order No. 1304.5729.02
    CDMA2000? BTS Application for Pilot Channel and EVM Measurements
  • R&S?FSH-K46E Order No. 1304.5764.02
    CDMA2000? BTS Application for Code Domain Power Measurements
    (requires R&S?FSH-K46)
  • R&S?FSH-K47 Order No. 1304.5787.02
    1xEV-DO BTS Application for Pilot Channel and EVM Measurements
  • R&S?FSH-K47E Order No. 1304.5806.02
    1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement application
    R&S?FSH-K47 required (software license)
  • R&S?FSH-K48 Order No. 1304.5841.02
    TD-SCDMA BTS Power and EVM Measurements
  • R&S?FSH-K48E Order No. 1304.5858.02
    TD-SCDMA/HSDPA BTS Power and EVM Measurements
    (R&S?FSH-K48 required)
  • R&S?FSH-K50 Order No. 1304.5735.02
    LTE FDD Downlink Application for Pilot Channel and EVM Measurements
  • R&S?FSH-K50E Order No. 1304.5793.02
    LTE FDD Downlink Application for Enhanced Channel and Modulation Measurements
    (requires R&S?FSH-K50)
  • R&S?FSH-K51 Order No. 1304.5812.02
    LTE TDD Downlink Application for Pilot Channel and EVM Measurements
  • R&S?FSH-K51E Order No. 1304.5829.02
    LTE TDD Downlink Application for Enhanced Channel and Modulation Measurements
    (requires R&S?FSH-K51)
  • R&S?FSH-K43 Order No. 1304.5635.02
    Receiver mode and channel scan measurement
Accessories
  • R&S?FSH-Z101 Order No. 1164.6242.02
    USB Adapter Cable for R&S?FSH-Z1/-Z18
    length 1.8 m
  • R&S?FSH-Z114 Order No. 1304.5935.02R&S?FSH-Z114 Precision Frequency Reference
    Precision Frequency Reference
    aging: < 3.6 x10-9 / year
  • R&S?FSH-Z144 Order No. 1145.5909.02
    USB adapter cable
    for R&S?FSH-Z14/-Z44, length 1.8 m
  • R&S?FSH-Z320 Order No. 1309.6600.00
    RF Cable (length 1 m), N male/N female
    for R&S?FSH-K41 option, DC to 8 GHz
  • R&S?FSH-Z321 Order No. 1309.6617.00
    RF Cable (length 3 m), N male/N female
    for R&S?FSH-K41 option, DC to 8 GHz
  • R&S?FSH-Z28 Order No. 1300.7810.03R&S?FSH-Z28 Combined Open/Short/50 Ω Load Calibration Standard, for calibrating the VSWR and DTF measurement
    Combined Open/Short/50 Ω Load Calibration Standard, for calibrating the VSWR and DTF measurement
    DC to 8 GHz for R&S?FSH
  • R&S?FSH-Z29 Order No. 1300.7510.03R&S?FSH-Z29 Combined Open/Short/50 Ω Load Calibration Standard, for calibrating the VSWR and DTF measurement
    Combined Open/Short/50 Ω Load Calibration Standard, for calibrating the VSWR and DTF measurement
    DC to 3.6 GHz for R&S?FSH4/R&S?FSH8
  • R&S?RAZ Order No. 0358.5714.02R&S?RAZ Matching Pad 50/75 Ω, series resistor 25 Ω
    Matching Pad 50/75 Ω, series resistor 25 Ω
  • R&S?RAM Order No. 0358.5414.02R&S?RAM Matching Pad 50/75 Ω
    Matching Pad 50/75 Ω
    bidirectional, 0 Hz to 2.7 GHz, N (f)/N (m) connectors, load capacity 2 W, L section
  • R&S?FSH-Z38 Order No. 1300.7740.02
    Matching Pad 50/75 Ω, L section, N to BNC
    bidirectional, 0 Hz to 1 GHz, BNC female/N male connectors, load capacity 1 W
  • R&S?HA-Z204 Order No. 1309.6130.00
    Lithium-Ion Battery Pack, 4.5 Ah
  • R&S?HA-Z206 Order No. 1309.6146.00
    Lithium-Ion Battery Pack, 6.75 Ah
  • R&S?HA-Z203 Order No. 1309.6123.00R&S?HA-Z203 Battery Charger for Lithium-Ion battery pack, 4.5 Ah/6.75 Ah
    Battery Charger for Lithium-Ion battery pack, 4.5 Ah/6.75 Ah
  • R&S?HA-Z202 Order No. 1309.6117.00
    Vehicle Adapter for Power Supply
  • R&S?HA-Z220 Order No. 1309.6175.00R&S?HA-Z220 Carrying Bag
    Carrying Bag
    soft carrying bag
  • R&S?HA-Z221 Order No. 1309.6181.00
    Hard Case
  • R&S?HA-Z222 Order No. 1309.6198.00R&S?HA-Z222 Carrying Holster
    Carrying Holster
    chest strap and rainproof cover
  • R&S?HA-Z223 Order No. 1309.6075.00
    Shoulder Strap for Carrying Holster
  • R&S?HA-Z240 Order No. 1309.6700.03
    GPS Receiver
  • R&S?FSH-Z36 Order No. 1145.5838.02
    Headphones
  • R&S?HE300 Order No. 4067.5900.02R&S?HE300 Active Directional Antenna
    Active Directional Antenna
    three antenna modules covering the frequency range from 20 MHz to 7.5 GHz, grip piece housing switchable preamplifier, hardshell transit case with extra space for the R&S?PR100/R&S?DDF007
  • R&S?HE300HF Order No. 4067.6806.02R&S?HE300HF HF-Option to R&S?HE300
    HF-Option to R&S?HE300
    loop antenna from 9 kHz to 20 MHz for R&S?HE300 active directional antenna
  • R&S?HL300 Order No. 4097.3005.02R&S?HL300 Antenna
    Antenna
    Handheld Log-Periodic Antenna
  • R&S?TSEMF-B1 Order No. 1074.5719.02
    Isotropic Antenna
    30 MHz to 3 GHz for R&S?TS-EMF
    (Delivered with individual calibration data (factory calibration) as standard.)
  • R&S?TSEMF-B2 Order No. 1074.5702.02
    Isotropic Antenna
    700 MHz to 6 GHz for R&S?TS-EMF
    (Delivered with individual calibration data (factory calibration) as standard.)
  • R&S?TSEMF-B3 Order No. 1074.5690.02
    Isotropic Antenna
    9 kHz to 200 MHz for R&S?TS-EMF
    (Delivered with typical calibration data as standard.)
  • R&S?HZ-15 Order No. 1147.2736.02R&S?HZ-15 Compact Probe Set for E and H Near-Field Measurements, 30 MHz to 3 GHz
    Compact Probe Set for E and H Near-Field Measurements, 30 MHz to 3 GHz
    for E and H near-field emission measurements with test receivers and spectrum analyzers
  • R&S?HZ-16 Order No. 1147.2720.02
    Preamplifier 3 GHz, 20 dB, Power Adapter (100 V to 230 V), for R&S?HZ-15
  • R&S?HA-Z211 Order No. 1309.6169.00
    Spare USB Cable
  • R&S?HA-Z210 Order No. 1309.6152.00
    Spare LAN Cable
  • R&S?HA-Z201 Order No. 1309.6100.00
    Spare AC Power Supply
Power Sensors
  • R&S?NRP-Z211 Order No. 1417.0409.02 / 1417.0409.04R&S?NRP-Z211 Two-Path Diode Power Sensors
    Two-Path Diode Power Sensors
    Cost-effective power measurement solution for production
    Measurement range: -60 dBm to +20 dBm,
    Frequency range: 10 MHz to 8 GHz,
    N connector
  • R&S?NRP-Z221 Order No. 1417.0309.02R&S?NRP-Z221 Two-Path Diode Power Sensors
    Two-Path Diode Power Sensors
    Cost-effective power measurement solution for production
    Measurement range: -60 dBm to +20 dBm,
    Frequency range: 10 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z22 Order No. 1137.7506.02R&S?NRP-Z22 Three-Path Diode Power Sensors
    Three-Path Diode Power Sensors
    Fast, accurate and packed with features for CW and modulated signals
    Measurement range: -57 dBm to +33 dBm,
    Frequency range: 10 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z23 Order No. 1137.8002.02R&S?NRP-Z23 Three-Path Diode Power Sensors
    Three-Path Diode Power Sensors
    Fast, accurate and packed with features for CW and modulated signals
    Measurement range: -47 dBm to +42 dBm,
    Frequency range: 10 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z24 Order No. 1137.8502.02R&S?NRP-Z24 Three-Path Diode Power Sensors
    Three-Path Diode Power Sensors
    Fast, accurate and packed with features for CW and modulated signals
    Measurement range: -42 dBm to +45 dBm,
    Frequency range: 10 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z81 Order No. 1137.9009.02R&S?NRP-Z81 Wideband Power Sensor
    Wideband Power Sensor
    Time domain analysis and automatic pulse analysis for radar applications and universal use
    Measurement range: -60 dBm to +20 dBm,
    Frequency range: 50 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z55 Order No. 1138.2008.03R&S?NRP-Z55 Thermal Power Sensor model .03
    Thermal Power Sensor model .03
    Most accurate power measurements for reference applications and use in calibration labs
    Measurement range: -35 dBm to +20 dBm,
    Frequency range: DC to 40 GHz,
    2.92 mm connector
  • R&S?NRP-Z56 Order No. 1171.8201.02R&S?NRP-Z56 Thermal Power Sensor
    Thermal Power Sensor
    Most accurate power measurements for reference applications and use in calibration labs
    Measurement range: ?35 dBm to +20 dBm,
    Frequency range: DC to 50 GHz,
    2.4 mm connector
  • R&S?NRP-Z57 Order No. 1171.8401.02R&S?NRP-Z57 Thermal Power Sensor
    Thermal Power Sensor
    Most accurate power measurements for reference applications and use in calibration labs
    Measurement range: ?35 dBm to +20 dBm,
    Frequency range: DC to 67 GHz,
    1.85 mm connector
  • R&S?NRP-Z91 Order No. 1168.8004.02 / 1168.8004.04 R&S?NRP-Z91 Average Power Sensor
    Average Power Sensor
    Accurate average power measurements for EMC applications
    Measurement range: -67 dBm to +23 dBm,
    Frequency range: 9 kHz to 6 GHz,
    N connector
  • R&S?NRP-Z92 Order No. 1171.7005.02 / 1171.7005.42R&S?NRP-Z92 Average Power Sensor
    Average Power Sensor
    Accurate average power measurements for EMC applications
    Measurement range: -57 dBm to +33 dBm,
    Frequency range: 9 kHz to 6 GHz,
    N connector
  • R&S?NRP-Z4 Order No. 1146.8001.02 / 1146.8001.04 / 1146.8001.06 / 1146.8001.11
    USB Adapter (passive)
    For all R&S?NRP-Z sensors.
    The R&S?NRP-Z4 passive USB adapter provides all basic functions, as it handles the transmission of settings and measurement data as well as the power supply of the sensor via the USB bus.
    Available cable lenghths: Available cable lengths: 2.0m, 0.5m and 0.15m
    Available cable length for panel-mount: 1m
  • R&S?FSH-Z1 Order No. 1155.4505.02R&S?FSH-Z1 Power Sensor
    Power Sensor
    10 MHz to 8 GHz
  • R&S?FSH-Z14 Order No. 1120.6001.02R&S?FSH-Z14 Directional Power Sensor
    Directional Power Sensor
    25 MHz to 1 GHz
  • R&S?FSH-Z18 Order No. 1165.1909.02R&S?FSH-Z18 Power Sensor
    Power Sensor
    10 MHz to 18 GHz
  • R&S?FSH-Z44 Order No. 1165.2305.02R&S?FSH-Z44 Directional Power Sensor
    Directional Power Sensor
    200 MHz to 4 GHz
LIST
