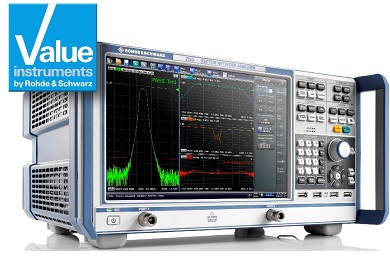

ZND (Cost performance Network Analyzer)
주요 스펙
- Frequency Range
-
- :100 kHz to 4.5 / 8.5 GHz
- Output Power
-
- :+3 dBm
- Number of Point
-
- :5,001 per trace
- IF Bandwidth
-
- :1 Hz to 300 kHz
- Measurement time
-
- :< 10 us
Key Facts
- Two-port network analyzer for unidirectional measurements from 100 kHz to 4.5 GHz
- Frequency range can be extended to 8.5 GHz
- Test set can be enhanced for bidirectional measurements
- Touchscreen operation
- Dynamic range up to 120 dB
- Power sweep range up to 48 dB
- Bandwidths from 1 Hz to 300 kHz
- More than 100 traces and channels
- Compatible with all Rohde & Schwarz network analyzers
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Brief Description
- The ZND is a basic network analyzer that provides unidirectional measurements up to 4.5 GHz.
Options are available to perform bidirectional measurements and to extend the frequency range to 8.5 GHz.
Features & Benefits
1) The analyzer that grows with your requirements
- Vector network analysis
- Unidirectional test set
- Bidirectional test set
- Easy to upgrade
- Time domain analysis for cable and filter measurements
- Easy transition to analyzers from the R&S?ZNB family
- Interfaces for test sequence control in production environments
2) Easy to operate
- Flat menu structures for efficient operation
- Optimal display configuration for each measurement task
3) Convenient calibration
- The right calibration method for every application
- Flexibility and accuracy with Rohde & Schwarz calibration kits
- Automatic calibration within 30 seconds
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Key Facts
- Two-port network analyzer for unidirectional measurements from 100 kHz to 4.5 GHz
- Frequency range can be extended to 8.5 GHz
- Test set can be enhanced for bidirectional measurements
- Touchscreen operation
- Dynamic range up to 120 dB
- Power sweep range up to 48 dB
- Bandwidths from 1 Hz to 300 kHz
- More than 100 traces and channels
- Compatible with all Rohde & Schwarz network analyzers
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Brief Description
- The ZND is a basic network analyzer that provides unidirectional measurements up to 4.5 GHz.
Options are available to perform bidirectional measurements and to extend the frequency range to 8.5 GHz.
Features & Benefits
1) The analyzer that grows with your requirements
- Vector network analysis
- Unidirectional test set
- Bidirectional test set
- Easy to upgrade
- Time domain analysis for cable and filter measurements
- Easy transition to analyzers from the R&S?ZNB family
- Interfaces for test sequence control in production environments
2) Easy to operate
- Flat menu structures for efficient operation
- Optimal display configuration for each measurement task
3) Convenient calibration
- The right calibration method for every application
- Flexibility and accuracy with Rohde & Schwarz calibration kits
- Automatic calibration within 30 seconds
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Basic, solid-performance network analysis
Options
- ZND-B10 GPIB Interface Requires ZVAB-B44 to control external generators via the IEC/IEEE bus.
- ZN-B14 Handler I/O (Universal Interface)
- ZND-K1 Extended frequency range, unidirectional, 8.5GHz
ZND-K1: cannot be combined with ZND-K5 and ZND-K8. Recalibration required
- ZND-K2 Time Domain Analysis (TDR)
- ZND-K5 Full Test Set, Base Unit, bidirectional, 4.5GHz
ZND-K5: cannot be combined with ZND-K1 and ZND-K6. Recalibration required
- ZND-K6 Full Test Set, bidirectional, 8.5GHz
ZND-K6: requires ZND-K1, cannot be combined with ZND-K5 and ZND-K8. Recalibration required
- ZND-K7 Extended Power Range for ZND
Recalibration required
- ZND-K8 Extended frequency range, Full Test Set, bidirectional, 8.5GHz
ZND-K8: requires ZND-K5, cannot be combined with ZND-K1 and ZND-K6. Recalibration required
General Accessories
Accessories Overview of Accessories for Network Analyzer from Rohde & Schwarz
Recommended Extras
- ZZA-KN5 19" Rack Adapter
For mounting a 19" housing 5 RU high in a standard 19" rack
