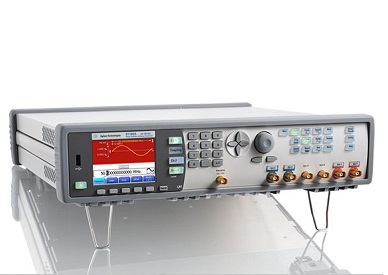

81160A 시리즈 펄스/펑션제너레이터

주요 스펙

주파수 범위 1
  • :1 uHz to 330 MHz (Pulse)
주파수 범위 2
  • :1 uHz to 500 MHz (sine)
임의파형
  • :4 bit, 2.5 GSa/s
메모리
  • :up to 256kpts per 채널
인터페이스
  • :USB, LAN, GPIB
주요 특징 및 사양
 - Generation of 330-MHz pulses and 500-MHz function/arbitrary waveforms with a 2.5-GSa/s sample rate and 14-bit vertical resolution;
 - Selectable crest factors for white Gaussian noise lets engineers determine how much distortion to apply to a device during stress
    testing to meet various serial bus standards;
 - Glitch-free timing parameter changes allow engineers to change the frequency without drop-outs or glitches and enable continuous
    operation without rebooting or resetting the device under test; and
 - Arbitrary bit patterns show capacitive load of the channels using simple pattern settings. Complex measurement setups are no longer
    necessary to test designs to their limits.
 - Pulses 330 MHz, 500 Mhz sine waves, 660 Mbit pattern

신호 생성 / 제작
Get advanced signal creation/editing capability without tedious programming with 33503A BenchLink Waveform Builder Pro Software.


내   용
 - High precision pulse generator
   is enhanced with a versatile signal generator, offering distortion capabilities to stress your device to its limit  -
 - Arbitrary bit-shaped pattern generator
   for ideal and distorted pattern up to 660 Mbit/s.
 - Function arbitrary generator
   provides versatile waveforms and modulation capabilities to adapt the signal to devices requirements
 - Noise generator combines
   two required extremes: random noise and repeatable noise with very long repetition rates for simple problem identification

The Keysight 81160A is used in many different applications

 - Noise source for physical layer tests in communications and computer bus standards for example
  1. MIPI
  2. PCI Express Gen 3
 - Clock generation
 - System trigger source
 - Radar test
 - Mixed signal device testing
 - Signal integrity test
? Noise and jitter emulation
? Ethernet
? SATA
? Nanotechnolgy
? And many more …
주요 특징 및 사양
 - Generation of 330-MHz pulses and 500-MHz function/arbitrary waveforms with a 2.5-GSa/s sample rate and 14-bit vertical resolution;
 - Selectable crest factors for white Gaussian noise lets engineers determine how much distortion to apply to a device during stress
    testing to meet various serial bus standards;
 - Glitch-free timing parameter changes allow engineers to change the frequency without drop-outs or glitches and enable continuous
    operation without rebooting or resetting the device under test; and
 - Arbitrary bit patterns show capacitive load of the channels using simple pattern settings. Complex measurement setups are no longer
    necessary to test designs to their limits.
 - Pulses 330 MHz, 500 Mhz sine waves, 660 Mbit pattern

신호 생성 / 제작
Get advanced signal creation/editing capability without tedious programming with 33503A BenchLink Waveform Builder Pro Software.


내   용
 - High precision pulse generator
   is enhanced with a versatile signal generator, offering distortion capabilities to stress your device to its limit  -
 - Arbitrary bit-shaped pattern generator
   for ideal and distorted pattern up to 660 Mbit/s.
 - Function arbitrary generator
   provides versatile waveforms and modulation capabilities to adapt the signal to devices requirements
 - Noise generator combines
   two required extremes: random noise and repeatable noise with very long repetition rates for simple problem identification

The Keysight 81160A is used in many different applications

 - Noise source for physical layer tests in communications and computer bus standards for example
  1. MIPI
  2. PCI Express Gen 3
 - Clock generation
 - System trigger source
 - Radar test
 - Mixed signal device testing
 - Signal integrity test
81160A-001 1 Channel 330MHz Pulse Function Arbitrary Generator
81160A-002 2 Channel 330MHz Pulse Function Arbitrary Generator
81160A-1A7 Calibration + Uncertainties + Guardbanding
81160A-330 License for 330 Mbit/s Pattern Generation
81160A-660 License for 660 Mbit/s Pattern Generation
81160A-DOC Printed Documentation of 81160A
81160A-Z54 Z540.3 Calibration Documents
81110A-1CP Rackmount and handle kit
81134A-PLG Continental European power cord - ONLY FOR EU DISTR W MULT PWR CORD STANDARDS
N6171A
MATLAB Software

MATLAB Software

N6171A
  • Create arbitrary waveforms
  • Customize measurement/data analysis routines, instrument applications/test systems
  • Automate measurements, signal generation, report generation
  • Available directly from Keysight with purchase of compatible instrument
N6171A-M01
MATLAB-Basic Package, individual license - node-locked
N6171A-M02
MATLAB-Standard Package, individual license - node-locked
N6171A-M03
MATLAB-Advanced Package, individual license - node-locked

MATLAB-Advanced Package, individual license - node-locked

N6171A-M03
  • Advanced MATLAB configuration includes:
  • MATLAB software environment
  • Instrument Control Toolbox
  • Communications Toolbox
  • Signal Processing Toolbox
  • DSP System Toolbox
  • RF Toolbox
