FSVR (리얼타임 스펙트럼 분석기)
주요 스펙
- FSVR7
-
- :10 Hz to 7 GHz
- FSVR13
-
- :10 Hz to 13.6 GHz
- FSVR30
-
- :10 Hz to 30 GHz
- FSVR40
-
- :10 Hz to 40 GHz
Brief Description

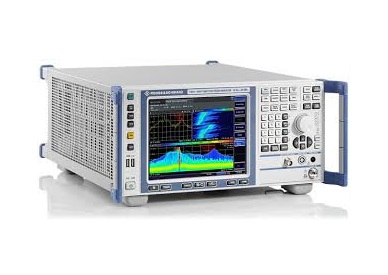

The FSVR combines a full-featured signal and spectrum analyzer with a real-time spectrum analyzer. In real-time operation, the FSVR seamlessly measures and displays the spectrum in the time domain with a span of up to 40 MHz. As a result, it captures every event for analysis, no matter how brief that event might be.
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Key Facts
- Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz
- 40 MHz real-time analysis bandwidth for:

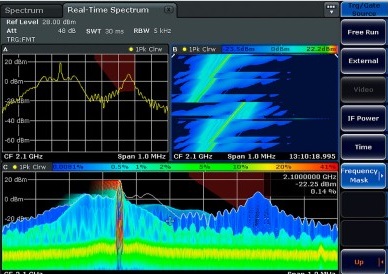

Spectrum with persistence function
Spectrogram display
Display of power versus time
- Triggering on frequency masks
- Measurement applications for cellular standards, wireless connectivity standards and general purpose,
e.g. phase noise, noise figure, vector signal analysis, etc.
- Frequency range up to 110 GHz with the FSVR30 or FSVR40, the FSV-B21 option and the
FS-Z60/-Z75/-Z90/-Z110 harmonics mixers
Features & Benefits
- Real-time spectrum analysis up to 40 GHz

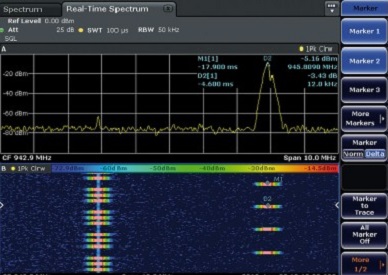

Spectrogram function for gapless spectrum display in the time domain
Frequency mask trigger (FMT) for triggering the measurement by individual, sporadic events in the spectrum
Persistence mode for visualizing how frequently signals occur
Power versus time for analyzing the length/time variance of signals
Real-time streaming of I/Q data for recording long RF sequences
- Full-featured signal and spectrum analyzer
Frequency sweep across the entire frequency range from 10 Hz to 40 GHz in just a few milliseconds
Expansion of the maximum input frequency to 110 GHz using external mixers
Outstanding level measurement accuracy up to 7 GHz
Excellent dynamic range and low phase noise
High measurement speed
Power measurement functions and statistical evaluations for analysis of digitally modulated signals
Versatile marker and trace evaluation functions
Measurement software for determining noise figure or phase noise
General vector signal analysis (VSA) and special analysis options for GSM/EDGE, WCDMA/HSPA+,
LTE, WiMAX, WLAN as well as analog modulation methods
Large I/Q memory depth
- Simple and intuitive operation by means of touch screen
Touch-screen operation: using the finger as a mouse cursor
Fast access to all important functions
Built-in help function
Undo/redo function
- Low total cost of ownership
Convenient on-site retrofitting of options
Easy scalability to handle application-specific requirements
Always up-to-date with firmware updates
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
FSVR 시리즈 스펙트럼 분석기 (Specifications)
| Frequency | ||
| Frequency range | FSVR7 | 10 Hz to 7 GHz |
| FSVR13 | 10 Hz to 13.6 GHz | |
| FSVR30 | 10 Hz to 30 GHz | |
| FSVR40 | 10 Hz to 40 GHz | |
| Aging of frequency reference | 1 × 10?6 | |
| with |
1 × 10?7 | |
| Real-time spectrum analyzer | ||
| Real-time RF bandwidth | 100 Hz to 40 MHz | |
| A/D converter | 128 Msample/s, 16 bit | |
| Windowing | Blackman Harris, Gauss, flat top, rectangular, Hanning, Kaiser | |
| Measurement points per trace | 801 | |
| Resolution bandwidth | real-time RF bandwidth/(100 to 400), depending on windowing | |
| Number of spectra per second | 250 000/s | |
| Spectrogram update rate | 10 000/s | |
| Screen update rate | 30/s | |
| Detectors | Average (linear or RMS), Max Peak, Min Peak, Sample | |
| Trace functions | Max Hold, Min Hold, Average | |
| FMT | ||
| Frequency resolution | real-time bandwidth/801 | |
| Trigger span | real-time RF bandwidth | |
| Dynamic range | 0 dB to ?80 dB below reference level | |
| Spectrum analyzer | ||
| Bandwidths | ||
| Resolution bandwidths | standard filter | 1 Hz to 10 MHz |
| standard filter, ZERO SPAN | 1 Hz to 10 MHz, 20 MHz, 40 MHz | |
| FFT sweep | 1 Hz to 300 kHz | |
| channel filter | 100 Hz to 5 MHz | |
| Video filter | 1 Hz to 10 MHz, 20 MHz, 28 MHz, 40 MHz | |
| I/Q demodulation bandwidth | 40 MHz | |
| Displayed average noise level | ||
| Displayed average noise level | 1 GHz | ?152 dBm (1 Hz) |
| 30 GHz | ?150 dBm | |
|
Displayed average noise level with preamplifier,
FSV-B22 or FSV-B24 option |
1 GHz | ?163 dBm |
| 30 GHz | ?162 dBm | |
| Intermodulation | ||
| TOI | f < 3.6 GHz | 16 dBm |
| Dynamic range | ||
| WCDMA ACLR | 70 dB | |
| with noise compensation | 73 dB | |
| Phase noise | ||
| 1 GHz carrier frequency | 10 kHz offset from carrier | ?106 dBc (1 Hz) |
| 100 kHz offset from carrier | ?115 dBc (1 Hz) | |
| 1 MHz offset from carrier | ?134 dBc (1 Hz) | |
| Total measurement uncertainty | f < 7 GHz | 0.4 dB |
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rohde & Schwarz is under license. CDMA2000 is a registered trademark of the Telecommunications Industry Association (TIA - USA).
"WiMAX Forum" is a registered trademark of the WiMAX Forum. "WiMAX," the WiMAX Forum logo, "WiMAX Forum Certified," and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum.
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Hardware Options
- FSV-B3 AM/FM Audio Demodulator
- FSV-B4 OCXO, Precision Reference Frequency
- FSV-B4 OCXO, Precision Reference Frequency Stability
- FSV-B5 Additional Interfaces (IF/video output, AUX port, trigger output, two additional USB ports)
- FSV-B17 Digital Baseband Interface
- FSVR-B18 Solid-State Drive (removable hard drive)
- FSVR-B19 Spare Hard Drive (removable hard drive)
- FSV-B21 LO/IF Ports for External Mixer
- FSV-B22 Preamplifier, 9 kHz to 4 GHz/7 GHz
- FSV-B24 Preamplifier, 9 kHz to 13.6 GHz
- FSV-B24 Preamplifier, 9 kHz to 30 GHz
- FSV-B24 Preamplifier, 9 kHz to 40 GHz
- FSV-B25 Electronic Attenuator (1 dB steps)
- RT-ZA9 N(m) Adapter for R&S?RT-Zxx oscilloscope probes
for use with signal and spectrum analyzers
Software Options
- FSV-K8 Bluetooth?/EDR Measurement Application
- FSV-K9 Power Sensor Support (power measurement with the R&S?NRPZxx power sensors)
- FSV-K54 EMI Measurement Application
Finding, classifying and eliminating electromagnetic interference
- FSV-K72 3GPP BS (DL) Analysis, incl. HSDPA and HSDPA
3GPP transmitter measurements with FSW and FSV signal and spectrum analyzer
- FSV-K73 3GPP UE (UL) Analysis, incl. HSUPA
3GPP transmitter measurements with FSW and FSV signal and spectrum analyzer
- FSV-K76 TD-SCDMA BS Measurements
- FSV-K77 TD-SCDMA UE Measurements
- FSV-K82 CDMA2000? BS (DL) Analysis
- FSV-K83 CDMA2000? MS (UL) Measurements
- FSV-K84 1xEV-DO BS (DL) Analysis
Transmitter measurement on 3GPP2 signals with Signal Analyzer and Spectrum Analyzers FSV and FSW
- FSV-K85 1xEV-DO MS (UL) Measurements
Transmitter measurement on 3GPP2 signals with Spectrum Analyzers FSW/FSV
- FSV-K100 EUTRA/LTE BS Analysis
FDD measurement software for analysis of LTE FDD downlink signals
- FSV-K101 EUTRA/LTE UE Analysis
FDD measurement software for analysis of LTE FDD up link signals
- FSV-K102 EUTRA/LTE Downlink MIMO Analysis
FDD measurement software for analysis of LTE downlink MIMO signals (requires FSV-K100 or FSV-K104)
- FSV-K104 EUTRA/LTE TDD Downlink Analysis
FDD measurement software for analysis of LTE TDD downlink signals
- FSV-K105 EUTRA/LTE TDD Uplink Analysis
FDD measurement software for analysis of LTE TDD uplink signals
Analysis Software
For Signal Analyzers and Oscilloscopes from Rohde & Schwarz
For Signal Analyzers and Oscilloscopes from Rohde & Schwarz
- FS-K130PC Distortion Analysis Software
Amplifier modeling and linearization
User-friendly software for EMI measurements
Recommended Extras
For mounting a 7/8 19" housing 4 RU high in a standard 19" rack
