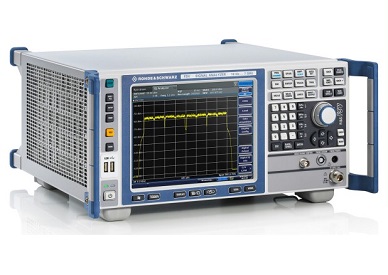

The FSV is an exceptionally fast and versatile signal and spectrum analyzer for performance-oriented, cost-conscious users working in the development, production, installation and servicing of RF systems. In development applications, the FSV excels due to its outstanding RF properties, a 160 MHz signal analysis bandwidth that is unmatched in its class, and a wide range of analysis packages for analog modulation methods as well as wireless and wideband communications standards. The FSV is five times faster than comparable signal and spectrum analyzers and provides measurement routines that are optimized for speed and high data-throughput. This is a crucial advantage in production applications. With its touchscreen for easy operation, compact dimensions, low weight and direct support of power sensors, the FSV is the best possible choice for installation and service work.
02) 6264.1921
HOME > 제조사별 >
FSV (스펙트럼 분석기)
주요 스펙
- FSV4
-
- :10 Hz to 4 GHz
- FSV7
-
- :10 Hz to 7 GHz
- FSV13
-
- :10 Hz to 13.6 GHz
- FSV30
-
- :10 Hz to 30 GHz
- FSV40
-
- :10 Hz to 40 GHz
Brief Description
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
주요사양
- 주파수 범위 : 10 Hz to 4 / 7 / 13.6 / 30 / 40 GHz
- 160 MHz의 광대역 분석 대역폭 지원 (I/Q Demodulation Bandwidth)
- 1 dB Step Attenuator, 프리앰프 내장
- TOI : 16 dBm Typ.
- 신호분석 포멧: OFDM, FSK, MSK, PSK, QAM, GFSK, 8VSB, etc.
- EMI 측정 지원
- 동급 최고모델 대비 5배 이상 빠른 분석 속도
- LTE, WiMAX, WLAN11n, 규격의 MIMO 신호 분석
- 주요 지원 통신 규격:
LTE, WiMAX, WLAN, a/b/g/n/p/ac, HSPA+, WCDMA, CDMA, 1xEVDO, GSM/EDGE evolution
- 터치스크린(Touch screen) 적용
- 동급장비 대비 경량으로 현장 사용 용이 (내장 베터리 장착 가능으로 전원공급 없이 사용 가능)
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Specifications
| Frequency | ||
| Frequency range | FSV4 | 10 Hz to 4 GHz |
| FSV7 | 10 Hz to 7 GHz | |
| FSV13 | 10 Hz to 13.6 GHz | |
| FSV30 | 10 Hz to 30 GHz | |
| FSV40 | 10 Hz to 40 GHz | |
| Aging of frequency reference | 1×10-6 | |
| with FSV-B4 option | 1×10-7 | |
| Resolution/bandwidths | ||
| Resolution bandwidths | standard sweep | 1 Hz to 10 MHz |
| standard sweep, zero span | 1 Hz to 10 MHz, 20 MHz, 28 MHz1) 40 MHz optional | |
| FFT sweep | 1 Hz to 300 kHz | |
| channel filter | 100 Hz to 5 MHz | |
| EMI filter | 200 Hz, 9 kHz, 120 kHz, 1 MHz | |
| Video filter | 1 Hz to 10 MHz, 20 MHz, 28 MHz, 40 MHz1) | |
| Signal analysis bandwidth | 28 MHz1) | |
| with FSV-B70 option | 40 MHz2) | |
| with FSV-B160 option | 160 MHz3) | |
| Displayed average noise level (DANL) | ||
| DANL (1 Hz bandwidth) | 1 GHz | ?152 dBm, ?155 dBm typ. |
| 3 GHz | ?150 dBm, ?153 dBm typ. | |
| 7 GHz | ?146 dBm, ?149 dBm typ. | |
| 13 GHz | ?148 dBm, ?151 dBm typ. | |
| 30 GHz | ?144 dBm, ?147 dBm typ. | |
| 40 GHz | ?136 dBm, ?139 dBm typ. | |
| With preamplifier, FSV-B22 option |
1 GHz | ?162 dBm, ?165 dBm typ. |
| 3 GHz | ?160 dBm, ?163 dBm typ. | |
| 7 GHz | ?156 dBm, ?159 dBm typ. | |
| With preamplifier, FSV-B24 option |
10 GHz | ?164 dBm, ?167 dBm typ. |
| 30 GHz | ?159 dBm, ?162 dBm typ. | |
| 40 GHz | ?154 dBm, ?156 dBm typ. | |
| Intermodulation | ||
| Third-order intercept (TOI) | f < 3.6 GHz | +13 dBm, +16 dBm typ. |
| 3.6 GHz to 30 GHz | +15 dBm, +18 dBm typ. | |
| Dynamic range WCDMA ACLR | ||
| without noise compensation | 70 dB | |
| with noise compensation | 73 dB | |
| Phase noise | ||
| 1 GHz carrier frequency | 10 kHz offset from carrier | ?106 dBc (1 Hz), ?110 dBc (1 Hz) typ. |
| 100 kHz offset from carrier | ?115 dBc (1 Hz) | |
| 1 MHz offset from carrier | ?134 dBc (1 Hz) | |
| Total measurement uncertainty | ||
| 3.6 GHz | 0.29 dB | |
| 7 GHz | 0.39 dB | |
| FSV-B9 tracking generator | ||
| Frequency range | FSV 4 | 100 kHz to 4 GHz |
| FSV 7 / 13 / 30 / 40 | 100 kHz to 7 GHz | |
| Frequency offset | up to 1 GHz | |
| Level range | ?60 dBm to 0 dBm | |
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Hardware Options
- FSV-B1 Ruggedized Housing
- FSV-B3 AM/FM Audio Demodulator
- FSV-B4 OCXO, Precision Reference Frequency
- FSV-B4 OCXO, Precision Reference Frequency Stability
- FSV-B5 Additional Interfaces (IF/video output, AUX port, trigger output, two additional USB ports)
- FSV-B9 Tracking Generator 100 kHz to 4 GHz / 7 GHz
- FSV-B10 External Generator Control
- FSV-B17 Digital Baseband Interface
- FSVR-B18 Solid-State Drive (removable hard drive)
- FSVR-B19 Spare Hard Drive (removable hard drive)
- FSV-B21 LO/IF Ports for External Mixer
- FSV-B22 Preamplifier, 9 kHz to 4 GHz/7 GHz
- FSV-B24 Preamplifier, 9 kHz to 13.6 GHz
- FSV-B24 Preamplifier, 9 kHz to 30 GHz
- FSV-B24 Preamplifier, 9 kHz to 40 GHz
- FSV-B25 Electronic Attenuator (1 dB steps)
- FSV-B30 DC Power Supply for 12 V supply voltage
- FSV-B32 Lithium-Ion Battery Pack
- FSV-B34 Charger for FSV-B32 lithium-ion battery pack
- FSV-B70 40 MHz Analysis Bandwidth
- FSV-B160 160 MHz Analysis Bandwidth
- RT-ZA9 N(m) Adapter for R&S?RT-Zxx oscilloscope probes for use with signal and spectrum analyzers
Software Options

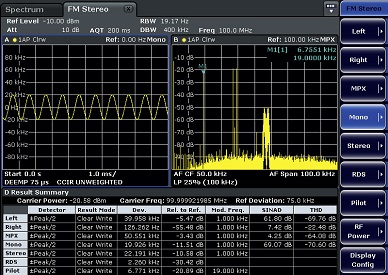

- FSV-K7 Anaolg Modulation Analysis (AM/FM/φM)
- FSV-K8 Bluetooth?/EDR Measurement Application
- FSV-K9 Power Sensor Support (power measurement with the R&S?NRPZxx power sensors)
- FSV-K14 Spectrogram Measurements

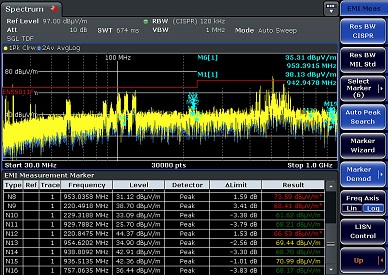

- FSV-K54 EMI Measurement Application Finding, classifying and eliminating electromagnetic interference
- FSV-K72 3GPP BS (DL) Analysis, incl. HSDPA and HSDPA
3GPP transmitter measurements with FSW and FSV signal and spectrum analyzer
- FSV-K73 3GPP UE (UL) Analysis, incl. HSUPA
3GPP transmitter measurements with FSW and FSV signal and spectrum analyzer
- FSV-K76 TD-SCDMA BS Measurements
- FSV-K77 TD-SCDMA UE Measurements
- FSV-K82 CDMA2000? BS (DL) Analysis
- FSV-K83 CDMA2000? MS (UL) Measurements
- FSV-K84 1xEV-DO BS (DL) Analysis
Transmitter measurement on 3GPP2 signals with Signal Analyzer and Spectrum Analyzers FSV and FSW
- FSV-K85 1xEV-DO MS (UL) Measurements
Transmitter measurement on 3GPP2 signals with Spectrum Analyzers FSW/FSV
- FSV-K100 EUTRA/LTE BS Analysis
FDD measurement software for analysis of LTE FDD downlink signals
- FSV-K101 EUTRA/LTE UE Analysis
FDD measurement software for analysis of LTE FDD up link signals
- FSV-K102 EUTRA/LTE Downlink MIMO Analysis
FDD measurement software for analysis of LTE downlink MIMO signals (requires FSV-K100 or FSV-K104)
- FSV-K104 EUTRA/LTE TDD Downlink Analysis
FDD measurement software for analysis of LTE TDD downlink signals
- FSV-K105 EUTRA/LTE TDD Uplink Analysis
FDD measurement software for analysis of LTE TDD uplink signals
Analysis Software
- VSE Vector Signal Explorer Software
- FS-K96 OFDM Vector Signal Analysis Software
For Signal Analyzers and Oscilloscopes from Rohde & Schwarz
For Signal Analyzers and Oscilloscopes from Rohde & Schwarz
- FS-K130PC Distortion Analysis Software
Amplifier modeling and linearization
Transmitter measurements on LTE signals
FS-K100PC/ FS-K101PC/ FS-K102PC/ FS-K103PC/ FS-K104PC/ FS-K105PC
FS-K100PC/ FS-K101PC/ FS-K102PC/ FS-K103PC/ FS-K104PC/ FS-K105PC
User-friendly software for EMI measurements
Recommended Extras
For mounting a 7/8 19" housing 4 RU high in a standard 19" rack
