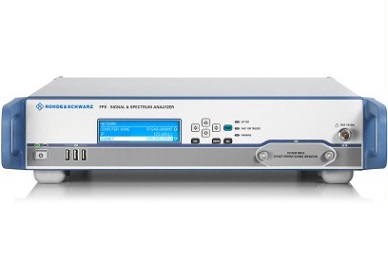

FPS (컴팩트 스펙트럼 분석기)

주요 스펙

Frequency Range
  • :10 Hz to 4 / 7 / 13.6 / 30 / 40
DANL
  • :-167 dBm to
TOI
  • :+18 dBm
Resolution BW
  • :1 Hz to 10 MHz
SSB Phase Noise
  • :-134 dBc (1Hz)
Brief Description
The FPS is an exceptionally fast and compact signal and spectrum analyzer for performance oriented users.
In production and in monitoring systems, only 2 HU of rack space are required ? a reduction of 50 % compared with traditional instruments

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com


Key Fact
 - Frequency range up to 4/7/13.6/30/40 GHz
 - Up to 160 MHz signal analysis bandwidth
 - 0.4 dB level measurement uncertainty up to 7 GHz
 - Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WLAN, vector signal analysis
 - ?110 dBc (1 Hz) phase noise at 10 kHz frequency offset
 - +15 dBm third-order intercept (TOI)
 - ?155 dBm displayed average noise level (DANL) at 1 GHz in 1 Hz bandwidth
 - Removable hard disk for applications where security is a concern


Features & Benefits
 - High throughput for efficient production
        Up to five times faster than other signal and spectrum analyzers
        Fast switchover between instrument setups
        Fast and accurate measurement results
        Reduced volume in test racks
        Customized test routines for production applications
        Efficient operation via remote control

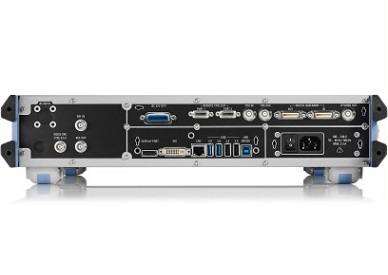

 - Connectivity
        Numerous interfaces that can be integrated into any environment
 - Ready for tomorrow’s standards
        Fully digital backend ensures high measurement accuracy and excellent repeatability
        160 MHz signal analysis bandwidth, suitable for WLAN IEEE 802.11ac
        Easy transition to the next generation in signal analysis
        Always up-to-date

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com

FSP 사양 (Specifications)
Frequency
Frequency range FPS4 10 Hz to 4 GHz
FPS7 10 Hz to 7 GHz
FPS13 10 Hz to 13.6 GHz
FPS30 10 Hz to 30 GHz
FPS40 10 Hz to 40 GHz
Aging of frequency reference 1×10-6 per year
with FPS-B4 option 1×10-7 per year
Bandwidths
Resolution bandwidth standard sweep 1 Hz to 10 MHz
standard sweep, zero span 1 Hz to 10 MHz, 20 MHz, 28 MHz
40 MHz optional
FFT sweep 1 Hz to 300 kHz
channel filter 100 Hz to 5 MHz
Video filter 1 Hz to 10 MHz, 20 MHz, 28 MHz, 40 MHz
Signal analysis bandwidth 28 MHz
with FPS-B40 option 40 MHz
with FPS-B160 option 160 MHz
Displayed average noise level (DANL)
DANL (1 Hz bandwidth) 1 GHz ?152 dBm, ?155 dBm (typ.)
3 GHz ?150 dBm, ?153 dBm (typ.)
7 GHz ?146 dBm, ?149 dBm (typ.)
13.6 GHz ?148 dBm, ?151 dBm (typ.)
30 GHz ?144 dBm, ?147 dBm (typ.)
With preamplifier, FPS-B22 option 1 GHz ?162 dBm, ?165 dBm (typ.)
3 GHz ?160 dBm, ?163 dBm (typ.)
7 GHz ?156 dBm, ?159 dBm (typ.)
With preamplifier, FPS-B24 option 13.6 GHz ?164 dBm, ?167 dBm (typ.)
30 GHz ?159 dBm, ?161 dBm (typ.)
Intermodulation
Third-order intercept (TOI) f < 3.6 GHz +13 dBm, +16 dBm (typ.)
3.6 GHz to 30 GHz +15 dBm,+18 dBm (typ.)
Dynamic range WCDMA ACLR without noise compensation 70 dB
with noise compensation 73 dB
Phase noise
1 GHz carrier frequency 10 kHz offset from carrier ?106 dBc (1 Hz), ?110 dBc (1 Hz) (typ.)
100 kHz offset from carrier ?115 dBc (1 Hz)
1 MHz offset from carrier ?134 dBc (1 Hz)
Total measurement uncertainty 3.6 GHz 0.28 dB
7 GHz 0.39 dB
13.6 GHz 1 dB
30 GHz 1.32 dB

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com

Hardware Options
  • R&S?FPS-B0 Order No. 1321.4310.02
    Rear Panel RF Input
  • R&S?FPS-B4 Order No. 1321.4291.02
    OCXO, Precision Refernce Frequency
  • R&S?FPS-B10 Order No. 1321.4256.02
    External Generator Control
  • R&S?FPS-B11 Order No. 1326.5467.30
    YIG Filter Bypass, for R&S?FPS 30
  • R&S?FPS-B11 Order No. 1326.5467.40
    YIG Filter Bypass, for R&S?FPS 40
  • R&S?FPS-B18 Order No. 1321.4304.02
    Spare Solid State Disk (SSD, removable hard disk)
  • R&S?FPS-B22 Order No. 1321.4027.02
    Preamplifier, 9 kHz to 4 GHz/7 GHz
  • R&S?FPS-B24 Order No. 1321.4279.13
    RF Preamplifier, 9 kHz to 13.6 GHz
  • R&S?FPS-B24 Order No. 1321.4279.30
    RF Preamplifier, 9 kHz to 30 GHz
  • R&S?FPS-B24 Order No. 1321.4279.40
    RF Preamplifier, 9 kHz to 40 GHz
  • R&S?FPS-B25 Order No. 1321.4033.02
    Electronic Attenduator, 1dB steps
  • R&S?FPS-B28V Order No. 1326.5996.02
    Noise Source Control
  • R&S?FPS-B40 Order No. 1321.4040.02
    40 MHz Anaysis Bandwidth
  • R&S?FPS-B160 Order No. 1321.4285.02
    160 MHz Analysis Bandwidth, for R&S?FPS4 and R&S?FPS7
  • R&S?FPS-B160 Order No. 1321.4285.13
    160 MHz Analysis Bandwidth, for R&S?FPS13
  • R&S?FPS-B160 Order No. 1321.4285.40
    160 MHz Analysis Bandwidth, for R&S?FPS30 und R&S?FPS40
  • R&S?FPS-B478 Order No. 1321.4262.02
    Rack Mount, preinstalled
Firmware/Software
  • R&S?FPS-K7 Order No. 1321.4079.02
    Analog Modulation Analysis (AM/FM/φM)
  • R&S?FPS-K10 Order No. 1321.4091.02
    Analysis of GSM, EDGE and EDGE Evolution Signals
  • R&S?FPS-K30 Order No. 1321.4104.02
    Noise Figure and Gain Measurements
  • R&S?FPS-K33 Order No. 1326.6092.02
    Security Write Protection
  • R&S?FPS-K40 Order No. 1321.4110.02
    Phase Noise Measurements
  • R&S?FPS-K70 Order No. 1321.4127.02
    Vector Signal Analysis
  • R&S?FPS-K72 Order No. 1321.4133.02
    Analysis of 3GPP FDD Base Station Signals incl. HSPA+
  • R&S?FPS-K73 Order No. 1321.4140.02
    Analysis of 3GPP FDD UE incl. HSPA+
  • R&S?FPS-K76 Order No. 1321.4379.02
    TD-SCDMA BS Measurements
  • R&S?FPS-K77 Order No. 1321.4385.02
    TD-SCDMA UE Measurements
  • R&S?FPS-K82 Order No. 1321.4156.02
    CDMA2000? BS Measurements
  • R&S?FPS-K83 Order No. 1321.4162.02
    CDMA2000? MS Measurements
  • R&S?FPS-K84 Order No. 1321.4179.02
    1xEV-DO BS Measurements
  • R&S?FPS-K85 Order No. 1321.4185.02
    1xEV-DO MS Measurements
  • R&S?FPS-K91 Order No. 1321.4191.02
    Analysis of WLAN IEEE 802.11a/b/g/j Signals
  • R&S?FPS-K91n Order No. 1321.4204.02
    Extension of R&S?FPS-K91 to IEEE802.11n
    Requires R&S?FPS-K91 and R&S?FPS-B40 or R&S?FPS-B160
  • R&S?FPS-K91p Order No. 1321.4391.02
    Extension of R&S?FPS-K91 to IEEE802.11p
    Requires R&S?FPS-K91
  • R&S?FPS-K91ac Order No. 1321.4210.02
    Extension of R&S?FPS-K91 to IEEE802.11ac
    Requires R&S?FPS-K91 and R&S?FPS-B160
  • R&S?FPS-K100 Order No. 1321.4227.02
    Analysis of EUTRA/LTE FDD Downlink Signals
  • R&S?FPS-K101 Order No. 1321.4340.02
    Analysis of EUTRA/LTE FDD Uplink Signals
  • R&S?FPS-K102 Order No. 1321.4233.02
    EUTRA/LTE Downlink MIMO Measurements
    Requires R&S?FPS-K100 or R&S?FPS-K104
  • R&S?FPS-K103 Order No. 1321.4356.02
    EUTRA/LTE-Advanced Uplink Measurements
    Requires R&S?FPS-K101 or R&S?FPS-K105
  • R&S?FPS-K104 Order No. 1321.4233.02
    Analysis of EUTRA/LTE TDD Downlink Signals
  • R&S?FPS-K105 Order No. 1321.4362.02
    Analysis of EUTRA/LTE TDD Uplink Signals
