| 주파수 | ||
| Frequency range | base unit | 5 kHz to 2 GHz |
| 주파수 범위 | with FPH-B3 option | 5 kHz to 3 GHz |
| with FPH-B3 and FPH-B4 option installed | 5 kHz to 4 GHz | |
| 주파수 분해능 | 1 Hz | |
| 측정 대역폭 분해능 | 1 Hz to 3 MHz in 1/3 sequence | |
| Spectral purity SSB phase noise | f = 500 MHz | |
| 30 kHz | < ?88 dBc(1 Hz), typ. ?95 dBc(1 Hz) | |
| 100 kHz | < ?98 dBc(1 Hz), typ.?105 dBc(1 Hz) | |
| 1 MHz | < ?118 dBc(1 Hz), typ. ?125 dBc(1 Hz) | |
| DANL | 0 dB RF attenuation, 50 Ω termination, RBW = 100 Hz, VBW = 10 Hz, sample detector, log scaling, tracking generator off, normalized to 1 Hz | |
| 주파수 | preamplifier = off | |
| 1 MHz to 10 MHz | < -135 dBm, typ. -142 dBm | |
| 10 MHz to 1 GHz | < -142 dBm, typ. -146 dBm | |
| 1 GHz to 4 GHz | < -140 dBm, typ. -44 dBm | |
| 주파수 | preamplifier = on | |
| 1 MHz to 10 MHz | < -150 dBm, typ. -160 dBm | |
| 10 MHz to 3 GHz | < -158 dBm, typ. -163 dBm | |
| 3 GHz to 4 GHz | < -156 dBm, typ. -161 dBm | |
| Third-order intercept (IP3) | intermodulation-free dynamic range, signal level 2 × -20 dBm, RF attenuation = 0 dB, RF preamplifier = off | |
| f = 1 GHz | +7 dBm (meas.) | |
| f = 2.4 GHz | +10 dBm (meas.) | |
| 종합 측정 불확도 | 95 % confidence level, +20 °C to +30 °C, SNR > 16 dB, 0 dB to -50 dB below reference level, RF attenuation auto | |
| 10 MHz ≤ f ≤ 4 GHz | < 1.25 dB, typ. 0.5 dB | |
| 디스플레이 | ||
| 분해능 | WVGA, 800 × 480 픽셀 | |
| 베터리 | 리튬이온베터리 | |
| 베터리 용량 | HA-Z306 | 72 Wh |
| 전압 | 11.25 V | |
| 사용시간 | HA-Z306 | 8 h |
| 크기 | W × H × D | 202 mm × 294 mm × 76 mm (8.0 in × 11.6 in × 3 in) |
| 무게 | 2.5 kg (5.5 lb) | |
02) 6264.1921
HOME > 제조사별 >
FPH (휴대용 스펙트럼 분석기)
주요 스펙
- FPH
-
- :5 kHz to 2 GHz
- FPH-B3
-
- :5 kHz to 3 GHz
- FPH-B4
-
- :9 kHz to 4 GHz
- DANL
-
- :-163 dBm (pre-amp on)
- 소비자가격
-
- :7,070,000원 부터 ~

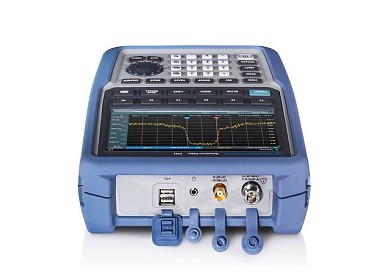

FPH 휴대용 스펙트럼 분석기

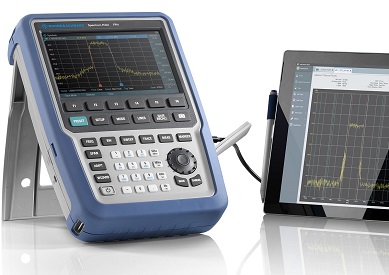

Spectrum Rider는 견고하고 매력적인 디자인의 다기능의 사용자 친화적 인 계측기입니다. 기본 주파수 범위는 5 kHz to 2 GHz입니다. 키-코드를 통해 3 GHz 또는 4GHz로 쉽게 측정 주파수 확장 할 수 있습니다.
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
주요사양
- 주파수 범위는 5 kHz에서 2 / 3 / 4 GHz입니다. 키 코드를 통해 업그레이드
- 견고한 RF 성능
- 배터리로 8 시간 동작가능, 백라이트 키패드, 빠른 부팅 시간,
무반사 디스플레이, 소형 풋 프린트, 견고한 하우징
- 터치 및 제스처 작동이 가능한 대형 컬러 디스플레이
- 항공 우주 및 방위, 무선 통신, 방송, 스펙트럼 규제 기관 및 교육과 같은
다양한 산업 분야의 기능 및 옵션
- 소프트웨어 키 코드를 통해 모든 옵션을 쉽고 비용 효율적으로 업그레이드
- 기본 3년 무상보증 (배터리 1 년)
- 기본 3년 무상보증 (배터리 1 년)
특징 및 장점

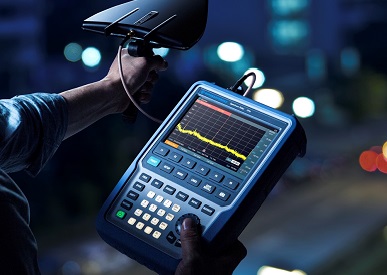

현장에서 뛰어나다.
- 가볍고 작고 긴 배터리 수명
- 다양한 액세서리
- 옥외용으로 설계된 무반사 디스플레이 및 백라이트 키패드
- MIL-PRF 28800F 클래스 2와 함께 견고 함
연구실 측정에 우수함
- 실험실에서의 진단을위한 견고한 RF 성능

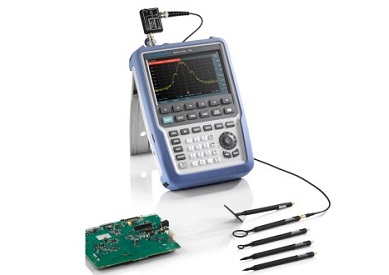

- 근거리 필드 프로브 옵션을 사용한 EMI 디버깅
- 근거리 필드 프로브 옵션을 사용한 EMI 디버깅
사용자에게 친숙한 인터페이스
- 터치 스크린에서 스마트 폰과 유사한 동작으로 사용하기 쉽습니다.
- 구성 개요 메뉴
- 채널 테이블을 사용하여 주파수 설정
- 소프트웨어 업그레이드가 가능한 주파수 범위
- 다양한 산업, R & D 및 교육 분야의 다용도 활용
- 소프트웨어 키 코드를 통한 모든 옵션의 손쉬운 업그레이드

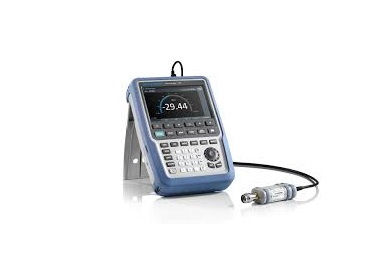

- 전력 센서로 전력 측정
- 내부 채널 전력계
- 파워 센서로 펄스측정
- 단순 측정
- 재현성 있고 빠른 측정
- 다양한 산업, R & D 및 교육 분야의 다용도 활용
- 소프트웨어 키 코드를 통한 모든 옵션의 손쉬운 업그레이드
- 전력 센서로 전력 측정
- 내부 채널 전력계
- 파워 센서로 펄스측정
- 단순 측정
- 재현성 있고 빠른 측정
- 측정 후 처리 및 문서화를위한 Instrument View 소프트웨어
- LAN 또는 USB를 통한 원격 제어
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
FPH 시리즈 스펙트럼 분석기 사양 (Specifications)
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
FSH 시리즈 휴대용 스펙트럼 분석기 옵션사항
하드웨어/소프트웨어 옵션
- FPH-B3 Spectrum Analyzer Frequency Upgrade 2 GHz to 3 GHz
- FPH-B4 Spectrum Analyzer Frequency Upgrade 3 GHz to 4 GHz requires FPH-B3
- FPH-B22 Spectrum Analyzer Preamplifier
- FPH-K7 Analog Modulation Analysis AM/FM
- FPH-K9 Power Sensor Support
- FPH-K19 Channel Power Meter
- FPH-K29 Pulse Measurements with Power Sensor
악세서리 옵션
- HA-Z340 GPS Receiver for R&S?Spectrum Rider
- HA-Z302 Car Adapter for cigarette lighter. The car adapter is suitable for both the instrument
and the HA-Z303 external battery charger. Reduces instrument rating to CAT III
300 V / CAT II 600 V during charging.
- HA-Z303 Battery Charger for HA-Z306. The battery charger is to be used for charging an additional
battery outside the instrument. The internal battery is charged by the instrument itself.
- HA-Z306 Lithium Ion Battery Pack, 6.4 Ah
- HA-Z220 Carrying Bag
soft carrying bag
- RTH-Z4 Hard Shell Protective Carrying Case
- FSH-Z36 Headphones
- TS95A16 GSM/UMTS/CDMA Antenna
with magnetic mount, 850/900/1800/1900/2100 band, N connector
- HA-Z350 Logarithmic Periodic OEM Antenna, 700 MHz to 4 GHz
- FSH-Z320 RF Cable (length 1 m), N male/N female
for FSH-K41 option, DC to 8 GHz
- FSH-Z321 RF Cable (length 3 m), N male/N female
for FSH-K41 option, DC to 8 GHz
- RAM Matching Pad 50/75 Ω
bidirectional, 0 Hz to 2.7 GHz,
N (f)/N (m) connectors, load capacity 2 W, L section
- RAZ Matching Pad 50/75 Ω, series resistor 25 Ω
- FSH-Z38 Matching Pad 50/75 Ω, L section, N to BNC bidirectional,
0 Hz to 1 GHz, BNC female/N male connectors, load capacity 1 W
- RDL50 High-Power Attenuator, 50 W
0 Hz to 6 GHz, 20 dB
- RBU100 High-Power Attenuator, 100 W
0 Hz to 2 GHz
for E and H near-field emission measurements with test receivers and spectrum analyzers
- HA-Z211 Spare USB Cable
- HA-Z210 Spare LAN Cable
- HA-Z301 Spare Power Supply, incl. mains plug for EU, GB,US, AUS, CH
Sensors
Cost-effective power measurement solution for production
Measurement range: -60 dBm to +20 dBm,
Frequency range: 10 MHz to 8 GHz,
N connector
N connector
Cost-effective power measurement solution for production
Measurement range: -60 dBm to +20 dBm,
Frequency range: 10 MHz to 18 GHz,
N connector
Frequency range: 10 MHz to 18 GHz,
N connector
Fast, accurate and packed with features for CW and modulated signals
Measurement range: -57 dBm to +33 dBm,
Frequency range: 10 MHz to 18 GHz,
N connector
Frequency range: 10 MHz to 18 GHz,
N connector
Fast, accurate and packed with features for CW and modulated signals
Measurement range: -47 dBm to +42 dBm,
Frequency range: 10 MHz to 18 GHz,
N connector
Frequency range: 10 MHz to 18 GHz,
N connector
Fast, accurate and packed with features for CW and modulated signals
Measurement range: -42 dBm to +45 dBm,
Frequency range: 10 MHz to 18 GHz,
N connector
Frequency range: 10 MHz to 18 GHz,
N connector
Fast, accurate and packed with features for CW and modulated signals
Measurement range: -67 dBm to +20 dBm,
Frequency range: 50 MHz to 40 GHz,
2.92 mm connector
Frequency range: 50 MHz to 40 GHz,
2.92 mm connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm
Frequency range: DC to 18 GHz
N connector
Frequency range: DC to 18 GHz
N connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm,
Frequency range: DC to 33 GHz,
3.5 mm connector
Frequency range: DC to 33 GHz,
3.5 mm connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm,
Frequency range: DC to 40 GHz,
2.92 mm connector
Frequency range: DC to 40 GHz,
2.92 mm connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm,
Frequency range: DC to 50 GHz,
2.4 mm connector
Frequency range: DC to 50 GHz,
2.4 mm connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm,
Frequency range: DC to 67 GHz,
1.85 mm connector
Frequency range: DC to 67 GHz,
1.85 mm connector
Most accurate power measurements for reference applications and use in calibration labs
Measurement range: -35 dBm to +20 dBm,
Frequency range: DC to 110 GHz,
1.00 mm connector
Frequency range: DC to 110 GHz,
1.00 mm connector
Fast, accurate and packed with features for CW and modulated signals
Measurement range: -67 dBm to +20 dBm,
Frequency range: 50 MHz to 50 GHz,
2.4 mm connector
Frequency range: 50 MHz to 50 GHz,
2.4 mm connector
Time domain analysis and automatic pulse analysis for radar applications and universal use
Measurement range: -60 dBm to +20 dBm,
Frequency range: 50 MHz to 18 GHz,
N connector
Frequency range: 50 MHz to 18 GHz,
N connector
- NRP-Z85 Wideband Power Sensor
Time domain analysis and automatic pulse analysis for radar applications and universal use
Measurement range: -60 dBm to +20 dBm,
Frequency range: 50 MHz to 40 GHz,
2.92 mm connector
Frequency range: 50 MHz to 40 GHz,
2.92 mm connector
Time domain analysis and automatic pulse analysis for radar applications and universal use
Measurement range: -60 dBm to +20 dBm,
Frequency range: 50 MHz to 40 GHz,
2.4 mm connector
Frequency range: 50 MHz to 40 GHz,
2.4 mm connector
Time domain analysis and automatic pulse analysis for radar applications and universal use
Measurement range: -60 dBm to +20 dBm,
Frequency range: 50 MHz to 44 GHz,
2.4 mm connector
Frequency range: 50 MHz to 44 GHz,
2.4 mm connector
- NRP-Z91 Average Power Sensor
Accurate average power measurements for EMC applications
Measurement range: -67 dBm to +23 dBm,
Frequency range: 9 kHz to 6 GHz,
N connector
Frequency range: 9 kHz to 6 GHz,
N connector
Accurate average power measurements for EMC applications
Measurement range: -57 dBm to +33 dBm,
Frequency range: 9 kHz to 6 GHz,
N connector
Frequency range: 9 kHz to 6 GHz,
N connector
For USB operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 8 GHz
N (m) connector
Frequency range: 10 MHz to 8 GHz
N (m) connector
For USB and LAN operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 8 GHz
N (m) connector
Frequency range: 10 MHz to 8 GHz
N (m) connector
For USB operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 18 GHz
N (m) connector
Frequency range: 10 MHz to 18 GHz
N (m) connector
For USB and LAN operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 18 GHz
N (m) connector
Frequency range: 10 MHz to 18 GHz
N (m) connector
For USB operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 33 GHz
3.5 mm (m) connector
3.5 mm (m) connector
For USB and LAN operation
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 33 GHz
3.5 mm (m) connector
Frequency range: 10 MHz to 33 GHz
3.5 mm (m) connector
For USB operation
Measurement range: 100 pW to 100 mW
Frequency range: 50 MHz to 40 GHz
2.92 mm (m) connector
2.92 mm (m) connector
For USB and LAN operation
Measurement range: 100 pW to 100 mW
Frequency range: 50 MHz to 40 GHz
2.92 mm (m) connector
2.92 mm (m) connector
For USB operation
Measurement range: 100 pW to 100 mW
Frequency range: 50 MHz to 50 GHz
2.4 mm (m) connector
Frequency range: 50 MHz to 50 GHz
2.4 mm (m) connector
For USB and LAN operation
Measurement range: 100 pW to 100 mW
Frequency range: 50 MHz to 50 GHz
2.4mm (m) connector
2.4mm (m) connector
TVAC compliant USB and LAN Power Sensor
Measurement range: 100 pW to 200 mW
Frequency range: 10 MHz to 33 GHz
Frequency range: 10 MHz to 33 GHz
3.5 mm (m) connector
Recommended Extras
- NRP-Z4 USB Adapter (passive)
For all NRP-Z sensors.
The NRP-Z4 passive USB adapter provides all basic functions, as it handles
The NRP-Z4 passive USB adapter provides all basic functions, as it handles
the transmission of settings and measurement data as well as the power supply
of the sensor via the USB bus.
Available cable lenghths: Available cable lengths: 2.0m, 0.5m and 0.15m
Available cable length for panel-mount: 1m
Available cable lenghths: Available cable lengths: 2.0m, 0.5m and 0.15m
Available cable length for panel-mount: 1m
- NRP-ZKU USB Interface Cable, length: 1.5 m
to connect NRPxxS/SN sensors to the Spectrum Rider
