- 능동 및 수동 소자 측정에 적합
- 최소 50 ns의 펄스를 분석할 수 있는 펄스프로파일 가능
- Arbitrary Frequency Conversion 측정
- 140 dB 이상의 넓은 Dynamic range
- Direct Access 포트를 통한 테스트 구성

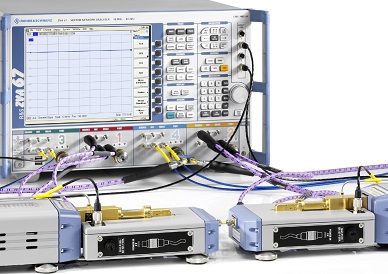

- 컨버터를 이용해 500GHz 까지 지원
?구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482?

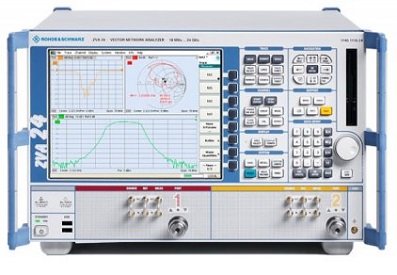

Brief Description
- The R&S ZVA series is an ideal choice for demanding measurements in the lab and in production from filter measurements requiring maximum
dynamic range to linear and nonlinear measurements on amplifiers and mixers as well as on receivers and transceivers.
The R&S?ZVA has set milestones for the most challenging applications:
- First VNA with four internal sources up to 67 GHz for fast two-tone measurements on amplifiers and mixers
- First VNA up to 67 GHz that generates phase-coherent signals
- First VNA with IF bandwidths up to 30 MHz for pulsed measurements on amplifiers and mixers up to 110 GHz
Instrument concept?
The R&S ZVA contains one source per each pair of ports. In addition four source models are available for R&S ZVA24 and R&S ZVA40.
The R&S ZVA67 has one source per port. A special switch arrangement allows parallel signal output, i. e. signals can be output to the DUT via
all ports at the same time. In addition, direct generator and receiver access is provided optionally. This concept offers many advantages with
regard to measurement speed and functionality.
The above design features make the R&S ZVA an analyzer of unprecedented performance and functionality, which is especially true for the four-port model.
Following are a few highlights:
- Use of the second source as an LO for fast mixer measurements
- Generation of a swept two-tone signal for fast intermodulation measurements versus frequency or power
- True differential measurements on balanced DUTs
- Parallel signal output and measurement at the test ports for measuring two or more DUTs simultaneously.
- Direct generator / receiver access (option) enabling the following, for example: ?Loop-in of preamplifiers into generator paths
- Loop-in of attenuators into the receiver paths
- Connection of external test setups, e.g. power amplifiers, or use of analyzer as a multichannel receiver, e.g. for antenna measurements-
Key Facts
- Linear and nonlinear amplifier and mixer measurements
- Noise figure measurements
- Pulse profile measurements with 12.5 ns resolution
- True differential measurements for reliable characterization of active devices with balanced ports
- High output power typ. > 18 dBm
- Wide dynamic range typ. > 140 dB
- High measurement speed < 3.5 μs per test point
- Wide IF bandwidth: 1/5/30 MHz
- Versatile calibration techniques: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
- Automatic calibration units
- Phase and group delay measurements on mixers with and without LO access
- Frequency range: 300 kHz to 8 GHz (R&S?ZVA8), 10 MHz to 24/40/50/67/110 GHz (R&S?ZVA24/40/50/67/110)
Feature Coll.
- High measurement throughput
- Ergonomic user interface
- Easy and error-free calibration
Specifications
For R&S ZVA 50 / 67 / 110 see below
|
R&S ZVA8 |
R&S ZVA24 |
R&S ZVA40 |
| Number of test ports |
2 or 4 |
| Frequency range |
300 kHz to 8 GHz |
10 MHz to 24 GHz |
10 MHz to 40 GHz |
| Number of test points per trace |
1 to 60001 |
| Measurement bandwidths |
1 Hz to 1 MHz (with option: up to 30 MHz) |
| Max. number of internal sources |
2 |
4 |
4 |
| Operating system |
Windows XP Embedded |
|
| Dynamic range at 10 Hz measurement bandwidth: |
| Between test ports |
typ. 140 dB |
typ. 135 dB |
typ. 140 dB |
| With direct receiver access |
typ. > 145 dB |
typ. > 145 dB |
typ. > 150 dB |
|
| Power range |
typ. 15 dBm |
typ. 18 dB |
typ. 18 dB |
| With direct receiver access |
typ. > 60 dB |
typ. > 58 dB |
typ. > 58 dB |
|
| Measurement time per test point |
< 3.5 μs (at 1 MHz measurement bandwidth) |
| Data transfer time (for 201 measurements points): |
| via IEC/IEEE bus |
< 2.9 ms |
| via VX11 over 100 Mbit/s LAN |
< 1.3 ms |
| via RSIB over 100 Mbit/s LAN |
< 0.7 ms |
| Switching time between channels |
< 1 ms (with no more than 2001 points) |
| Switching time between instrument setups |
< 10 ms (with no more than 2001 points) |
|
R&S ZVA50 |
R&S ZVA67 |
R&S ZVA110 |
| Number of test ports |
2 or 4 |
2 (base unit
R&S?ZVA67:
4 ports) |
| Frequency range |
10 MHz to 50 GHz |
10 kHz to 67 GHz |
10 MHz to 110 GHz |
| Number of test points per trace |
1 to 60001 |
| Measurement bandwidths |
1 Hz to 1 MHz (with option: up to 30 MHz) |
| Max. number of internal sources |
2 |
4 |
4 (base unit
R&S?ZVA67) |
| Operating system |
Windows XP Embedded |
|
| Dynamic range at 10 Hz measurement bandwidth: |
| Between test ports |
typ. 140 dB |
typ. 140 dB |
typ. 130 dB |
| With direct receiver access |
typ. > 150 dB |
typ. > 145 dB |
N/A |
|
| Output power at test port |
typ. 18 dB |
typ. 18 dB |
typ. 8 dB |
| Power range |
typ. > 58 dB |
typ. > 58 dB |
typ. > 38 dB |
|
| Measurement time per test point |
< 3.5 μs (at 1 MHz measurement bandwidth) |
| Data transfer time (for 201 measurements points): |
| via IEC/IEEE bus |
< 2.9 ms |
| via VX11 over 100 Mbit/s LAN |
< 1.3 ms |
| via RSIB over 100 Mbit/s LAN |
< 0.7 ms |
| Switching time between channels |
< 1 ms (with no more than 2001 points) |
| Switching time between instrument setups |
< 10 ms (with no more than 2001 points) |
Base Unit
Hardware Options - Direct Channel Access
-
R&S ZVA8-B16 Order No. 1164.0209.08
Direct Generator/Receiver Access for 2-Port ZVA8
-
R&S ZVA8-B16 Order No. 1164.0209.10
Direct Generator/Receiver Access for 4-Port ZVA8
-
R&S ZVA24-B16 Order No. 1164.0209.24
Direct Generator/Receiver Access for 2-Port ZVA24
-
R&S ZVA24-B16 Order No. 1164.0209.26
Direct Generator/Receiver Access for 4-Port ZVA24
-
R&S ZVA40-B16 Order No. 1164.0209.40
Direct Generator/Receiver Access for 2-Port ZVA40
-
R&S ZVA40-B16 Order No. 1164.0209.42
Direct Generator/Receiver Access for 4-Port ZVA40
-
R&S ZVA50-B16 Order No. 1164.0209.50
Direct Generator/Receiver Access for 2-Port ZVA50
-
R&S ZVA50-B16 Order No. 1164.0209.52
Direct Generator/Receiver Access for 4-Port ZVA50
-
R&S ZVA67-B16 Order No. 1164.0209.67
Direct Generator/Receiver Access for 2-Port ZVA67
-
R&S ZVA67-B16 Order No. 1164.0209.69
Direct Generator/Receiver Access for 4-Port ZVA67
Hardware options - Generator Step Attenuators
-
R&S?ZVA8-B21 Order No. 1164.0009.02
Generator Step Attenuator, Port 1
70 dB in 10 dB steps, mech., 8 GHz
-
R&S?ZVA8-B22 Order No. 1164.0015.02
Generator Step Attenuator, Port 2
70 dB in 10 dB steps, mech., 8 GHz
-
R&S?ZVA8-B23 Order No. 1164.0021.02
Generator Step Attenuator, Port 3
70 dB in 10 dB steps, mech., 8 GHz
-
R&S?ZVA8-B24 Order No. 1164.0038.02
Generator Step Attenuator, Port 4
70 dB in 10 dB steps, mech., 8 GHz
-
R&S?ZVA24-B21 Order No. 1164.0109.02
Generator Step Attenuator, Port 1
70 dB in 10 dB steps, mech., 24 GHz
-
R&S?ZVA24-B22 Order No. 1164.0115.02
Generator Step Attenuator, Port 2
70 dB in 10 dB steps, mech., 24 GHz
-
R&S?ZVA24-B23 Order No. 1164.0121.02
Generator Step Attenuator, Port 3
70 dB in 10 dB steps, mech., 24 GHz
-
R&S?ZVA24-B24 Order No. 1164.0138.02
Generator Step Attenuator, Port 4
70 dB in 10 dB steps, mech., 24 GHz
-
R&S?ZVA40-B21 Order No. 1302.5409.02
Generator Step Attenuator, Port 1
70 dB in 10 dB steps, mech., 40 GHz
-
R&S?ZVA40-B22 Order No. 1302.5415.02
Generator Step Attenuator, Port 2
70 dB in 10 dB steps, mech., 40 GHz
-
R&S?ZVA40-B23 Order No. 1302.5421.02
Generator Step Attenuator, Port 3
70 dB in 10 dB steps, mech., 40 GHz
-
R&S?ZVA40-B24 Order No. 1302.5438.02
Generator Step Attenuator, Port 4
70 dB in 10 dB steps, mech., 40 GHz
-
R&S?ZVA50-B21 Order No. 1305.5616.02
Generator Step Attenuator, Port 1
50 dB in 10 dB steps, mech., 50 GHz
-
R&S?ZVA50-B22 Order No. 1305.5622.02
Generator Step Attenuator, Port 2
50 dB in 10 dB steps, mech., 50 GHz
-
R&S?ZVA50-B23 Order No. 1305.5639.02
Generator Step Attenuator, Port 3
50 dB in 10 dB steps, mech., 50 GHz
-
R&S?ZVA50-B24 Order No. 1305.5645.02
Generator Step Attenuator, Port 4
50 dB in 10 dB steps, mech., 50 GHz
-
R&S?ZVA67-B21 Order No. 1305.7077.02
Generator Step Attenuator, Port 1
50 dB in 10 dB steps, mech., 67 GHz
-
R&S?ZVA67-B22 Order No. 1305.7083.02
Generator Step Attenuator, Port 2
50 dB in 10 dB steps, mech., 67 GHz
-
R&S?ZVA67-B23 Order No. 1305.7090.02
Generator Step Attenuator, Port 3
50 dB in 10 dB steps, mech., 67 GHz
-
R&S?ZVA67-B24 Order No. 1305.7102.02
Generator Step Attenuator, Port 4
50 dB in 10 dB steps, mech., 67 GHz
Hardware Options - Receiver Step Attenuators
-
R&S?ZVA8-B31 Order No. 1164.0044.02
Receiver Step Attenuator, Port 1
75 dB in 5 dB steps, mech., 8 GHz
-
R&S?ZVA8-B32 Order No. 1164.0050.02
Receiver Step Attenuator, Port 2
75 dB in 5 dB steps, mech., 8 GHz
-
R&S?ZVA8-B33 Order No. 1164.0067.02
Receiver Step Attenuator, Port 3
75 dB in 5 dB steps, mech., 8 GHz
-
R&S?ZVA8-B34 Order No. 1164.0073.02
Receiver Step Attenuator, Port 4
75 dB in 5 dB steps, mech., 8 GHz
-
R&S?ZVA24-B31 Order No. 1164.0144.02
Receiver Step Attenuator, Port 1
35 dB in 5 dB steps, mech., 24 GHz
-
R&S?ZVA24-B32 Order No. 1164.0150.02
Receiver Step Attenuator, Port 2
35 dB in 5 dB steps, mech., 24 GHz
-
R&S?ZVA24-B33 Order No. 1164.0167.02
Receiver Step Attenuator, Port 3
35 dB in 5 dB steps, mech., 24 GHz
-
R&S?ZVA24-B34 Order No. 1164.0173.02
Receiver Step Attenuator, Port 4
35 dB in 5 dB steps, mech., 24 GHz
-
R&S?ZVA40-B31 Order No. 1302.5444.02
Receiver Step Attenuator, Port 1
35 dB in 5 dB steps, mech., 40 GHz
-
R&S?ZVA40-B32 Order No. 1302.5450.02
Receiver Step Attenuator, Port 2
35 dB in 5 dB steps, mech., 40 GHz
-
R&S?ZVA40-B33 Order No. 1302.5467.02
Receiver Step Attenuator, Port 3
35 dB in 5 dB steps, mech., 40 GHz
-
R&S?ZVA40-B34 Order No. 1302.5473.02
Receiver Step Attenuator, Port 4
35 dB in 5 dB steps, mech., 40 GHz
-
R&S?ZVA50-B31 Order No. 1305.5716.02
Receiver Step Attenuator, Port 1
35 dB in 5 dB steps, mech., 50 GHz
-
R&S?ZVA50-B32 Order No. 1305.5722.02
Receiver Step Attenuator, Port 2
35 dB in 5 dB steps, mech., 50 GHz
-
R&S?ZVA50-B33 Order No. 1305.5739.02
Receiver Step Attenuator, Port 3
35 dB in 5 dB steps, mech., 50 GHz
-
R&S?ZVA50-B34 Order No. 1305.5745.02
Receiver Step Attenuator, Port 4
35 dB in 5 dB steps, mech., 50 GHz
-
R&S?ZVA67-B31 Order No. 1305.7119.02
Receiver Step Attenuator, Port 1
35 dB in 5 dB steps, mech., 67 GHz
-
R&S?ZVA67-B32 Order No. 1305.7125.02
Receiver Step Attenuator, Port 2
35 dB in 5 dB steps, mech., 67 GHz
-
R&S?ZVA67-B33 Order No. 1305.7131.02
Receiver Step Attenuator, Port 3
35 dB in 5 dB steps, mech., 67 GHz
-
R&S?ZVA67-B34 Order No. 1305.7148.02
Receiver Step Attenuator, Port 4
35 dB in 5 dB steps, mech., 67 GHz
Hardware Options - Other
Software Options
-
-
R&S?ZVAB-K30 Order No. 1164.1828.02
Noise Figure Measurement
Noise Figure Measurement on 2 port devices
(for R&S?ZVA and R&S?ZVT, Option R&S?ZVA-K17 (5MHz bandwidth) included)
(software license)
-
-
-
-
-
-
R&S?ZVA-K10 Order No. 1164.1805.02
Long Distance Group Delay Measurement
requires R&S?ZVA-B16, R&S?ZVA-K9, R&S?ZVA-K4 and VISA I/O BIB
-
R&S?ZVA-K27 Order No. 1164.1892.02
Two internal pulse generators
(for R&S?ZVA and R&S?ZVT)
-
R&S?ZVA-K31 Order No. 1317.8938.02
Frequency Converting Noise Figure Measurements
Noise figure measurements on frequency converting DUTs,
for R&S?ZVA and R&S?ZVT, R&S?ZVA-K4 and R&S?ZVA-K30 required (software license)
-
-
R&S?ZVA-B9 Order No. 1305.6541.02 (ZVA8) / 1305.6541.03 (ZVA24,ZVA40) / 1305.6541.04 (ZVA50,ZVA67)
Set of cables for the R&S?ZVA-K9
to use the internal coupler of R&S?ZVA to generate the two-tone signal
Order No.: 1305.6541.0x
x = 2 for R&S?ZVA8, x = 3 for R&S?ZVA24 and R&S?ZVA40 2.92 mm, x = 4 for R&S?ZVA50 and R&S?ZVA67.
-
Extension Unit
-
-
Extension Unit
Configurable signal conditioning for measurements on active components
Upgrade Kits
Internal PC Control Unit, Flash Disks
-
R&S?ZVA-U116 Order No. 1312.7733.02
Upgrade CPU FMR7 to FMR11 for R&S?ZVA, ZVT
Incl. upgrade to Windows Embedded Standard 7
-
R&S?ZVA-U116 Order No. 1312.7733.03
Upgrade CPU FMR6 to FMR11 for R&S?ZVA
Incl. upgrade to Windows Embedded Standard 7
-
R&S?ZVA-U116 Order No. 1312.7733.04
Upgrade CPU FMR6 to FMR11 for R&S?ZVT
Incl. upgrade to Window Embedded Standard 7
-
R&S?ZVA-U116 Order No. 1312.7733.06
UPgrade CPU FMR9 to FMR11 for R&S?ZVA, ZVT
Incl. upgrade to Windows Embedded Standard 7
-
-
-
R&S?ZVAB-B18 Order No. 1164.0715.03
Removable Flash Disk 4 GByte
for R&S?ZVA, R&S?ZVB with FMR7/3 and FMR7/6 control unit
-
R&S?ZVAB-B18 Order No. 1164.0715.04
Removable Hard Disk 500 GByte
for R&S?ZVA, R&S?ZVB with FMR7, FMR9 and FMR11 factory installed only (including firmware)
-
R&S?ZVAB-B19 Order No. 1164.1111.03
Additional Removable Flash Disk 4 GByte
for R&S?ZVA, R&S?ZVB with FMR7/3 and FMR7/6 control unit, option ZVAB-B18 (1164.0715.03) required
-
R&S?ZVAB-B19 Order No. 1164.1111.04
Additional Removable Hard Disk 500 GByte
for R&S?ZVA, R&S?ZVB with FMR7/3 and FMR7/6 control unit, option ZVAB-B18 (1164.0715.04) required
-
R&S?ZVAB-B19 Order No. 1164.1111.05
Additional Removable Hard Disk 500 GByte
for R&S?ZVA, R&S?ZVB with FMR9 control unit, option ZVAB-B18 (1164.0715.04) required
-
R&S?ZVAB-B19 Order No. 1164.1111.06
Additional removable hard disc, 500 MB, incl. firmware
for R&S?ZVA with controller FMR11 firmware, for R&S?ZVA/ZVB included Option R&S?ZVAB-B18 (1164.0715.04) required

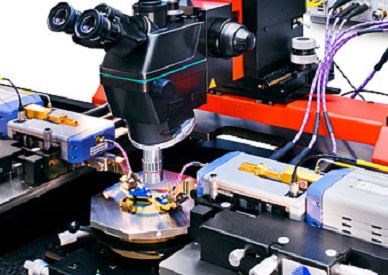

Frequency Extension Accessories
General Accessories
-
Overview of Accessories for Network Analyzer from Rohde & Schwarz
Recommended Extras
