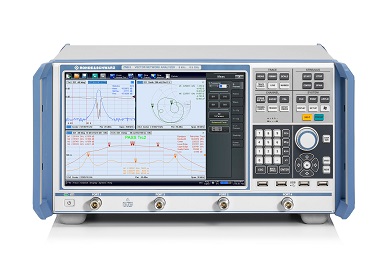

ZNB (Fastest Network Analyzer)

주요 스펙

Frequency Range
  • :9 kHz to 4.5 / 8.5 / 20 / 40 GHz
Output Power
  • :15 dBm
Number of Point
  • :100,001 per trace
IF Bandwidth
  • :1 Hz to 10 MHz
Measurement time
  • :< 2.5 us per point
Key Facts
 - Frequency range from 9 kHz up to 40 GHz
 - Wide dynamic range of up to 140 dB
 - Short sweep times, e.g. 4 ms for 401 points
 - High temperature stability of typ. 0.01 dB/°C
 - Wide power sweep range of 98 dB
 - Wide range of IF bandwidths from 1 Hz to 10 MHz
 - Manual and automatic calibration
 - Large, high-resolution 12.1" screen
 - Touchscreen user interface
 - Two or four ports
 - Four-port model with two independant generators
 - Expansion to up to 48 ports using switch matrices
　

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com



Brief Description
 - More than 60 years of experience in the field of vector network analysis pay off:
   Rohde & Schwarz sets new benchmarks with its ZNB family of vector network analyzers.
   These analyzers feature high measurement speed, outstanding precision and exceptional ease of operation.


Features & Benefits
    1) Designed to meet the highest standards
        - Wide dynamic range from 9 kHz for fast measurements on high-blocking DUTs
        - Excellent raw data for high basic accuracy
        - High temperature stability for long calibration intervals
        - Fast synthesizers for high measurement speed

    2) Convenient characterization of active and passive RF components
        - Fast embedding/de-embedding for impedance matching using virtual network
        - Mixed-mode S-parameters for balanced DUT characterization
        - Redefined S-parameters for flexible test setup configuration
        - Extensive analysis functions for efficient trace analysis
        - Amplifier measurements with wide power sweep range and receiver step attenuators
        - Time domain analysis for distance-to-fault (DTF) measurements and filter adjustment
        - Frequency conversion measurements on mixers and amplifiers ? fast and simple with two independent internal generators

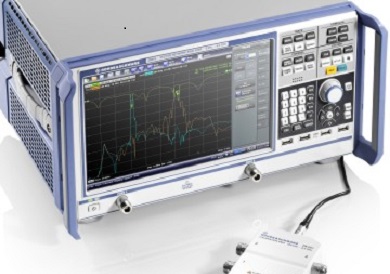

    3) Simple calibration - manual or automatic
        - The right calibration method for every test application
        - TSM (Through, Short, Match) ? full calibration in only five steps
        - Automatic calibration units with up to 24 ports

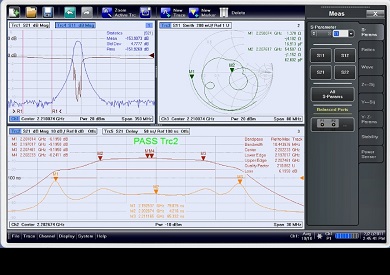

    4) Network analysis made easy
        - Flat and clear menu structures for efficient operation
        - Optimal display configuration for each measurement task
    5) High throughput in production
        - Short measurement times
        - High measurement speed due to wide dynamic range and optimized IF bandwidths
        - Segmented sweep tailored to device under test
        - Fast switching between instrument setups
        - Handler I/O interface for control of external parts handlers
        - GPIB interface with bidirectional data transfer saves time in production

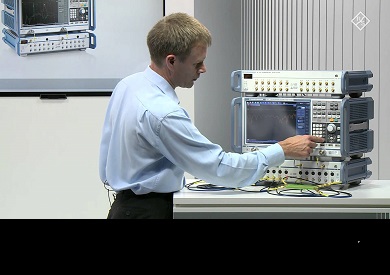

    6) Measurements with up to 48 ports
        - Expanding the number of ports with switch matrices
        - RFFE GPIO interface for direct control of frontend modules
        - Easy configuration at the push of a button
        - Fast measurements and excellent RF characteristics
        - Matrix solutions for every application

    7) A worthwhile investment
        - Ready for the future
        - Upgrading test systems without rewriting system software
        - An analyzer that speaks the user's language
    Key Facts
     - Frequency range from 9 kHz up to 40 GHz
     - Wide dynamic range of up to 140 dB
     - Short sweep times, e.g. 4 ms for 401 points
     - High temperature stability of typ. 0.01 dB/°C
     - Wide power sweep range of 98 dB
     - Wide range of IF bandwidths from 1 Hz to 10 MHz
     - Manual and automatic calibration
     - Large, high-resolution 12.1" screen
     - Touchscreen user interface
     - Two or four ports
     - Four-port model with two independant generators
     - Expansion to up to 48 ports using switch matrices


    구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com



    Brief Description
     - More than 60 years of experience in the field of vector network analysis pay off:
       Rohde & Schwarz sets new benchmarks with its ZNB family of vector network analyzers.
       These analyzers feature high measurement speed, outstanding precision and exceptional ease of operation.


    Features & Benefits
      1) Designed to meet the highest standards
          - Wide dynamic range from 9 kHz for fast measurements on high-blocking DUTs
          - Excellent raw data for high basic accuracy
          - High temperature stability for long calibration intervals
          - Fast synthesizers for high measurement speed

      2) Convenient characterization of active and passive RF components
          - Fast embedding/de-embedding for impedance matching using virtual network
          - Mixed-mode S-parameters for balanced DUT characterization
          - Redefined S-parameters for flexible test setup configuration
          - Extensive analysis functions for efficient trace analysis
          - Amplifier measurements with wide power sweep range and receiver step attenuators
          - Time domain analysis for distance-to-fault (DTF) measurements and filter adjustment
          - Frequency conversion measurements on mixers and amplifiers ? fast and simple with two independent internal generators
      3) Simple calibration - manual or automatic
          - The right calibration method for every test application
          - TSM (Through, Short, Match) ? full calibration in only five steps
          - Automatic calibration units with up to 24 ports
      4) Network analysis made easy
          - Flat and clear menu structures for efficient operation
          - Optimal display configuration for each measurement task
      5) High throughput in production
          - Short measurement times
          - High measurement speed due to wide dynamic range and optimized IF bandwidths
          - Segmented sweep tailored to device under test
          - Fast switching between instrument setups
          - Handler I/O interface for control of external parts handlers
          - GPIB interface with bidirectional data transfer saves time in production
      6) Measurements with up to 48 ports
          - Expanding the number of ports with switch matrices
          - RFFE GPIO interface for direct control of frontend modules
          - Easy configuration at the push of a button
          - Fast measurements and excellent RF characteristics
          - Matrix solutions for every application

      7) A worthwhile investment
          - Ready for the future
          - Upgrading test systems without rewriting system software
          - An analyzer that speaks the user's language

      구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com
