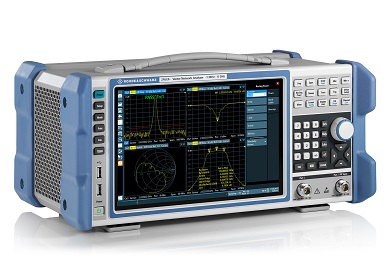

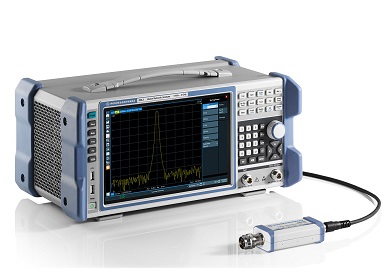

The ZNLE makes vector network analyzer measurements as easy as ABC: easy to configure, easy to calibrate, easy to measure. The renowned high-quality design, an innovative user interface and its compact size make the ZNLE ideal for basic VNA applications.

The ZNLE is a two-port vector network analyzer that can be used for bidirectional measurements of S-parameters S11, S21, S12 and S22 on passive components. Ordering the ZNLE requires only two decisions: the frequency range and whether or not you need a GPIB interface.

The analyzer is available with a frequency range of 1 MHz to 3 GHz (ZNLE3) or 1 MHz to 6 GHz (ZNLE6). The optional GPIB interface lets you connect a controller to remotely control the ZNLE. As a standalone instrument, the ZNLE does not require an external PC to configure the setup. You can start measuring immediately after you switch on the instrument.
