ZNL (Vector Network Analyzer)

주요 스펙

Frequency Range

:5 kHz to 3 GHz / 6 GHz

Dynamic Range

: >120 dB (spec.); typ. >130 dB

Output Power

:?40 dBm to typ. + 3 dBm

IF Bandwidth

:1 Hz to 500 kHz

Display

:10.1

설명 Description
사양 Specification
옵션 Option

Brief description

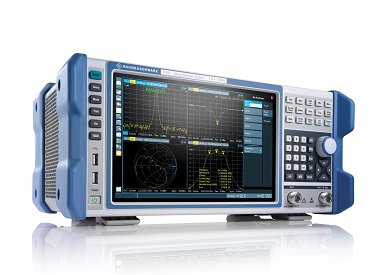

Measurement equipment for RF applications must fulfill high quality standards. Instruments should be easy to use and offer a high versatility. Fast measurements and reliable performance are crucial. With the ZNL, Rohde & Schwarz exceeds these expectations and offers even more: vector network analysis, spectrum analysis and power meter measurements are unified in one single, compact instrument making the ZNL a universal all-rounder.

구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com

Key facts

- Frequency range from 5 kHz to 3 GHz (ZNL3) or 5 kHz to 6 GHz (ZNL6)

- Two-port vector network analyzer for bidirectional measurements

- Universal instrument concept:

. Vector network analyzer

. Fully integrated spectrum analyzer option (for ZNL3)

- Display of power meter measurements

- Wide dynamic range of typ. 130 dB

- Output power range from ?40 dBm to typ. + 3 dBm

- Measurement bandwidths from 1 Hz to 500 kHz

- Fast measurements, i.e. 16.7 ms for 401 points (100 kHz IFBW, 200 MHz Span, 2-port TOSM (SOLT))

- Compact size and low weight (6 kg to 8 kg)

- Optional battery pack available

- Windows 10 operating system

Features & Benefits

- The 3-in-1 analyzer: compact vector network analyzer

. Solid RF performance

. Versatile features, like calibration unit support, for production and lab

. Time domain and distance to fault

. Compact 3 in 1 instrument

. Remote controllable with LAN and GPIB option

- The 3-in-1 analyzer: fully integrated spectrum analyzer

. Integrated hardware for solid RF performance

. Spectrum mode

. Analog demodulation

. Digital demodulation

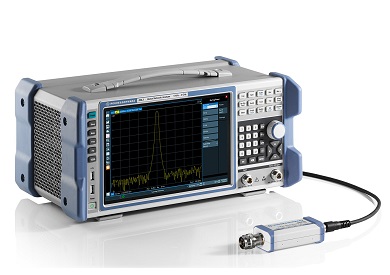

- The 3-in-1 analyzer: RF power meter

. Precise power measurements

- User interface with multi-touch screen

. Clear menu structures for efficient operation

. Wide 10.1" display for convenient operation

. Integrated PC

. All-in-one display of different measurement modes with MultiView feature

- Fully portable - go anywhere

. Battery and DC supply to power the instrument where needed

. Accessories to prepare the instrument for usage in the field

Specifications

구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com

Network analysis
Frequency range	ZNL6	5 kHz to 3 GHz
	ZNL3	5 kHz to 6 GHz
Dynamic range		>120 dB (spec.); typ. >130 dB
Output power		0 dBm (spec.); typ. + 3 dBm
Trace noise		<0.0035 dB (spec.); typ. < 0.0005 dB
Measurement speed
Sweep time	401 points, 2-port TOSM, 200 MHz span, 100 kHz IFBW	16.7 ms
Data transfer
	IEC/IEEE, 201 points	typ. 3 ms
	HiSLIP over 1 Gbit/s LAN	typ. 2.5 ms
Measurement parameters		Sxy; wave quantities, ratios, impedance parameters (Zxy); attmitance parameters (Y); stability factors
Display graphs		dB mag, phase, Smith, polar, SWR, unwr phase, lin. mag, inv. Smith, real, imag, delay
Calibration procedures		reflection normalization open or short, reflection OSM(OSL), enhanced reflection normalization OM or SM; transmission normalization (response calibration), transmission normalization both (response calibration), one path two ports, TOSM (SOLT)
Measurement data points	VNA mode	1 to 100 001
	SA mode	101 to 100 001
IFBW		1 Hz to 500 kHz, in steps of 1/1.5/2/3/5/7
Spectrum analysis
Frequency range	ZNL3-B1	5 kHz to 3 GHz (resolution 1 Hz)
Displayed average noise level (DANL)	RF attenuation 0 dB	<-140 dBm (spec.); typ. <-150 dBm
Phase noise	1 GHz, 10 kHz offset	<-103 dBc (1 Hz); <-108 dBc (1 Hz)
Max. signal analysis bandwidth	with option FPL1-B40	40 MHz
Intermodulation
Third-order intercept point (TOI)	300 MHz ≤ fin ≤ 3 GHz	>16 dBm (spec.); typ. >20 dBm
Second harmonic intercept (SHI)	900 MHz ≤ fin ≤ 1.5 GHz	70 dBm (nom.)
General data
Limit lines	VNA mode	single, segmented, upper limit, lower limit
Channels	within one VNA setup	no limitation
Channel setups		max 14 setups
Traces	VNA mode	no limitation
	SA mode	6
Markers	VNA mode	10 + ref. marker (per trace) SA mode
	SA mode	16
Operating system		Windows 10
Display		26.4 cm (10.1"), diagonal WXGA color LCD with touchscreen
Dimensions (W × H × D)		408 mm × 186 mm × 235 mm (16.06 in × 7.32 in × 9.25 in)
Weight	depending on configuration	6 kg to 8 kg (13.23 lb to 17.64 lb)
