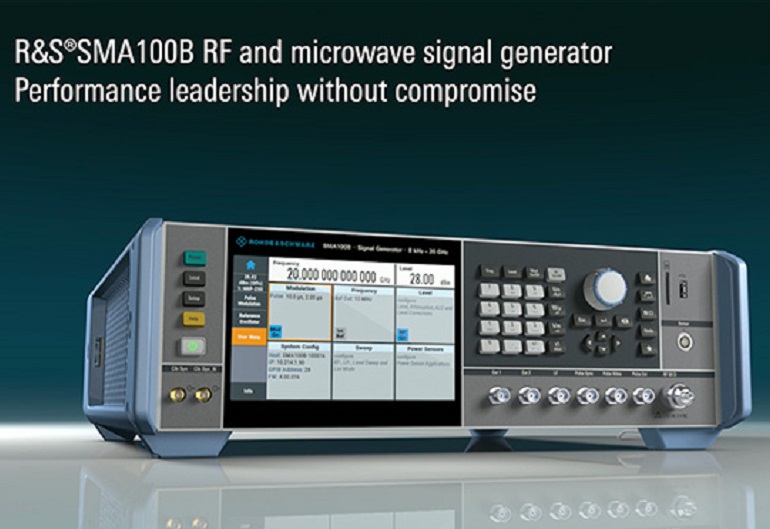

The SMA100B RF and microwave signal generator delivers maximum performance without compromise. It provides purest output signals while maintaining the highest output power level, far outpacing the competition. As the world's leading signal generator, it can handle the most demanding component, module and system T&M tasks in the RF semiconductor, wireless communications and aerospace and defense industries.
02) 6264.1921
HOME > 제조사별 >

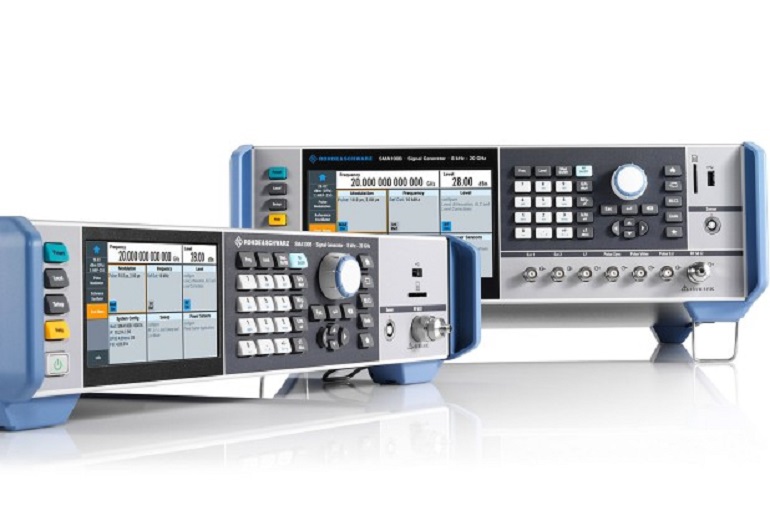

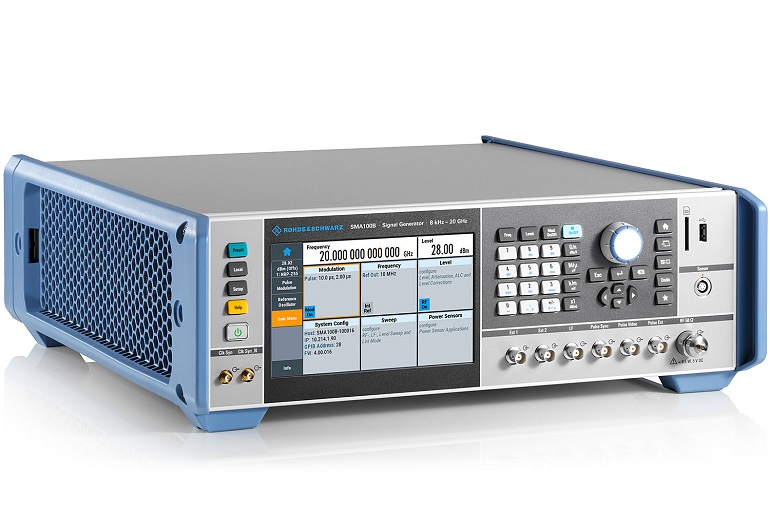

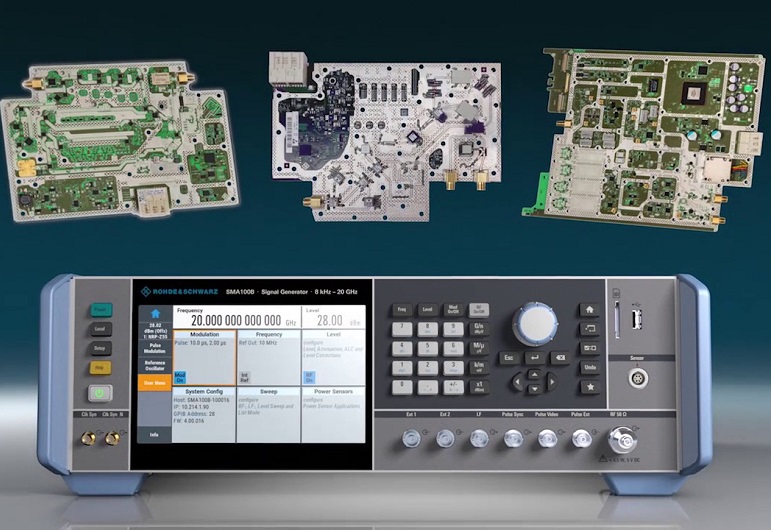

SMA100B (RF & Mivrowave)
Brief Description
Key Facts
- Frequency range from 8 kHz to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz
- SSB phase noise of <-152 dBc (typ.) at 1 GHz and <-132 dBc (typ.) at 10 GHz, each at 20 kHz offset
- Wideband noise <-162 dBc (meas.) at 10 GHz and an offset of 30 MHz
- Nonharmonics below -110 dBc at 1 GHz
- Ultra high output power
. Up to 38 dBm with the 6 GHz instrument
. Up to 32 dBm in the microwave frequency range with the 20 GHz instrument
- Exceptionally low harmonics
- State-of-the-art GUI with touchscreen
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
Specifications
| Frequency | ||
| Frequency range | SMAB-B103 | 8 kHz to 3 GHz |
| SMAB-B106 | 8 kHz to 6 GHz | |
| SMAB-B112 | 8 kHz to 12.75 GHz | |
| SMAB-B120 | 8 kHz to 20 GHz | |
| Level | ||
| Maximum specified output power (PEP) | SMAB-B103/-B106, f = 6 GHz | |
| standard | +19 dBm | |
| with SMAB-K31 | +25 dBm | |
| with SMAB-K31 and SMAB-B32 | +30 dBm | |
| SMAB-B112/-B120 | ||
| standard | ||
| f = 13 GHz | +18 dBm | |
| f = 20 GHz | +17 dBm | |
| with SMAB-K33 | ||
| f = 6 GHz | +23 dBm | |
| f = 20 GHz | +20 dBm | |
| with SMAB-K33 and SMAB-B34 | ||
| f = 6 GHz | +28 dBm | |
| f = 20 GHz | +24 dBm | |
| Spectral purity | ||
| SSB phase noise | f = 1 GHz, 1 Hz measurement bandwidth | |
| standard, carrier offset = 20 kHz |
<-135 dBc, ?139 dBc (typ.) | |
| with SMAB-B710(N), carrier offset = 10 kHz |
<-135 dBc, ?139 dBc (typ.) | |
| with SMAB-B711(N), carrier offset = 10 kHz |
<-147 dBc, ?152 dBc (typ.) | |
| f = 10 GHz, 1 Hz measurement bandwidth |
||
| standard, carrier offset = 20 kHz |
?115 dBc, ?119 dBc (typ.) | |
| with SMAB-B710, carrier offset = 10 kHz |
?115 dBc, ?119 dBc (typ.) | |
| with SMAB-B711, carrier offset = 10 kHz |
?128 dBc, ?132 dBc (typ.) | |
| Harmonics | 10 MHz < f ≤ 6 GHz, P = 18 dBm for instruments equipped with SMAB-B32 and SMAB-B103/-B106 options |
<-60 dBc |
| 10 MHz < f ≤ 20 GHz, P = 16 dBm for instruments equipped with SMAB-B34 and SMAB-B112/-B120 options |
<-55 dBc | |
| Nonharmonics | f = 1 GHz, > 10 kHz from carrier, 10 dBm | <-92 dBc |
| f = 1 GHz, > 10 kHz from carrier, 10 dBm with SMAB-B711 option | <-100 dBc | |
| Supported modulation modes | with SMAB-K720 option | AM, FM, φM |
| Pulse modulation | with SMAB-K22 option | |
| Rise/fall time | SMAB-K22, f > 700 MHz | <10 ns, 5 ns (typ.) |
| On/off ratio | SMAB-K22 | >80 dB |
| Minimum pulse width | SMAB-K22 | <20 ns |
