AT-1212

주요 스펙

Bandwidth
  • :480 MHz
Sample rate
  • :1.25 GS/s
Frequency range
  • :480 MHz
Vertical resolution
  • :14 bit
Channel
  • :2 channel

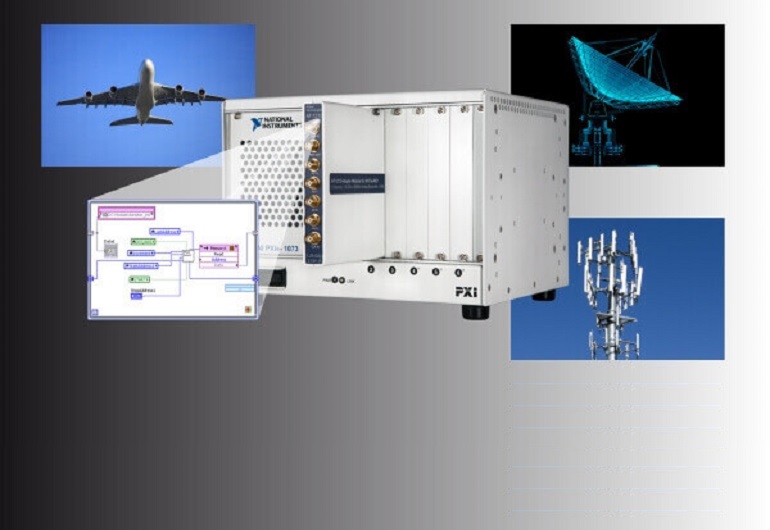

NI FlexRIO Adapter Modules

High Speed Arbitrary Signal Generator
New Generation Waveforms for Complex Real-World Signals
High bandwidth and high resolution AWGs help you to generate with confidence complex signals like digital modulations and RF stimuli for functional and performance tests.
AT-1120/AT-1212 FlexRIO Modules, by combining up to 2 GS/s with 14 Bit Vertical Resolution, generate high performance analog waveforms to meet demanding for test signals and applications where speed, resolution and quality is an issue.

New Generation Waveforms for Complex Real-World Signals
High bandwidth and high resolution AWGs help you to generate with confidence complex signals like digital modulations and RF stimuli for functional and performance tests.
AT-AWG-GS 2500, by combining 2.5 GS/s with 14 Bit Vertical Resolution, gives you high performance analog and digital waveforms to meet demanding for test signals and applications where speed, resolution and quality is an issue.

  - 1.25 GS/s Sample Rate
  - 14 Bit Resolution
  - 2 Channels
  - 480 MHz Analog Bandwidth
  - DC Coupled Output: 4 Vpp Differential / 2 Vpp S.E.
  - Harmonic distortion:-65 dBc
  - Non-harmonic spurious: -75 dBc (1kHz to 800 MHz)


  - RF Signal Generation
  - Digital Modulations
  - Extended waveform memory by using FlexRio onboard DRAM
  - Very Low Harmonic Distortion
  - Arbitrary and DDS modes
  - Real Time Data Streaming and Processing
  - LabView FPGA Graphical Programming
ANALOG
  CHANNELS
DIGITAL
  CHANNELS
  SAMPLE
RATE
   BANDWIDTH  RECORD LENGTH
  VERTICAL
  RESOLUTION
OUTPUT
  FREQUENCY
RANGE
2
NO
1.25 GS/s
480 MHz
  FlexRIO FPGA Module
14
480 MHz

  - 1.25 GS/s Sample Rate
  - 14 Bit Resolution
  - 2 Channels
  - 480 MHz Analog Bandwidth
  - DC Coupled Output: 4 Vpp Differential / 2 Vpp S.E.
  - Harmonic distortion:-65 dBc
  - Non-harmonic spurious: -75 dBc (1kHz to 800 MHz)

  - RF Signal Generation
  - Digital Modulations
  - Extended waveform memory by using FlexRio onboard DRAM
  - Very Low Harmonic Distortion
  - Arbitrary and DDS modes
  - Real Time Data Streaming and Processing
  - LabView FPGA Graphical Programming
