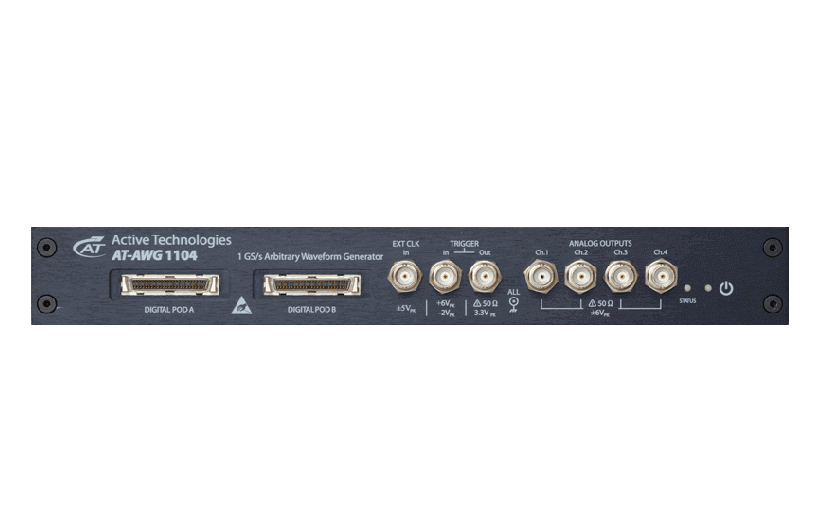

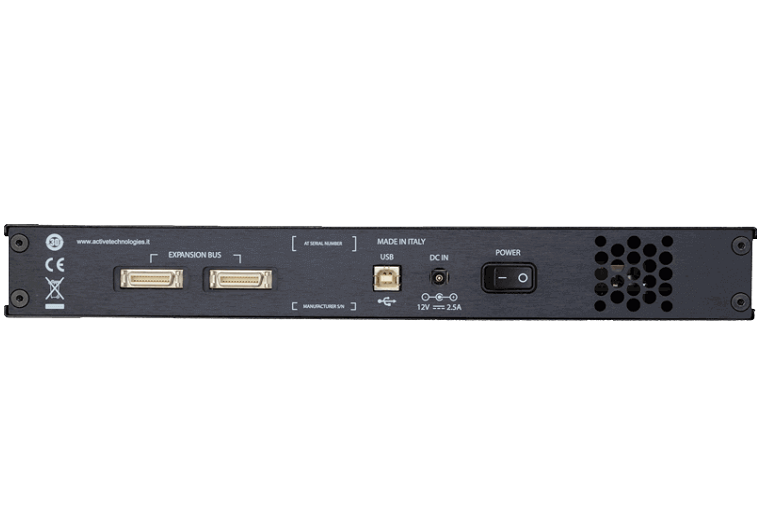

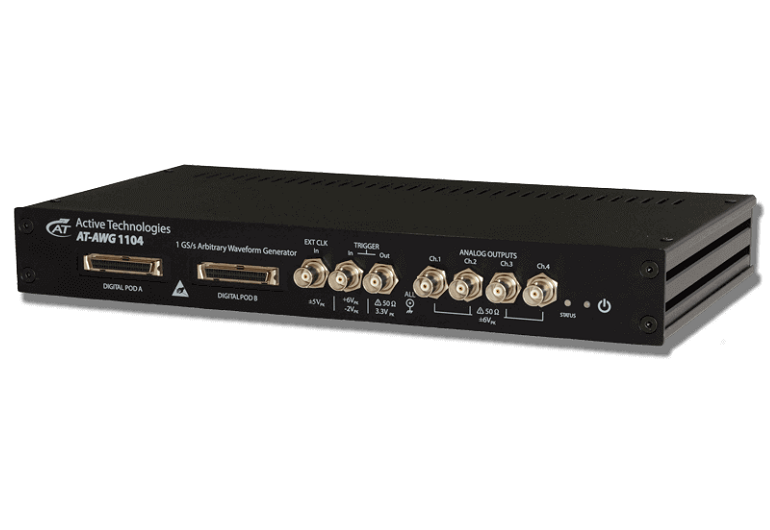

AWG-1102
16 Bit - 1 GS/s Arbitrary Waveform Generator
A waveform generator must provide flexibility to cover a wide range of applications, high-performance to meet demanding signal requirements and be easy to use.
AT-AWG 1102/1104 meet the needs of today?s engineers and technicians with uncompromised performance, a wide variety of signal types, modulation schemes and generation modes all controlled through an intuitive, easy to use interface.
- 2 or 4 channel configuration with a maximum output of: 12 Vpp, 50 Ohm - 24 Vpp, Open circuit.
- Synchronize multiple devices for up to 32 channels
- Flexibility: Arbitrary and Direct Digital Synthesis (DDS) waveform generation
- Modulation: built-in modulation capabilities:AM, PM,FM, ASK,PSK,FSK
- Mixed signal generation: analog and digital pattern generation
- 1 GS/s Sample Rate Interpolated - 250 MS/s Real Time
- 125 Mhz Bandwidth
- Long Memory: 2 Mpts/Ch
- 16 bit Resolution
- 2 and 4 channel models
- Arbitrary and Direct Digital Synthesis (DDS) modes
- Sweep and Burst mode
- Modulation: AM,FM,PM,ASK,FSK,PSK
- Sweep and Burst mode
- Synchronize Multiple Devices for up to 32 Channels
- Easy access to basic functiongenerator mode
- Digital Pattern Generator: 18 or 36 channels
- PWM Mode
- SDK software package available for Microsoft Visual Studio and LabView
- USB 2.0 PC Interface
- 19″ Rackmount option (1104 and 1104D only)
Arbitrary Waveform Generator
Active Technologies Arbitrary Waveform Generators meet the demand of today’s engineers offering a wide variety of signal types: analog, digital, mixed-signal and multi-channel applications can be covered by Active Technologies instruments.
The AWG and AFG family helps you to generate with confidence waveforms of almost any imaginable shape: complex signals like digital modulations, RF stimuli for functional and performance tests, radar simulation, optical communication and electronic warfare can be created through an easy to use interface.
The modular structure of AWGs allows to build systems from 2 to 32 channels and sample rate from 250Ms/s to 2.5Gs/s combined with 14 and 16 bit resolution.
|
ANALOG
CHANNELS
|
DIGITAL
CHANNELS |
MULTI-CHANNEL | SAMPLE RATE | BANDWIDTH | RECORD LENGTH | VERTICAL RESOLUTION |
OUTPUT
FREQUENCY
RANGE |
|---|---|---|---|---|---|---|---|
|
4
|
32 |
32 Analog / 256 Digital |
1 GS/s Interpolated ? 250 MS/s Real Time |
125 MHz |
2 MS/CH |
15 |
125 MHz |
- 2 or 4 channel configuration with a maximum output of: 12 Vpp, 50 Ohm - 24 Vpp, Open circuit.
- Synchronize multiple devices for up to 32 channels
- Flexibility: Arbitrary and Direct Digital Synthesis (DDS) waveform generation
- Modulation: built-in modulation capabilities:AM, PM,FM, ASK,PSK,FSK
- Mixed signal generation: analog and digital pattern generation
- 1 GS/s Sample Rate Interpolated - 250 MS/s Real Time
- 125 Mhz Bandwidth
- Long Memory: 2 Mpts/Ch
- 16 bit Resolution
- 2 and 4 channel models
- Arbitrary and Direct Digital Synthesis (DDS) modes
- Sweep and Burst mode
- Modulation: AM,FM,PM,ASK,FSK,PSK
- Sweep and Burst mode
- Synchronize Multiple Devices for up to 32 Channels
- Easy access to basic functiongenerator mode
- Digital Pattern Generator: 18 or 36 channels
- PWM Mode
- SDK software package available for Microsoft Visual Studio and LabView
- USB 2.0 PC Interface
- 19″ Rackmount option (1104 and 1104D only)
