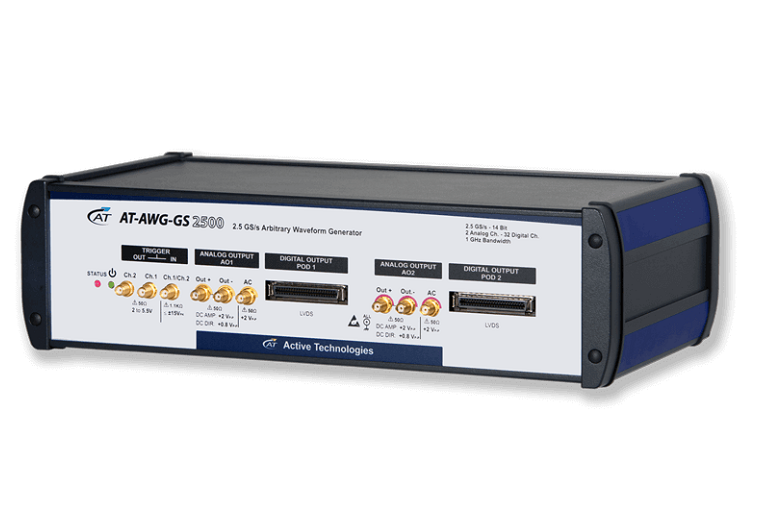

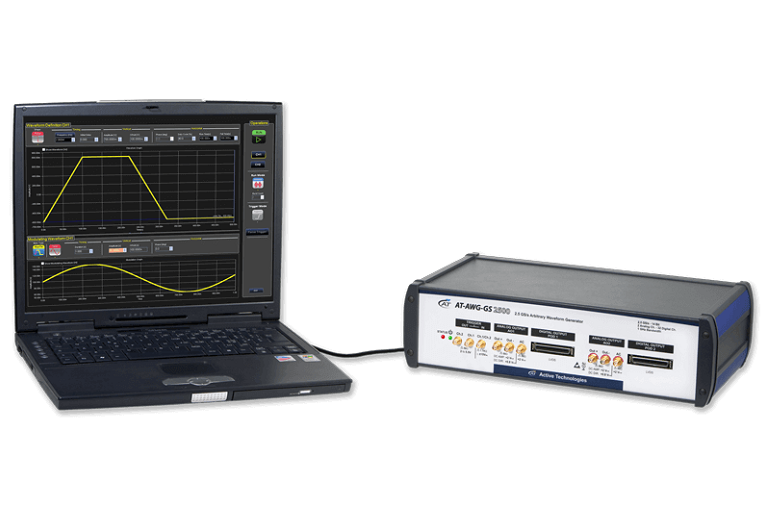

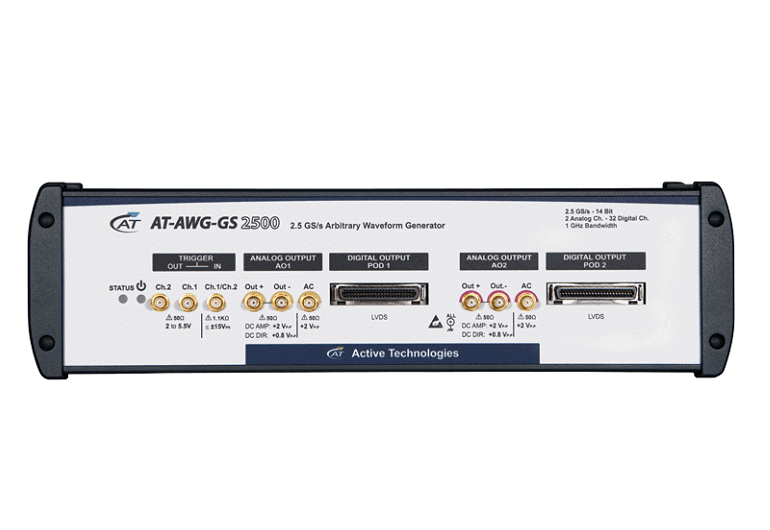

AWG-GS2500
Arbitrary Waveform Generator
Active Technologies Arbitrary Waveform Generators meet the demand of today’s engineers offering a wide variety of signal types: analog, digital, mixed-signal and multi-channel applications can be covered by Active Technologies instruments.
The AWG and AFG family helps you to generate with confidence waveforms of almost any imaginable shape: complex signals like digital modulations, RF stimuli for functional and performance tests, radar simulation, optical communication and electronic warfare can be created through an easy to use interface.
The modular structure of AWGs allows to build systems from 2 to 32 channels and sample rate from 250Ms/s to 2.5Gs/s combined with 14 and 16 bit resolution.
New Generation Waveforms for Complex Real-World Signals
High bandwidth and high resolution AWGs help you to generate with confidence complex signals like digital modulations and RF stimuli for functional and performance tests.
AT-AWG-GS 2500, by combining 2.5 GS/s with 14 Bit Vertical Resolution, gives you high performance analog and digital waveforms to meet demanding for test signals and applications where speed, resolution and quality is an issue.
- RF Signal Generation
- Digital Modulations
- Output Selection: AC amp, Direct DAC, DC amp
- Very Low Harmonic Distortion
- High Speed Digital Outputs
- Real Time Data Streaming and Processing
- Multi-Instrument Synchronization
- Arbitrary, DDS and Function Generator modes
- 2.5 GS/s Real Time Sample Rate
- 14 Bit Resolution
- 2 Channels
- Memory Size: up to 64MS/channel
- > 1 GHz Analog Bandwidth
- Direct DAC Output : 1.6 Vpp Differential / 0.8 Vpp S.E. > 1 GHz Bandwidth
- DC Coupled Output : 4 Vpp Differential / 2 Vpp S.E. > 600 MHz Bandwidth
- AC Output : -10 dBm to +10 dBm > 1GHz Bandwidth
- Harmonic distortion: < -65 dBc
- Non-harmonic spurious: < -74 dBc (1kHz to 1 GHz)
- Multi Channel Synchronization : 10 ps resolution skew control
- Arbitrary, DDS and Function Generator modes
- Advanced Waveform Sequencer
- Digital Pattern Generator: 16/32 Bits @ 1250/625 Mbps
- USB 2.0 PC Interface
| ANALOG CHANNELS | DIGITAL CHANNELS | MULTI-CHANNEL | SAMPLE RATE | BANDWIDTH | RECORD LENGTH | VERTICAL RESOLUTION | OUTPUT FREQUENCY RANGE |
|---|---|---|---|---|---|---|---|
|
2 |
32 |
4 Analog / 64 Digital |
2.5 GS/s |
> 1 GHz |
64 MS/CH |
14 |
1 GHz |
- RF Signal Generation
- Digital Modulations
- Output Selection: AC amp, Direct DAC, DC amp
- Very Low Harmonic Distortion
- High Speed Digital Outputs
- Real Time Data Streaming and Processing
- Multi-Instrument Synchronization
- Arbitrary, DDS and Function Generator modes
- 2.5 GS/s Real Time Sample Rate
- 14 Bit Resolution
- 2 Channels
- Memory Size: up to 64MS/channel
- > 1 GHz Analog Bandwidth
- Direct DAC Output : 1.6 Vpp Differential / 0.8 Vpp S.E. > 1 GHz Bandwidth
- DC Coupled Output : 4 Vpp Differential / 2 Vpp S.E. > 600 MHz Bandwidth
- AC Output : -10 dBm to +10 dBm > 1GHz Bandwidth
- Harmonic distortion: < -65 dBc
- Non-harmonic spurious: < -74 dBc (1kHz to 1 GHz)
- Multi Channel Synchronization : 10 ps resolution skew control
- Arbitrary, DDS and Function Generator modes
- Advanced Waveform Sequencer
- Digital Pattern Generator: 16/32 Bits @ 1250/625 Mbps
- USB 2.0 PC Interface
