AWG-4022
Arbitrary Waveform Generator
Active Technologies Arbitrary Waveform Generators meet the demand of today’s engineers offering a wide variety of signal types: analog, digital, mixed-signal and multi-channel applications can be covered by Active Technologies instruments.
The AWG and AFG family helps you to generate with confidence waveforms of almost any imaginable shape: complex signals like digital modulations, RF stimuli for functional and performance tests, radar simulation, optical communication and electronic warfare can be created through an easy to use interface.
The modular structure of AWGs allows to build systems from 2 to 32 channels and sample rate from 250Ms/s to 2.5Gs/s combined with 14 and 16 bit resolution.
구매, 기술, 렌탈 문의 이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com
Time to Reinvent Advance Signal Generator
The ARB Rider Series offers premium signal integrity with the easiest to use touch screen display interface (SimpleRider™).

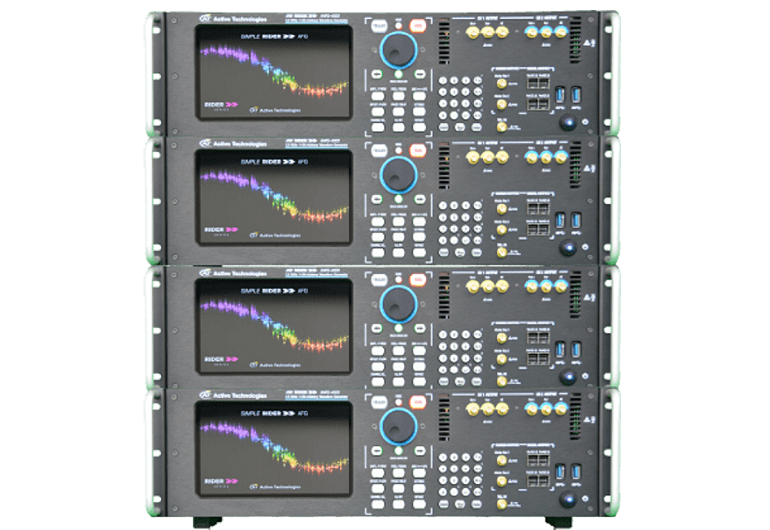

Up to four instruments can be synchronized together in order to build a real 8 channel waveform generator system
- Touch Screen display and Soft Keyboard
- Dual Analog Channel + 32 Digital Channels
- Touch Gesture
- Trigger, view, generate and sync

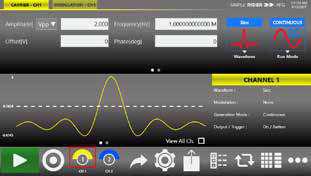

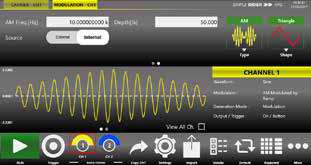

- Create Easily waveforms and pulses with Simple Rider UI
- AFG and DPG all in one instrument
- 2.5 GS/s, 14 Bit Vertical Resolution
- Minimum Edge time down to 350 ps
- Maximum dynamic range up to 5Vpp into 50 ohms
- Up to 64 Mpts per Channel
- 16-32 Digital Channels in synchronous with analog Generation
- Multi Instrument Synchronization: up to 8 Analog Channels

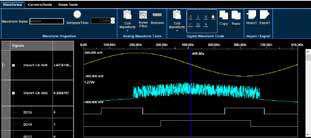

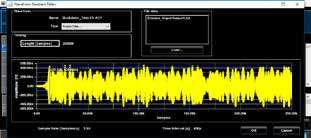

- SW User Interfaces: Expert Rider for AWG mode and Simple Rider for AFG mode
| ANALOG CHANNELS |
DIGITAL CHANNELS |
MULTI-CHANNEL | SAMPLE RATE |
BANDWIDTH | RECORD LENGTH |
VERTICAL RESOLUTION |
OUTPUT FREQUENCY RANGE |
MAXIMUM
OUTPUT
VOLTAGE |
|---|---|---|---|---|---|---|---|---|
|
2
|
16/32 | 8/128 | 2.5 GS/s | > 1 GHz | 64 MS/CH | 14 | 1 GHz | 5Vpp |
- Touch Screen display and Soft Keyboard
- Dual Analog Channel + 32 Digital Channels
- Touch Gesture
- Trigger, view, generate and sync
- Create Easily waveforms and pulses with Simple Rider UI
- AFG and DPG all in one instrument
- 2.5 GS/s, 14 Bit Vertical Resolution
- Minimum Edge time down to 350 ps
- Maximum dynamic range up to 5Vpp into 50 ohms
- Up to 64 Mpts per Channel
- 16-32 Digital Channels in synchronous with analog Generation
- Multi Instrument Synchronization: up to 8 Analog Channels
- SW User Interfaces: Expert Rider for AWG mode and Simple Rider for AFG mode
