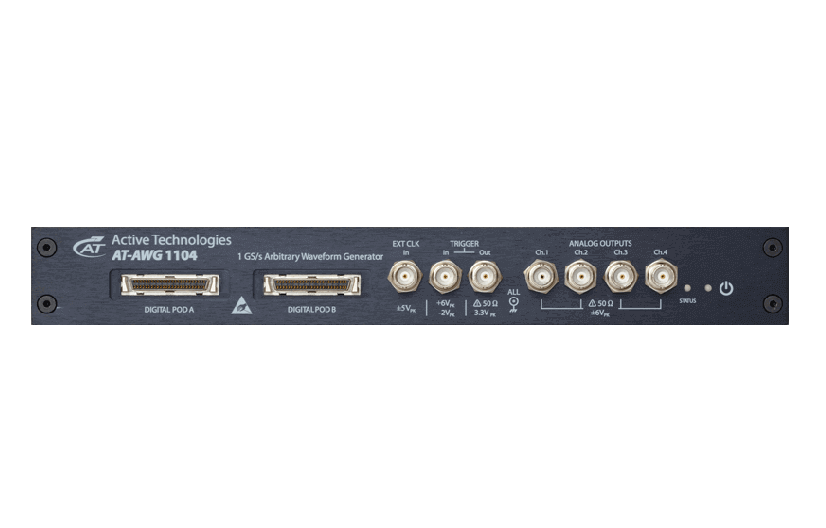

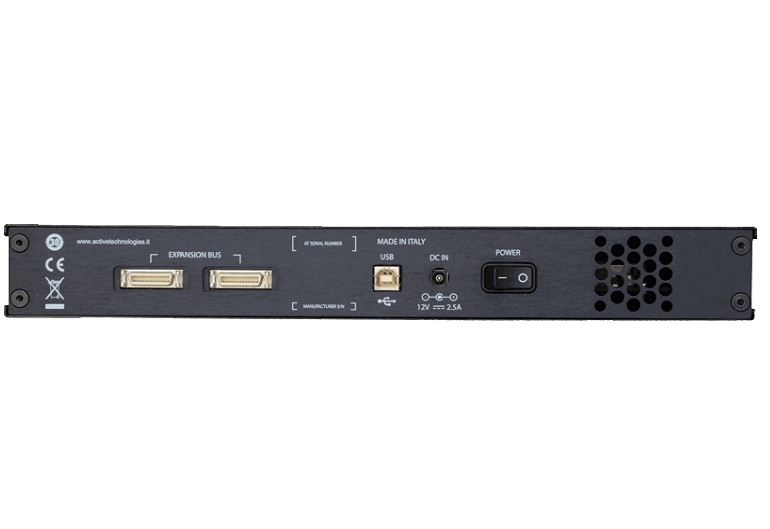

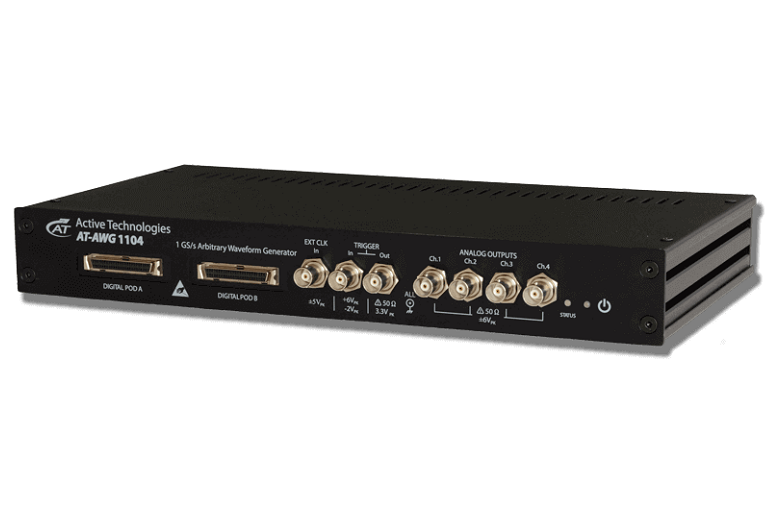

AWG-1104
16 Bit - 1 GS/s Arbitrary Waveform Generator
A waveform generator must provide flexibility to cover a wide range of applications, high-performance to meet demanding signal requirements and be easy to use.
AT-AWG 1102/1104 meet the needs of today?s engineers and technicians with uncompromised performance, a wide variety of signal types, modulation schemes and generation modes all controlled through an intuitive, easy to use interface.
- 2 or 4 channel configuration with a maximum output of: 12 Vpp, 50 Ohm - 24 Vpp, Open circuit.
- Synchronize multiple devices for up to 32 channels
- Flexibility: Arbitrary and Direct Digital Synthesis (DDS) waveform generation
- Modulation: built-in modulation capabilities:AM, PM,FM, ASK,PSK,FSK
- Mixed signal generation: analog and digital pattern generation
- 1 GS/s Sample Rate Interpolated - 250 MS/s Real Time
- 125 Mhz Bandwidth
- Long Memory: 2 Mpts/Ch
- 16 bit Resolution
- 2 and 4 channel models
- Arbitrary and Direct Digital Synthesis (DDS) modes
- Sweep and Burst mode
- Modulation: AM,FM,PM,ASK,FSK,PSK
- Sweep and Burst mode
- Synchronize Multiple Devices for up to 32 Channels
- Easy access to basic functiongenerator mode
- Digital Pattern Generator: 18 or 36 channels
- PWM Mode

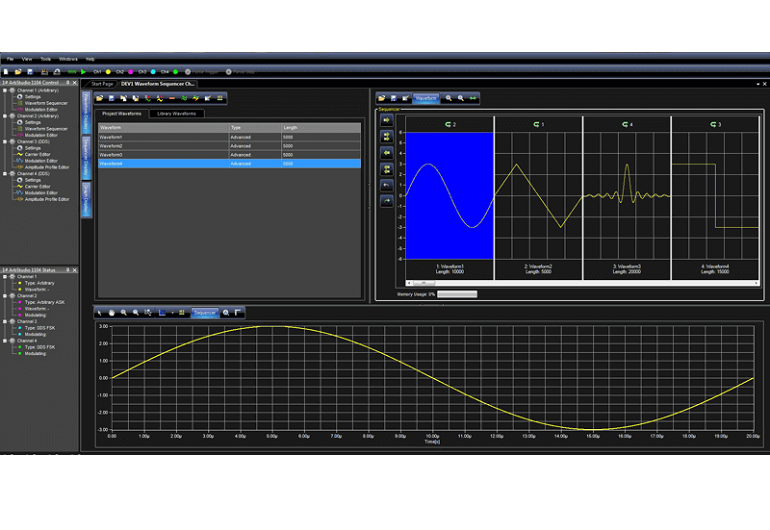

- SDK software package available for Microsoft Visual Studio and LabView
- USB 2.0 PC Interface
- 19″ Rackmount option (1104 and 1104D only)
Pulse Generators
Active Technologies Pulse and Pattern generators offer wide output range and a rise time faster than 70 ps.
The modular structure of the systems allows to build multiple channel systems in a compact form factor.
Active Technologies Pulse Generators can be used to set up continuous or triggered pulse streams and offers flexibility to address the most challenging applications like big physics, automated testing, microwaves, modulators, wireless communication, medical and chemistry.
The combination of fast edge generation, excellent dynamic range and easy to use user interface go perfectly on large experiments areas such colliders, lasers modulations, detectors and strips silicon emulation.
Radar or Sonar systems perfectly match with these generators to better test and prove complex detection systems.
| ANALOG CHANNELS | DIGITAL CHANNELS | MULTI-CHANNEL | SAMPLE RATE | BANDWIDTH | RECORD LENGTH | VERTICAL RESOLUTION |
OUTPUT FREQUENCY RANGE
|
|---|---|---|---|---|---|---|---|
|
4 |
32 |
32 Analog / 256 Digital |
1 GS/s Interpolated ? 250 MS/s Real Time |
125 MHz |
2 MS/CH |
15 |
125 MHz
|
- 2 or 4 channel configuration with a maximum output of: 12 Vpp, 50 Ohm ? 24 Vpp, Open circuit.
- Synchronize multiple devices for up to 32 channels
- Flexibility: Arbitrary and Direct Digital Synthesis (DDS) waveform generation
- Modulation: built-in modulation capabilities:AM, PM,FM, ASK,PSK,FSK
- Mixed signal generation: analog and digital pattern generation
- 1 GS/s Sample Rate Interpolated ? 250 MS/s Real Time
- 125 Mhz Bandwidth
- Long Memory: 2 Mpts/Ch
- 16 bit Resolution
- 2 and 4 channel models
- Arbitrary and Direct Digital Synthesis (DDS) modes
- Sweep and Burst mode
- Modulation: AM,FM,PM,ASK,FSK,PSK
- Sweep and Burst mode
- Synchronize Multiple Devices for up to 32 Channels
- Easy access to basic functiongenerator mode
- Digital Pattern Generator: 18 or 36 channels
- PWM Mode
- SDK software package available for Microsoft Visual Studio and LabView
- USB 2.0 PC Interface
- 19″ Rackmount option (1104 and 1104D only)
