AWG-GS2500
Pulse Generators
Active Technologies Pulse and Pattern generators offer wide output range and a rise time faster than 70 ps.
The modular structure of the systems allows to build multiple channel systems in a compact form factor.
Active Technologies Pulse Generators can be used to set up continuous or triggered pulse streams and offers flexibility to address the most challenging applications like big physics, automated testing, microwaves, modulators, wireless communication, medical and chemistry.
The combination of fast edge generation, excellent dynamic range and easy to use user interface go perfectly on large experiments areas such colliders, lasers modulations, detectors and strips silicon emulation.
Radar or Sonar systems perfectly match with these generators to better test and prove complex detection systems.
New Generation Waveforms for Complex Real-World Signals
High bandwidth and high resolution AWGs help you to generate with confidence complex signals like digital modulations and RF stimuli for functional and performance tests.

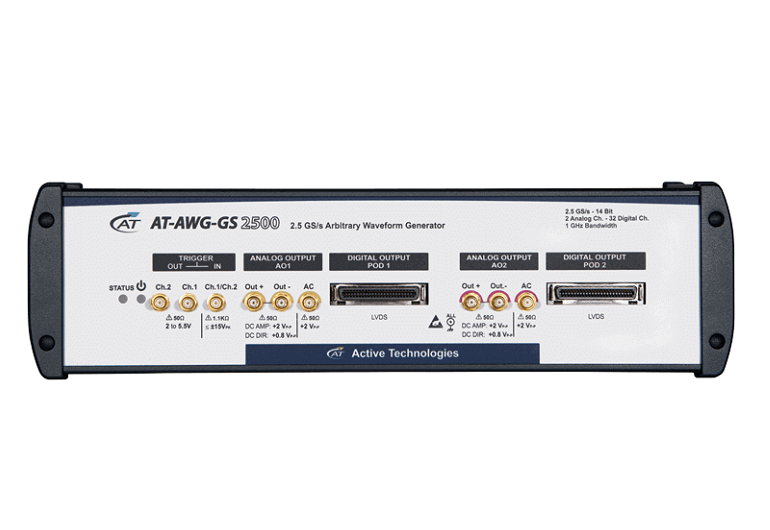

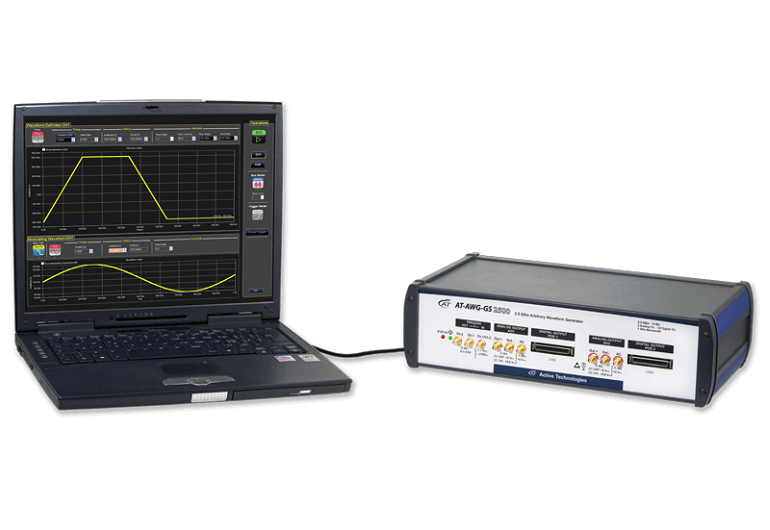

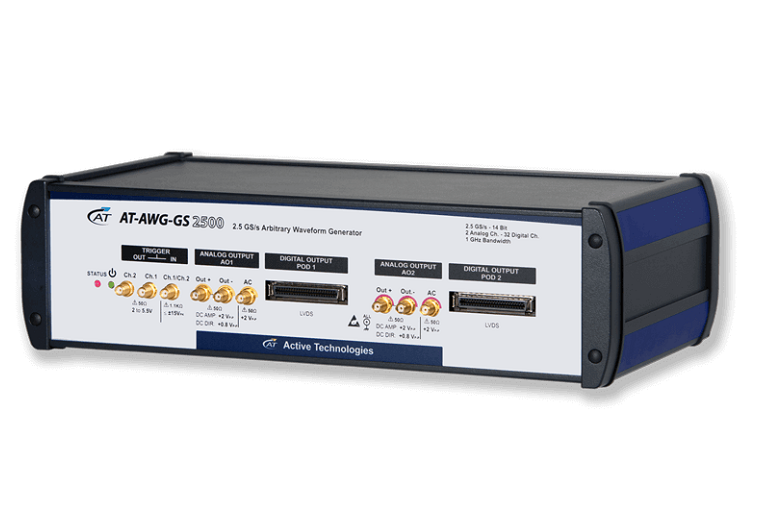

AT-AWG-GS 2500, by combining 2.5 GS/s with 14 Bit Vertical Resolution, gives you high performance analog and digital waveforms to meet demanding for test signals and applications where speed, resolution and quality is an issue.
- RF Signal Generation
- Digital Modulations
- Output Selection: AC amp, Direct DAC, DC amp
- Very Low Harmonic Distortion
- High Speed Digital Outputs
- Real Time Data Streaming and Processing
- Multi-Instrument Synchronization
- Arbitrary, DDS and Function Generator modes
- 2.5 GS/s Real Time Sample Rate
- 14 Bit Resolution
- 2 Channels
- Memory Size: up to 64MS/channel
- > 1 GHz Analog Bandwidth
- Direct DAC Output : 1.6 Vpp Differential / 0.8 Vpp S.E. > 1 GHz Bandwidth
- DC Coupled Output : 4 Vpp Differential / 2 Vpp S.E. > 600 MHz Bandwidth
- AC Output : -10 dBm to +10 dBm > 1GHz Bandwidth
- Harmonic distortion: < -65 dBc
- Non-harmonic spurious: < -74 dBc (1kHz to 1 GHz)
- Multi Channel Synchronization : 10 ps resolution skew control
- Arbitrary, DDS and Function Generator modes
- Advanced Waveform Sequencer
- Digital Pattern Generator: 16/32 Bits @ 1250/625 Mbps
- USB 2.0 PC Interface
