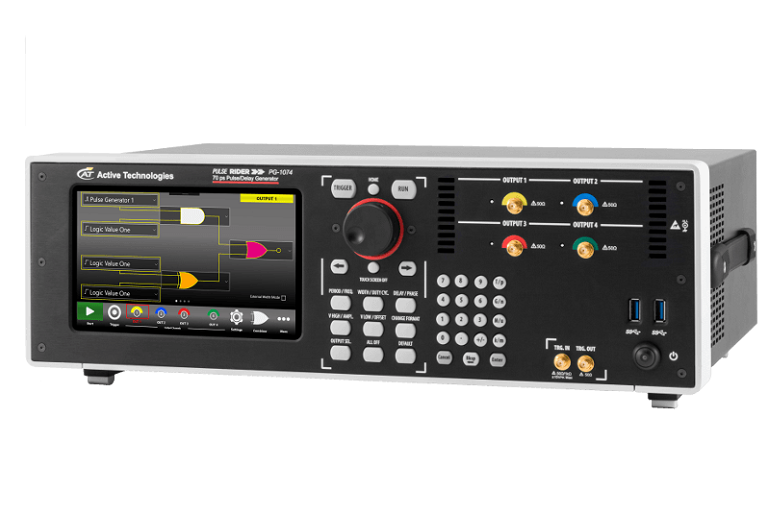

PG-1074

주요 스펙

Pulse frequency
  • :0.125 Hz to 125 MHz (Single pulse mode)
channel
  • :4 channel
Rise/fall time
  • :< 70 ps fixed
Amplitude
  • :10 mVpp to 5 Vpp
Pulse width
  • :< 300 ps to > 1 s
The Pulse Rider Series offers premium signal integrity with the easiest to use touch screen display interface (SimpleRider™).
The Generation of pulses requires only a few screen touches.
The output Voltage can be adjusted up to 5 Volts pk-pk in a window of ±5 Volts with 70 ps edge rate (based on RiderEdge™ technology) and transitions with minimal overshoot and ringing.
Its innovative hardware architecture provides the possibility to generate advanced pulse sequences, such as double pulse or quad pulse, with fully independent timing parameters.

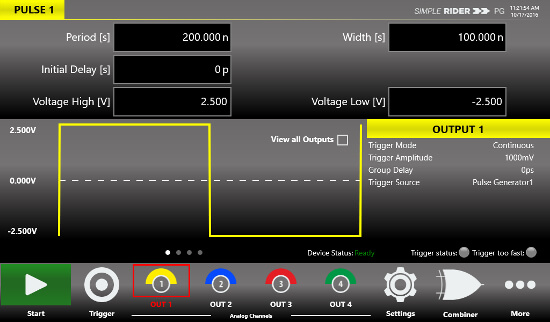

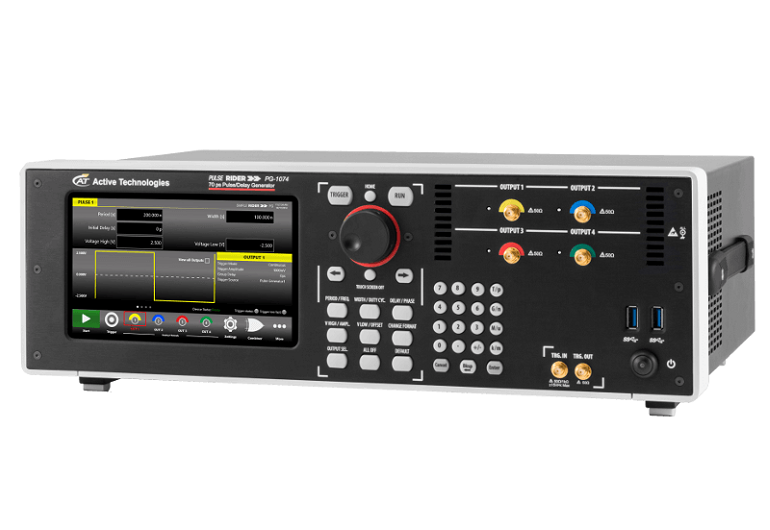

SimpleRider Pulse Touch User Interface
Simple Rider UI is designed for touch and it has been developed to put all the capabilities of the modern Pulse and Waveform Generators right at your fingertips.

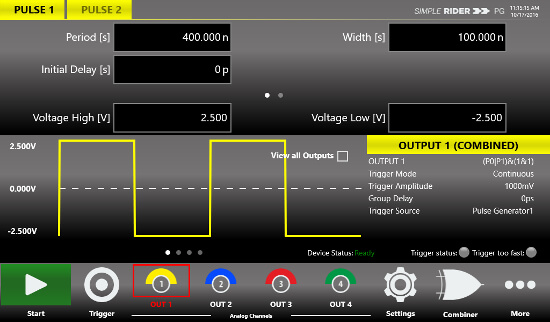

All instrument controls and parameters are accessed through an intuitive UI that recalls the simplicity of Tablets and modern smart phones: touch features and gestures are available to engineers and scientists to create single or multiple pulses (dual, triple and quadruple pulse mode) in few touches.

  - Big physics applications
  - Experiments colliders
  - Lasers modulation
  - Detectors
  - Strips silicon emulation
  - Mass spectroscopy
  - TDT and TDR applications
  - Radar and sonar systems
  - Semiconductors tests

  - Up to 4 channels
  - < 70 ps rise/fall time (20%-80%)
  - Adjustable output level from 10 mVpp to 5 Vpp
  - Adjustable baseline offset ± 2.5 V
  - Maximum repetition rate 500 MHz per channel
  - Pulse width from 300 ps to > 1 s
  - Width resolution 10 ps
  - continuous, single, burst, gated, external trigger mode
  - Trigger in to output jitter < 35ps RMS
  - 19″ rack-mount kit available (3U space required)

Pulse Generators

Active Technologies Pulse and Pattern generators offer wide output range and a rise time faster than 70 ps.
The modular structure of the systems allows to build multiple channel systems in a compact form factor.
Active Technologies Pulse Generators can be used to set up continuous or triggered pulse streams and offers flexibility to address the most challenging applications like big physics, automated testing, microwaves, modulators, wireless communication, medical and chemistry.
The combination of fast edge generation, excellent dynamic range and easy to use user interface go perfectly on large experiments areas such colliders, lasers modulations, detectors and strips silicon emulation.
Radar or Sonar systems perfectly match with these generators to better test and prove complex detection systems.
CHANNELS RISE/FALL TIME (20%-80%) AMPLITUDE BASELINE OFFSET PULSE WIDTH TIMING RESOLUTION
2 ? 4
< 70 ps fixed
pk-pk 10 mVpp to 5 Vpp Adj
± 2.5 V Adj
< 300 ps to > 1 s
Typ. 10 ps

  - Big physics applications
  - Experiments colliders
  - Lasers modulation
  - Detectors
  - Strips silicon emulation
  - Mass spectroscopy
  - TDT and TDR applications
  - Radar and sonar systems
  - Semiconductors tests

  - Up to 4 channels
  - < 70 ps rise/fall time (20%-80%)
  - Adjustable output level from 10 mVpp to 5 Vpp
  - Adjustable baseline offset ± 2.5 V
  - Maximum repetition rate 500 MHz per channel
  - Pulse width from 300 ps to > 1 s
  - Width resolution 10 ps
  - continuous, single, burst, gated, external trigger mode
  - Trigger in to output jitter < 35ps RMS
  - 19″ rack-mount kit available (3U space required)
