AWG-4022
Pulse Generators
Active Technologies Pulse and Pattern generators offer wide output range and a rise time faster than 70 ps.
The modular structure of the systems allows to build multiple channel systems in a compact form factor.
Active Technologies Pulse Generators can be used to set up continuous or triggered pulse streams and offers flexibility to address the most challenging applications like big physics, automated testing, microwaves, modulators, wireless communication, medical and chemistry. The combination of fast edge generation, excellent dynamic range and easy to use user interface go perfectly on large experiments areas such colliders, lasers modulations, detectors and strips silicon emulation.
Radar or Sonar systems perfectly match with these generators to better test and prove complex detection systems.
Time to Reinvent Advance Signal Generator

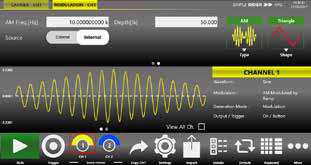

The ARB Rider Series offers premium signal integrity with the easiest to use touch screen display interface (SimpleRider™).

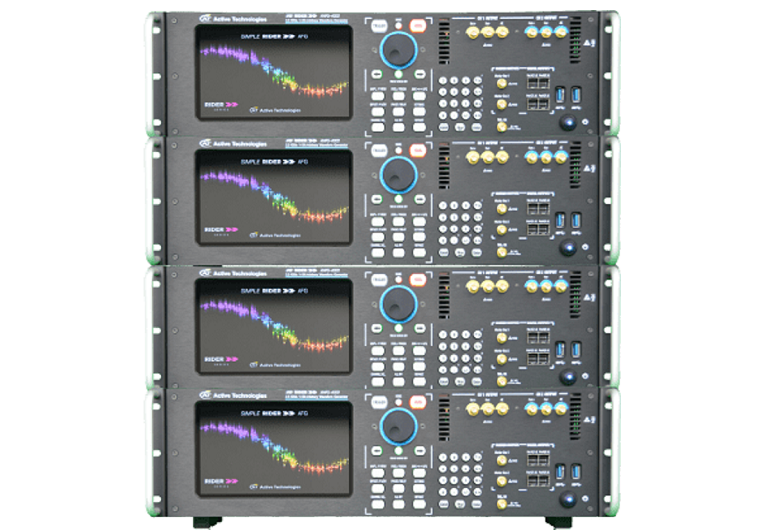

Up to four instruments can be synchronized together in order to build a real 8 channel waveform generator system
- Touch Screen display and Soft Keyboard
- Dual Analog Channel + 32 Digital Channels
- Touch Gesture
- Trigger, view, generate and sync

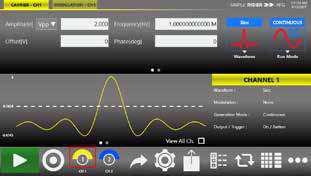

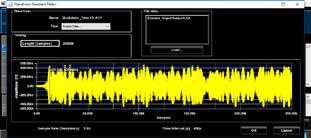

- Create Easily waveforms and pulses with Simple Rider UI
- AFG and DPG all in one instrument
- 2.5 GS/s, 14 Bit Vertical Resolution
- Minimum Edge time down to 350 ps
- Maximum dynamic range up to 5Vpp into 50 ohms
- Up to 64 Mpts per Channel
- 16-32 Digital Channels in synchronous with analog Generation
- Multi Instrument Synchronization: up to 8 Analog Channels

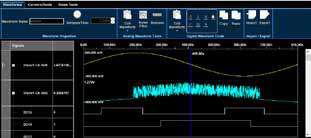

- SW User Interfaces: Expert Rider for AWG mode and Simple Rider for AFG mode
| ANALOG CHANNELS |
DIGITAL CHANNELS |
MULTI-CHANNEL | SAMPLE RATE |
BANDWIDTH | RECORD LENGTH |
VERTICAL RESOLUTION |
OUTPUT FREQUENCY RANGE |
MAXIMUM
OUTPUT
VOLTAGE |
|---|---|---|---|---|---|---|---|---|
|
2
|
16/32 | 8/128 | 2.5 GS/s | > 1 GHz | 64 MS/CH | 14 | 1 GHz | 5Vpp |
