Vertical system
| ||
| Number of channels | RTE1022 / RTE1032 / RTE1052 / RTE1102 / RTE1152 / RTE1202 | 2 |
| RTE1024 / RTE1034 / RTE1054 / RTE1104 / RTE1154 / RTE1204 | 4 | |
| Analog bandwidth (?3 dB) at 50 Ω | RTE1022 / RTE1024 | ≥ 200 MHz |
| RTE1032 / RTE1034 | ≥ 350 MHz | |
| RTE1052 / RTE1054 | ≥ 500 MHz | |
| RTE1102 / RTE1104 | ≥ 1 GHz | |
| RTE1152 / RTE1154 | ≥ 1.5 GHz | |
| RTE1202 / RTE1204 | ≥ 2 GHz | |
| Rise time | RTE1022 / RTE1024 | < 1.75 ns |
| RTE1032 / RTE1034 | < 1 ns | |
| RTE1052 / RTE1054 | < 700 ps | |
| RTE1102 / RTE1104 | < 350 ps | |
| RTE1152 / RTE1154 | < 233 ps | |
| RTE1202 / RTE1204 | < 175 ps | |
| Impedance | 50 Ω ± 1,5 %, 1 MΩ ± 1 % || 16 pF ± 1 pF(meas.) | |
| Input sensitivity | max. bandwidth in all ranges | 50 Ω: 500 μV/div to 1 V/div 1 MΩ: 500 μV/div to 10 V/div |
| Resolution | 8 bit (7-bit ENOB) | |
| with high resolution decimation (sampling rate reduction) | 16 bit | |
| with RTE-K17 high definition option (no sampling rate reduction) | 16 bit | |
|
Acquisition system
| ||
| Realtime sampling rate | max. 5 Gsample/s on each channel | |
| Acquisition memory | standard configuration, per channel/1 channel active |
RTE 2-channel model: 10/20 Msample RTE 4-channel model: 10/40 Msample |
| max. upgrade (RTE-B102 option), per channel/1 channel active |
RTE 2-channel model: 50/100 Msample RTE 4-channel model: 50/200 Msample | |
| Acquisition rate | > 1 000 000 waveforms/s | |
| Decimation modes | any combination of decimation mode and waveform arithmetics | sample, peak detect, high resolution, root mean square |
| Waveform arithmetics | off, envelope, average | |
|
Horizontal system
| ||
| Timebase range | 50 ps/div bis 50 s/div | |
| Timebase accuracy | after delivery/calibration | ±5 ppm |
| Channel deskew | ±100 ns | |
|
Trigger system
| ||
| Trigger types | edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, serial pattern, TV/video, serial bus trigger (optional) | |
| Sensitivity | definition of trigger hysteresis | can be set automatically or manually from 0 div to 5 div |
|
Analysis and measurement functions

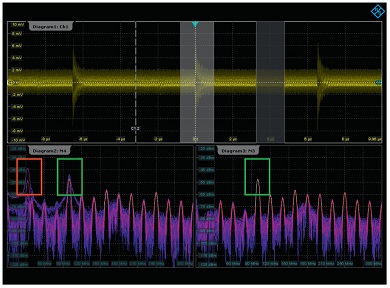

| ||
| Automated measurements | 77 measurement functions | |
| Cursor measurements | 2 cursor sets, each consisting of two horizontal and two vertical cursors | |
| Waveform mathematics | 4 math waveforms; mathematics, logical operations, comparison, FIR filter, FFT | |
| MSO option | ||
| Digital channels | 16 (2 logic probes) | |
| Input impedance | 100 k || 4 pF | |
| Sampling rate | 5 Gsample/s per channel | |
| Acquisition memory | 100 Msample per channel | |
| Parallel buses | up to 4 | |
|
일반 사양
| ||
| 사이즈 | W x H x D | 427 mm × 249 mm × 204 mm (16.81 in × 9.8 in × 8.03 in) |
| 무게 | without options, nominal | 8,6 kg (18.96 lb) |
| 디스플레이 | 10.4" LC TFT 컬러 터치스크린, 1024 × 728 픽셀 (XGA) | |
| 인터페이스 | 1 Gbit/s LAN, 4 × USB 2.0, GPIB (optional), 외부모니터용 DVI, 외부트리거, 트리거 출력 | |
02) 6264.1921
HOME > 제조사별 >
RTE1000 시리즈 오실로스코프
주요 스펙
- Bandwidth
-
- :200 MHz, 350 MHz, 500 MHz, 1 GHz
- Sampling rate
-
- :5 Gsample/s
- Memory
-
- :200 Mpts
- Acqousition Rate
-
- :1,000,000 wfms/s (업계최고)
- Display
-
- :10.4

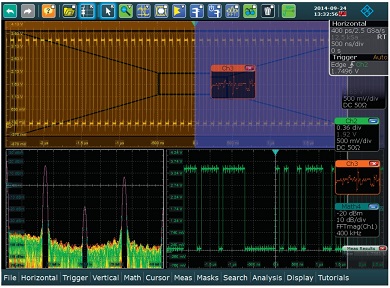

RTE1000 시리즈 오실로스코프
- 최대 16 bit Vertical Resolution 지원
- 초당 1,000,000 wfms/s 의 빠른 업데이트 속도
- 임베디드 시스템 분석을 위한 MSO 및 16개의 로직채널 지원
- 사용자가 원하는 대로 파형의 배치가 가능한 멀티 그리드 기능 (windows7)
-저장된 설정을 손쉽게 불러올 수 있는 SaveSet Tool 기능
- 최적화된 터치스크린, 멀티화면 및 스마트 메뉴 구조
- 메모리에 저장된 결과를 Replay 할 수 있는 히스토리 기능
- 위반 / 불량 신호에 대한 분석이 가능한 마스크테스트
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
RTE 시리즈 오실로스코프 (Specifications)
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
RTE Digital Oscilloscope Scope of the art
RTE1000 시리즈 오실로스코프 옵션사항
구매, 기술, 렌탈 문의 이성종 과장 010-4812-3482 / sjlee3482@gmail.com
하드웨어 옵션
-
RTE-B1 (Order No. 1317.4961.02) Mixed Signal, 400 MHz 5 Gsample/s, 16 channels, 100 Msample per channel
-
RTE-B10 (Order No. 1317.4978.02) GPIB Interface Remote interface in line with IEC 625-2 (IEEE 488.2)
-
RTE-B18 (Order No. 1317.7002.02) SSD Additional removable SSD with disk size >240 GB (nom.). Preinstalled Windows 7
-
RTE-B19 (Order No. 1317.7019.02) Additional HDD Additional removable HDD with disk size ≥ 500 Gbyte (nom.). Preinstalled Windows 7
-
RTE-B101 (Order No. 1326.1155.02) Memory Option 20 Msample per channel
-
RTE-B102 (Order No. 1326.1161.02) Memory Option 50 Msample per channel
-
RTE-B200 (Order No. 1326.1384.02) Upgrade of the R&S?RTE1022/4 oscilloscope to 350 MHz bandwidth
-
RTE-B201 (Order No. 1326.1390.02) Upgrade of the R&S?RTE1022/4 oscilloscope to 500 MHz bandwidth
-
RTE-B202 (Order No. 1326.1403.02) Upgrade of the R&S?RTE1022/4 oscilloscope to 1 GHz bandwidth
-
RTE-B203 (Order No. 1326.1410.02) Upgrade of the R&S?RTE1022/4 oscilloscope to 1.5 GHz bandwidth
-
RTE-B204 (Order No. 1326.1426.02) Upgrade of the R&S?RTE1022/4 oscilloscope to 2 GHz bandwidth
-
RTE-B205 (Order No. 1326.1432.02) Upgrade of the R&S?RTE1032/4 oscilloscope to 500 MHz bandwidth
-
RTE-B206 (Order No. 1326.1449.02) Upgrade of the R&S?RTE1032/4 oscilloscope to 1 GHz bandwidth
-
RTE-B207 (Order No. 1326.1455.02) Upgrade of the R&S?RTE1032/4 oscilloscope to 1.5 GHz bandwidth
-
RTE-B208 (Order No. 1326.1461.02) Upgrade of the R&S?RTE1032/4 oscilloscope to 2 GHz bandwidth
-
RTE-B209 (Order No. 1326.1478.02) Upgrade of the R&S?RTE1052/4 oscilloscope to 1 GHz bandwidth
-
RTE-B210 (Order No. 1326.1484.02) Upgrade of the R&S?RTE1052/4 oscilloscope to 1.5 GHz bandwidth
-
RTE-B211 (Order No. 1326.1490.02) Upgrade of the R&S?RTE1052/4 oscilloscope to 2 GHz bandwidth
-
RTE-B212 (Order No. 1326.1503.02) Upgrade of the R&S?RTE1102/4 oscilloscope to 1.5 GHz bandwidth
-
RTE-B213 (Order No. 1326.1510.02) Upgrade of the R&S?RTE1102/4 oscilloscope to 2 GHz bandwidth
-
RTE-B214 (Order No. 1326.1526.02) Upgrade of the R&S?RTE1152/4 oscilloscope to 2 GHz bandwidth
Software Options
-
RTE-K1 (Order No. 1326.1178.02) : I²C/SPI Serial Triggering and Decoding
-
RTE-K2 (Order No. 1326.1184.02) UART/RS-232 Serial Triggering and Decoding
-

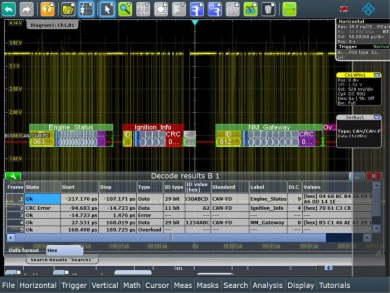

RTE-K3 (Order No. 1326.1190.02) CAN/LIN Serial Triggering and Decoding
-
RTE-K4 (Order No. 1326.1203.02) FlexRay™ Serial Triggering and Decoding
-
RTE-K5 (Order No. 1326.1210.02) I²S/LJ/RJ/TDM Serial Triggering and Decoding
-
RTE-K6 (Order No. 1326.1226.02) MIL-1553 Serial Triggering and Decoding
-
RTE-K7 (Order No. 1326.1232.02) ARINC 429 Serial Triggering and Decoding
-
RTE-K8 (Order No. 1326.1332.02) Ethernet Decoding
-

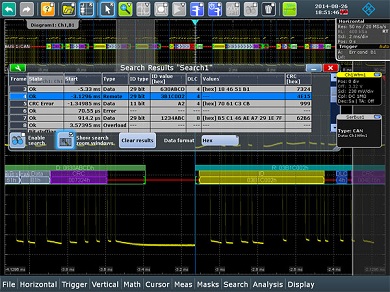

RTE-K9 (Order No. 1326.1249.02) CAN-FD Serial Triggering and Decoding
-
RTE-K10 (Order No. 1323.1603.02) SENT Serial Triggering and Decoding
-
RTE-K17 (Order No. 1326.1261.02) High Definition vertical resolution up to 16 bit
-
RTE-K31 (Order No. 1326.1278.02) Power Analysis
-
RTE-K50 (Order No. 1326.1326.02) Manchester and NRZ Triggering & Decoding
-
RTE-K55 (Order No. 1326.1255.02) MDIO Serial Triggering and Decoding
-
RTE-K60 (Order No. 1326.1610.02) USB 1.0/1.1/2.0/HSIC Triggering and Decoding
Probes
-
RT-ZP10 (Order No. 1409.7550.00) Passive Probe, 500 MHz, passive, 10 :1, 10 MΩ II 9.5 pF, max. 400 V (RMS)
-
RT-ZH10 (Order No. 1409.7720.02) High-voltage probe, 400 MHz, passive, high-voltage, 100:1, 50 MΩ II 7.5 pF, 1 kV (RMS) (CAT II)
-
RT-ZH11 (Order No. 1409.7737.02) High-voltage probe, 400 MHz, passive, high-voltage, 1000:1, 50 MΩ II 7.5 pF, 1 kV (RMS) (CAT II)
-
RT-ZS10E (Order No. 1418.7007.02) Active single-ended probe, 1.0 GHz, active, 1 MΩ II 0.8 pF
-
RT-ZS10 (Order No. 1410.4080.02) Active single-ended probe, 1.0 GHz, active, 1 MΩ II 0.8 pF, R&S?ProbeMeter, micro button
-
RT-ZS20 (Order No. 1410.3502.02) Active single-ended probe 1.5 GHz, active, 1 MΩ II 0.8 pF, R&S?ProbeMeter, micro button
Active single-ended probe 1.5 GHz, active, 1 MΩ II 0.8 pF, ProbeMeter, micro button -
RT-ZS30 (Order No. 1410.4309.02) Active single-ended probe, 3.0 GHz, active, 1 MΩ II 0.8 pF, ProbeMeter, micro button
-
RT-ZD01 (Order No. 1422.0703.02) High-voltage differential probe, 100 MHz, high-voltage, active, differential, 8 MΩ II 3.5 pF, 1 kV (RMS) (CAT III)
-
RT-ZD10 (Order No. 1410.4715.02) Active differential probe, 1.0 GHz, active, differential, 1 MΩ II 0.6 pF, ProbeMeter, micro button, incl. 10.1 external attenuator 1 MΩ II 1.3 pF, 70 V DC, 46 V AC (peak),
-
RT-ZD20 (Order No. 1410.4409.02) Active differential probe, 1.5 GHz, active, differential, 1 MΩ II 0.6 pF, R&S?ProbeMeter, micro button
-
RT-ZD30 (Order No. 1410.4609.02) Active differential probe, 3.0 GHz, active, differential, 1 MΩ II 0.6 pF, R&S?ProbeMeter, micro button
-
RT-ZC05B (Order No. 1409.8204.02) Current probe, 2 MHz, current, AC/DC, 0.01 V/A, 500 A (RMS)
-
RT-ZC10 (Order No. 1409.7750.02) Current probe, 10 MHz, current, AC/DC, 0.01 V/A, 150 A (RMS)
-
RT-ZC10B (Order No. 1409.8210.02) Current probe, 10 MHz, current, AC/DC, 0.01 V/A, 150 A (RMS)
-
RT-ZC20 (Order No. 1409.7766.02) Current probe, 100 MHz, current, AC/DC, 0.1 V/A, 30 A (RMS)
-
RT-ZC20B (Order No. 1409.8233.02) Current probe 100 MHz, current, AC/DC, 0.1 V/A, 30 A (RMS),
Rohde & Schwarz probe interface
Probe accessories
-
RT-ZA1 (Order No. 1409.7566.00) Accessory Set for RT-ZP10 passive probe (2.5 mm probe tip)
-
RT-ZA2 (Order No. 1416.0405.02) Spare Accessory Set for RT-ZS10/RT-ZS10E/RT-ZS2/RT-ZS30
-
RT-ZA3 (Order No. 1416.0411.02) Pin set for RT-ZS10/RT-ZS10E/RT-ZS20/RT-ZS30
-
RT-ZA4 (Order.No. 1416.0428.02) Mini Clips
-
RT-ZA5 (Order No. 1416.0434.02) Micro Clips
-
RT-ZA6 (Order No. 1416.0440.02) Lead Set
-
RT-ZA7 (Order No. 1417.0609.02) Pin Set for RT-ZD20/RT-ZD30
-
RT-ZA9 (Order No. 1417.0909.02) N(m) Adapter for RT-Zxx oscilloscope probes for use with signal and spectrum analyzers
-
RT-ZA10 (Order No. 1416.0457.02) SMA Adapter
-
RT-ZA13 (Order No. 1409.7789.02) Probe Power Supply
-
RT-ZA15 (Order No. 1410.4744.02) External Attenuator, 10:1, 2.0 GHz, 1.3 pF, 70 V DC, 46 V AC (peak) for R&S?RT-ZD20/30 probes
Accessories
-
RTO-Z1 (Order No. 1317.6970.02) Front Cover, Protects the RTO oscilloscope front
-
RTO-Z3 (Order No. 1304.9118.02) Soft Case, Stores the R&S?RTO oscilloscope and accessories
-
RTO-Z4 (Order No. 1317.7025.02) Transit case, Protects the R&S?RTO oscilloscope and accessories during transport
-
RTO-Z5 (Order No. 1317.7031.02) Probe case, Stores active and passive probes and accessories at the back of the oscilloscope
-
RT-ZF20 (Order No. 1800.0004.02) Power Deskew Fixture, Deskew fixture for Current and voltage probes. Automatic deskew support by R&S?RTO-K31 power option.
-
HZ-14 (Order No. 1026.7744.03) Probe Set for E and H Near-field Measurements Detecting EMC trouble spots
-
HZ-15 (Order No. 1147.2736.02) Compact Probe Set for E and H Near-Field Measurements, 30 MHz to 3 GHz for E and H near-field emission measurements with test receivers and spectrum analyzers
-
HZ-16 (Order No. 1147.2720.02) Preamplifier 3 GHz, 20 dB, Power Adapter 100 V to 230 V, for R&S?HZ-15
-
ZZA-RTO (Order No. 1304.8286.00) 19" Rack Adapter For mounting R&S?RTO/R&S?RTE digital oscilloscopes 6 RU high in a standard 19" rack
