VOASM (Variable Optical Attenuator, Single mode)

주요 스펙

Wavelength 1
  • :1270 to 1350 nm
wavelength 2
  • :1510 to 1590 nm
Attenuation range
  • :IL to 40 dB
Attenuation step
  • :0.01 dB
Insertion loss
  • :1.35 dB
Variable Optical Attenuator, Single-mode

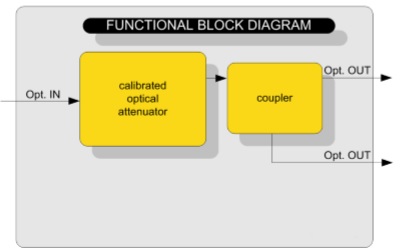

The VOAxM-1 is a Variable Optical Attenuator module that plugs in to the XBERT and ParalleX Chassis. Covering wavelength ranges of 1270nm - 1350nm / 1510nm - 1590nm. The VOA module also incorporates a coupler with monitor output, allowing simultaneous measurement of optical power. When used in the XBERT chassis with Bit error rate tester, Clock, XFPTest module and power meter modules, users can perform receiver sensitivity tests with one instrument.

Characteristics
 - Calibrated Multimode or Singlemode VOA
 - Attenuation range: 40dB
 - Attenuation step size: 0.01dB
 - Monitor Output (10%)
 - Changeable and cleanable optical adapter (FC, LC and SC available)

Applications

 - Optical loss simulation
 - Sensitivity measurement
 - Variable optical source (optical source required)
 - BER measurement
 - EDFA characterization
Characteristics
 - Calibrated Multimode or Singlemode VOA
 - Attenuation range: 40dB
 - Attenuation step size: 0.01dB
 - Monitor Output (10%)
 - Changeable and cleanable optical adapter (FC, LC and SC available)

Applications

 - Optical loss simulation
 - Sensitivity measurement
 - Variable optical source (optical source required)
 - BER measurement
 - EDFA characterization
