OPM-X (Optical power meter)

주요 스펙

Wavelength range
  • :800 to 1700 nm
Dynamic range
  • :-70 dBm to +10 dBm
Resolution
  • :0.01 dBm
Measure unit
  • :Watts, dBm, relative P/Pref
Receptable
  • :FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, LC/APC, ST
Optical Power Meter
The OPM-1 is an Optical Power Meter module that plugs in to the XBERT and ParalleX Chassis. The module has a wide dynamic range of +10 to -70dBm over a wavelength range of 800nm to 1700nm. A universal interchangeable optical receptacle allows for mating with popular connector styles. Optical Power measurements can be displayed in dBm or Watts. When used in the XBERT chassis with EBERT, Clock and XFP modules, users can perform receiver sensitivity tests with one instrument.

Characteristics
 - Input Range: -70dBm to 10dBm
 - Wavelength: 800nm to 1700nm

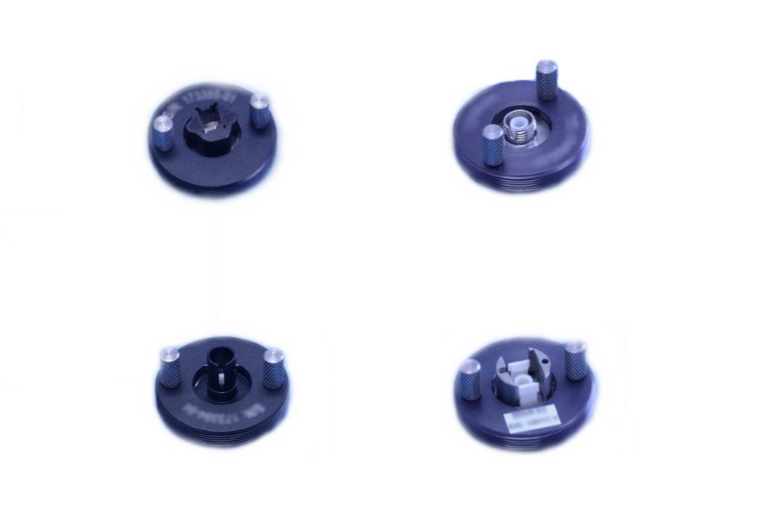

 - Interchangeable optical receptacles

Applications
 - Power-level monitoring
 - Sensitivity and specificity measurement
 - Components characterization


OPTION 170 :
 - Center wavelength: 850 nm (λC)
 - Full width at half maximum: 100 nm

OPTION 171:
 - Center wavelength: 1310 nm (λC)
 - Full width at half maximum: 10 nm

OPTION 172:
 - Center wavelength: 1550 nm (λC)
 - Full width at half maximum: 10 nm
Characteristics
 - Input Range: -70dBm to 10dBm
 - Wavelength: 800nm to 1700nm
 - Interchangeable optical receptacles

Applications
 - Power-level monitoring
 - Sensitivity and specificity measurement
 - Components characterization


OPTION 170 :
 - Center wavelength: 850 nm (λC)
 - Full width at half maximum: 100 nm

OPTION 171:
 - Center wavelength: 1310 nm (λC)
 - Full width at half maximum: 10 nm

OPTION 172:
 - Center wavelength: 1550 nm (λC)
 - Full width at half maximum: 10 nm
OPTION 170 :
 - Center wavelength: 850 nm (λC)
 - Full width at half maximum: 100 nm

OPTION 171:
 - Center wavelength: 1310 nm (λC)
 - Full width at half maximum: 10 nm

OPTION 172:
 - Center wavelength: 1550 nm (λC)
 - Full width at half maximum: 10 nm
