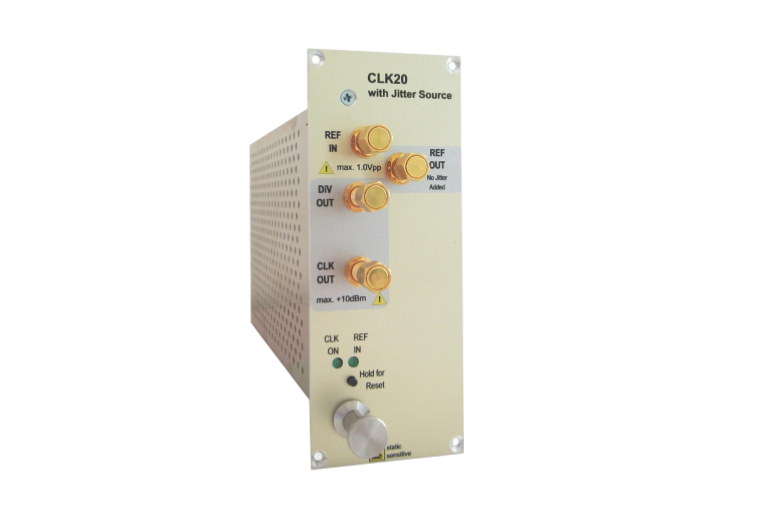

CLK20 (High speed clock source module)

주요 스펙

Frequency
  • :78.125 MHz to 20 GHz
Amplitude
  • :-10 dBm to 0 dBm and 6 dBm
Duty cyble
  • :45 ~55 %
DCA Trigger output
  • :78.125 to 156.25 MHz (Option. 161)
Jitter Modulation
  • :1 kHz to 80 MHz (Option. 154)
High speed clock source

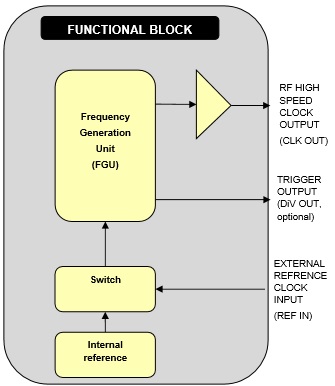

Clk20 is a clock source module that plugs into the XBERT and ParalleX? Chassis. The clock works over a continous range from 78.125 MHz to 20 GHz MHz. Functionally it is not bound to the EBERT modules hence it can be used for driving any other devices, too. It has an optional divided clock output to offer a subrate trigger for oscilloscopes that have limited trigger bandwidth.
It works very well as clock multiplier either.

Characteristics

 - Resolution: 1ps (+/- 5%)
 - Max. phase shiftting: 200ps in each direction
 - 6 independent Output channels
 - Single-ended clock input
 - Ref. Clock output
 - Prospectively: multiple phase shifter interconnection for 12 channels and more

Applications
 - Pattern generator/BERT TX-Channel multiplexing
 - Cross talk measurement
Characteristics
 - Resolution: 1ps (+/- 5%)
 - Max. phase shiftting: 200ps in each direction
 - 6 independent Output channels
 - Single-ended clock input
 - Ref. Clock output
 - Prospectively: multiple phase shifter interconnection for 12 channels and more

Applications
 - Pattern generator/BERT TX-Channel multiplexing
 - Cross talk measurement

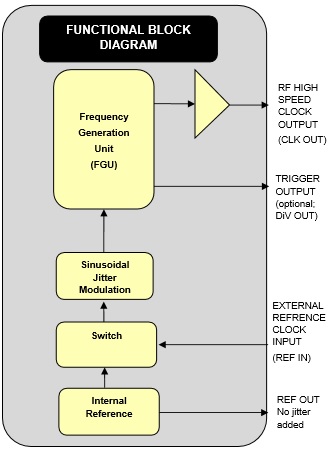

Option. 161 : Optionally the module can be equipped with additional sinusoical jitter generation.
Option. 154 : Optionally the module can be qeupped with an additional Trigger output (DIV OUT)
