PHS6 (Phase Shifter)

주요 스펙

CLK Frequency
  • :275 MHz to 900 MHz (input)
CLK Voltage
  • :500 mV to 1400 mV (input)
Output Signal
  • :6 independ output signals
Phase Resolution
  • :1 ps
Phase shift total
  • :550 ps
Phase Shifter

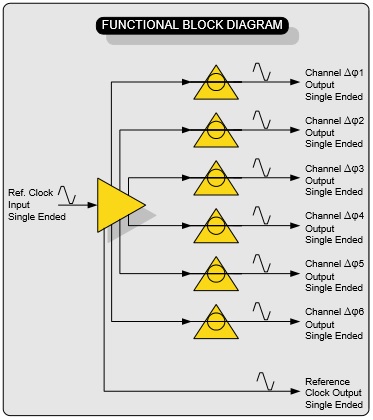

Phase shifter module is suitable for applications which are required a precision phase alignment between multiple BERT channels. Prepare the phases between the channels e.g. before multiplexing the data to 40G or find the best phase positions to eliminate cross talk. Roughly phase alignment can be done by use of the control placed on the front panel. Luceo’s GUI provides a simple user interface to control the phase settings precisely down to 1ps steps.

Characteristics
 - Resolution: 1ps (+/- 5%)
 - Max. phase shiftting: 200ps in each direction
 - 6 independent Output channels
 - Single-ended clock input
 - Ref. Clock output
 - Prospectively: multiple phase shifter interconnection for 12 channels and more

Applications
 - Pattern generator/BERT TX-Channel multiplexing
 - Cross talk measurement
Characteristics
 - Resolution: 1ps (+/- 5%)
 - Max. phase shiftting: 200ps in each direction
 - 6 independent Output channels
 - Single-ended clock input
 - Ref. Clock output
 - Prospectively: multiple phase shifter interconnection for 12 channels and more

Applications
 - Pattern generator/BERT TX-Channel multiplexing
 - Cross talk measurement
