EED 10-6 (Electrical Error Detector 2)

주요 스펙

Data Rate
  • :1 Gbps to 14.4 Gbps
Data Format
  • :NRZ
PRBS pattern
  • :7, 9, 10, 11, 15, 21, 23, 31
Input Amplitude
  • :100 mVpp to 1000 mVpp
Clock Frequecy
  • :1 to 14.4 GHz (input)
Electrical Error Detector
The broadband error detector module plugs into the XBERT and ParalleX Chassis. The electrical ED generates electrical data streams from 2.0 Gbps up to 14.4 Gbps. All PRBS patterns are supported as well as user patterns. Operation is done via GUI on computer. Front panel indicators give immediate status for Tx data.

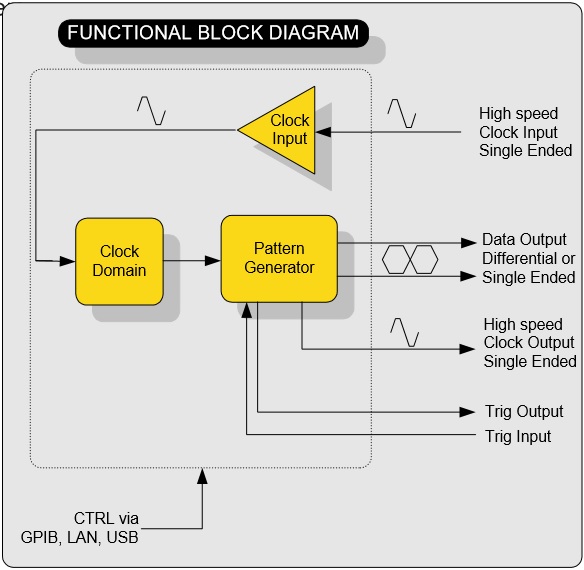

Characteristics

Key Features and Benefits
- Data Rates 2 Gbps to 14.4Gbps
- Single ended input, optionally differential
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3
- 64Kbit user defined (Optional PRBS20, PRBS28)
- Variable sampling point
- Automatic alignment
- Clock output
Applications
- Protocol independent Test of
  Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR
  Ethernet , 10 GbE, 40Gbase, 100Gbase
  CEI, SFP+, XFP/XFI
- Traffic generator
- Components verification
- Serial BUS and Backplane Test
Characteristics

Key Features and Benefits
- Data Rates 2 Gbps to 14.4Gbps
- Single ended input, optionally differential
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3
- 64Kbit user defined (Optional PRBS20, PRBS28)
- Variable sampling point
- Automatic alignment
- Clock output
Applications
- Protocol independent Test of
  Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR
  Ethernet , 10 GbE, 40Gbase, 100Gbase
  CEI, SFP+, XFP/XFI
- Traffic generator
- Components verification
- Serial BUS and Backplane Test
