EED 428-1 (Electrical Error Detector, 4 channel)

주요 스펙

Data Rate
  • :22 Gbps to 28.4 Gbps
Channel
  • :4 Channels
PRBS pattern
  • :7, 9, 15, 23, 31
Input Amplitude
  • :100 mVpp to 1100 mVpp
Clock Frequecy
  • :8.5 to 14.1 GHz (input)
Electrical Error Detector 4-channel

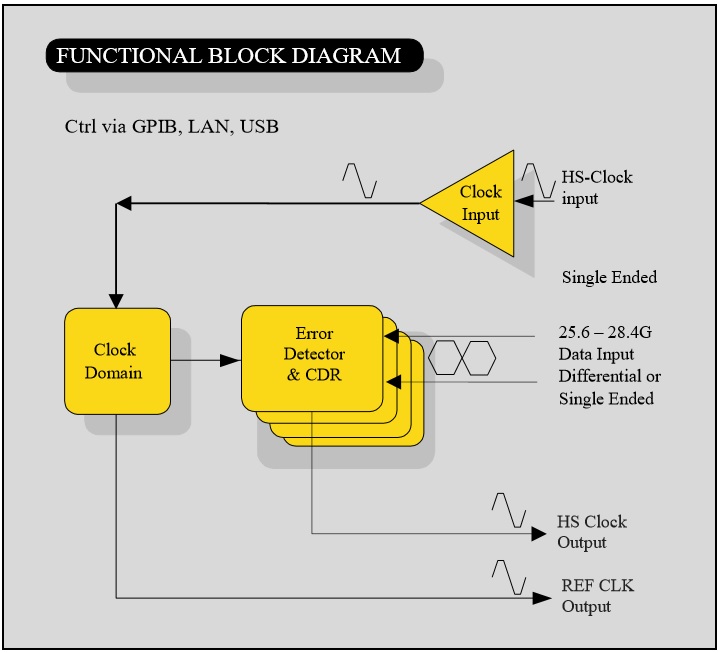

The Error Detector module plugs into the XBERT and ParalleX Chassis. The electrical ED receives electrical data streams from 22 Gbps up to 28.4 Gbps. The PRBS patterns 7,9,15,23,31 are supported. Operation is done via GUI on computer. High speed and low speed clock trigger output provides an electrical trigger synchronous with the data for use with an oscilloscope or other test equipment. Front panel indicators give immediate status for Rx data.

Characteristics
- Data Rates 22 Gbps to 28.4 Gbps
- PRBS7, PRBS9, PRBS15, PRBS23, PRBS31
- Adjustable RX threshold
- Clock output

Applications
- Protocol independent Test of
  Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC, 32GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR, EDR
  Ethernet, 10 GbE, 40Gbase, 100Gbase
  CFP2, CF4, CEI, SFP+, XFP/XFI
- Traffic detector
- Components verification
- Serial BUS and Backplane Test
Characteristics
- Data Rates 22 Gbps to 28.4 Gbps
- PRBS7, PRBS9, PRBS15, PRBS23, PRBS31
- Adjustable RX threshold
- Clock output

Applications
- Protocol independent Test of
  Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC, 32GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR, EDR
  Ethernet, 10 GbE, 40Gbase, 100Gbase
  CFP2, CF4, CEI, SFP+, XFP/XFI
- Traffic detector
- Components verification
- Serial BUS and Backplane Test
