E-BERT-3 (Electrical BERT Module)

주요 스펙

Data Rate
  • :9.9 Gbps to 11.3 Gbps
Data Format
  • :NRZ
PRBS pattern
  • :7, 9, 10, 11, 15, 21, 23, 31
Output P to N
  • :400 mVpp to 600 mVpp
Output Jitter
  • :1.5 ps (RMS)
Electrical BERT

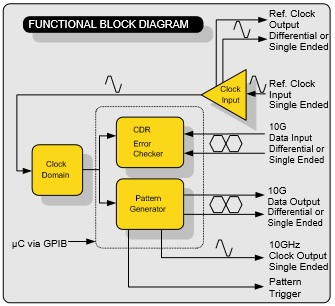

Our electrical BERT is a 10G BERT Module that plugs in to the XBERT and ParalleX™ Chassis. The BERT Module can generate and receive electrical data from 9.9 Gb/s up to 11.3 Gb/s. Optionally the BERT module can operate at 4.9 Gb/s up to 5.7 Gb/s. PRBS and user programmable patterns can be changed via an easy to use GUI. A pattern trigger output provides an electrical trigger synchronous with the B ERT pattern for use with an oscilloscope or other test equipment. Optional Pre-emphasis (option 118) applies frequency selective attenuation to the data signal at the transmit side of the BERT to compensate for losses in the transmit medium. Front panel indicators give immediate status for Tx and Rx Data.

Characteristics
- Data Rates 9.9 to 11.3 Gb/s. Optional 4.9 to 5.7 Gb/s
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3 and 64Kbit user defined (Optional PRBS20, PRBS28)
- 10GHz Clock Output (single ended)
- Single error and error rate injection: E-3 to E-15
- BER Test Error Detection: 0.5 to < 10E-15
- Gating-time: up to 5000h
- Pre-emphasis of Transmit signal for distance EQ
- Ideal BER Tester For Production Line, up to 7 BERTs in 19" housing
- Subrated clock output

Applications
- Protocol independent 10G BER Test of OC192, Fibrechannel, FB-DIMM, Infiniband, 10 GbE, 40Gbase, 100Gbase, CEI, SFP+, XFP/XFI
- Signal generator
- Components verification
- Serial BUS and Backplane Test
- FEC Test
Characteristics
- Data Rates 9.9 to 11.3 Gb/s. Optional 4.9 to 5.7 Gb/s
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3 and 64Kbit user defined (Optional PRBS20, PRBS28)
- 10GHz Clock Output (single ended)
- Single error and error rate injection: E-3 to E-15
- BER Test Error Detection: 0.5 to < 10E-15
- Gating-time: up to 5000h
- Pre-emphasis of Transmit signal for distance EQ
- Ideal BER Tester For Production Line, up to 7 BERTs in 19" housing
- Subrated clock output

Applications
- Protocol independent 10G BER Test of OC192, Fibrechannel, FB-DIMM, Infiniband, 10 GbE, 40Gbase, 100Gbase, CEI, SFP+, XFP/XFI
- Signal generator
- Components verification
- Serial BUS and Backplane Test
- FEC Test
