E-BERT-5 (Elecrical BERT Module)
Electrical BERT

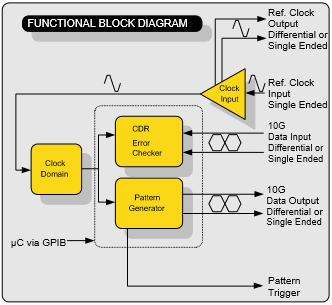

Our 10G Serial BERT is a Bit Error Rate Test module that plugs in to the XBERT and ParalleX™ Chassis. Electrical BER Tester can generate and receive electrical data from 8.5 Gb/s (option: 8.0Gb/s) up to 11.3 Gb/s. User programmable PRBS patterns can be changed via an easy to use GUI. A pattern trigger output provides an electrical trigger synchronous with the pattern for use with an oscilloscope or other test equipment. Front panel indicators give immediate status for Tx and Rx Data.
Characteristics
- Data Rates 8.5Gb/s (option: 8.0) to 11.3 Gb/s.
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3 and 64Kbit user defined (Optional PRBS20, PRBS28)
- Adjustable TX Amplitude
- Output crossing adjustable from 20% to 80%
- Single error and error rate injection: E-3 to E-15
- BER detection: 0.5 to < 10E-15
- Gating-time: up to 5000h
- High sensivity
- Pattern Trigger output
- Subrated clock output
Applications
- Protocol independent BER Tester of OC-192, Fibrechannel, FB-DIMM, Infiniband, 10 GbE, 40Gbase, 100Gbase, CEI, SFP+, XFP/XFI
- Traffic generator
- Components verification
- Serial BUS and Backplane Test
Characteristics
- Data Rates 8.5Gb/s (option: 8.0) to 11.3 Gb/s.
- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31, CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3 and 64Kbit user defined (Optional PRBS20, PRBS28)
- Adjustable TX Amplitude
- Output crossing adjustable from 20% to 80%
- Single error and error rate injection: E-3 to E-15
- BER detection: 0.5 to < 10E-15
- Gating-time: up to 5000h
- High sensivity
- Pattern Trigger output
- Subrated clock output
Applications
- Protocol independent BER Tester of OC-192, Fibrechannel, FB-DIMM, Infiniband, 10 GbE, 40Gbase, 100Gbase, CEI, SFP+, XFP/XFI
- Traffic generator
- Components verification
- Serial BUS and Backplane Test
