EPG 10-6 (Electrical Pattern Generator 2)

주요 스펙

Data Rate

:2 Gbps to 14.5 Gbps

Data Format

:NRZ

PRBS pattern

:7, 9, 10, 11, 15, 21, 23, 31

Output Amplitude

:500 mVpp to 1000 mVpp

Output Jitter

:200 fs (RMS)

설명 Description
사양 Specification
옵션 Option

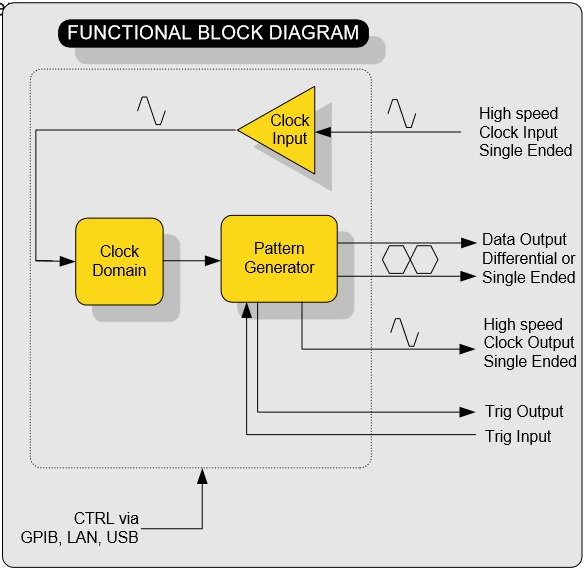

Electrical Pattern Generator

The broadband pattern generator module plugs into the XBERT and ParalleX Chassis. The electrical PG generates electrical data streams from 2.0 Gb/s up to 14.4 Gb/s. All PRBS patterns are supported as well as user patterns. Operation is done via GUI on computer. A pattern trigger output provides an electrical trigger synchronous with the pattern for use with an oscilloscope or other test equipment. Front panel indicators give immediate status for Tx data.

- Data Rates 2 Gbps to 14.4Gbps

- PRBS7, PRBS9, PRBS10, PRBS11, PRBS15, PRBS21, PRBS23, PRBS31 CJPATT, SSPS-64, 0101, 1100, K28.5, K28,7, 48A.1, 48A.2, 48A.3

- 64Kbit user defined (Optional PRBS20, PRBS28)

- Adjustable TX Amplitude

- Single error and error rate injection: E-3 to E-15

- Pattern Trigger output

- Clock output

Applications

- Protocol independent Test of
  Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR
  Ethernet, 10 GbE, 40Gbase, 100Gbase
  CEI, SFP+, XFP/XFI

- Traffic generator

- Components verification

- Serial BUS and Backplane Test

- Data Rates 2 Gb/s to 13 Gb/s, optionally 14.4Gb/s
