Electrical Pattern Generator 4-channel

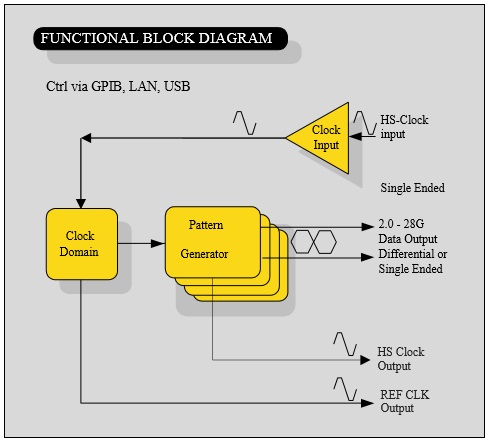

The broadband pattern generator module plugs into the XBERT and ParalleX Chassis. The electrical PG generates electrical data streams from 2.0 Gb/s up to 28.4 Gb/s. The PRBS patterns 9,15,31 are supported. Operation is done via GUI on computer. High speed and low speed clock trigger output provides an electrical trigger synchronous with the data for use with an oscilloscope or other test equipment. Front panel indicators give immediate status for Tx data.

- Data Rates 2 Gb/s to 28.4 Gb/s

- PRBS9, PRBS15, PRBS31

- Adjustable TX Amplitude

- Clock output

Applications

- Protocol independent Test of

Fibre Channel: 2GFC, 4GFC, 8GFC, 10GFC, 16GFC, 32GFC
  SONET: OC-48, OC-192
  SDH: STM-16, STM-64
  Infiniband: SDR, DDR, QDR, FDR, EDR

Ethernet, 10 GbE, 40Gbase, 100Gbase
CFP2, CF4, CEI, SFP+, XFP/XFI

- Traffic generator

- Components verification

- Serial BUS and Backplane Test
