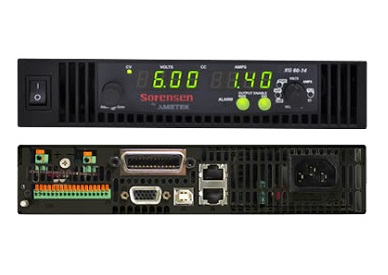

XG-850 시리즈 파워서플라이

주요 스펙

전력
  • :670 W ~ 850 W
전압
  • :6 V ~ 600 V
전류
  • :1.4 A ~ 110 A
인터페이스
  • :RS-232, GPIB(옵션), LAN (옵션)

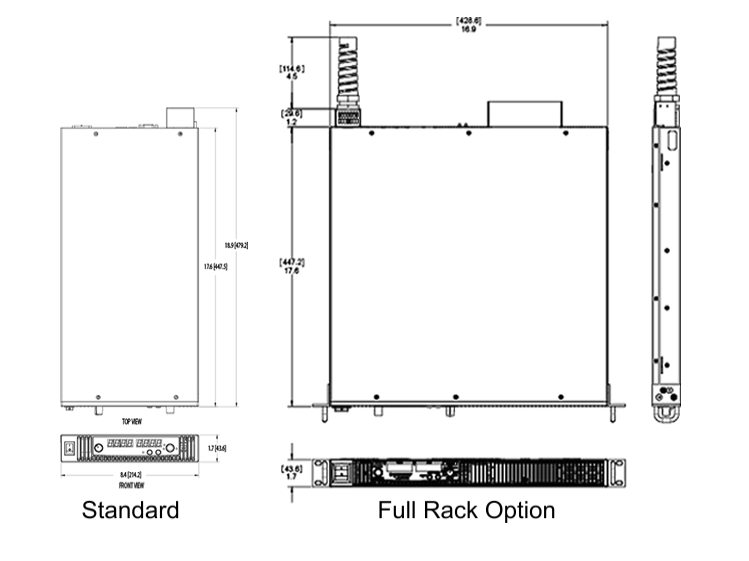

XG 시리즈는 850W 용량으로 높이 1U와 폭은 1/2U로서 용량에 비해 작으며 전압 6~600V, 전류 1.4~110A으로 다양한 다채널을 구성 할 수 있는 장점과 USB, RS232, RS485 통신 포트가 표준으로 강점을 갖춤.


구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com

특  징
 - Adjustable analog programming range(2.0-10V,0.1V steps)
  - Constant voltage / constant current auto crossover
  - Programmable foldback time delay
  - Remote enable/disable
  - Three memory settings
  - OVP,UVP,OCP,OTP & fan failure protection features
  - Software calibration
  - Universal input 85 - 265 volts AC
  - Active Power Factor Correction (PFC) 0.99
  - RS-232/RS-485, and USB 2.0 digital interfaces standard
  - Isolated and non-Isolated analog programming interfaces are standard
  - Acxiliary outputs 5 volt and 15 volt (0.4A)
  - Remote Sensing

모 델 별  사 양
모   델
전    압
전    류
용   량
XG 6-110 6 V 110 A 670 W
XG 8-100 8 V 100 A 810 W
XG 12-70 12 V 70 A 850 W
XG 20-42 20 V 42 A 850 W
XG 33-25 33 V 25 A 835 W
XG 40-21 40 V 21 A 850 W
XG 60-14 60 V 14 A 850 W
XG 80-10.5 80 V 10.5 A 850 W
XG 100-8.5 100 V 8.5 A 860 W
XG 150-5.6 150 V 5.6 A 850 W
XG 300-2.8 300 V 2.8 A 850 W
XG 600-1.4 600 V 1.4 A 850 W


구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


Sorensen XG 850 Watt Specifications
Output Ratings
Model Output Voltage 1 Output Current 2, 9 Output Power 3
XG 6-110 6 V 110 A 670 W
XG 8-100 8 V 100 A 810 W
XG 12-70 12 V 70 A 850 W
XG 20-42 20 V 42 A 850 W
XG 33-25 33 V 25 A 835 W
XG 40-21 40 V 21 A 850 W
XG 60-14 60 V 14 A 850 W
XG 80-10.5 80 V 10.5 A 850 W
XG 100-8.5 100 V 8.5 A 860 W
XG 150-5.6 150 V 5.6 A 850 W
XG 300-2.8 300 V 2.8 A 850 W
XG 600-1.4 600 V 1.4 A 850 W
Line Regulation
Model Voltage (0.005% of rated
output voltage +2 mV) 4		 Current (0.01% of rated
output current +1 mA) 5
XG 6-110 2.3 mV 13 mA
XG 8-100 2.4 mV 12 mA
XG 12-70 2.6 mV 9 mA
XG 20-42 3.0 mV 6.2 mA
XG 33-25 3.7 mV 4.5 mA
XG 40-21 4 mV 4.1 mA
XG 60-14 5 mV 3.4 mA
XG 80-10.5 6 mV 3.1 mA
XG 100-8.5 7 mV 2.9 mA
XG 150-5.6 9.5 mV 2.6 mA
XG 300-2.8 17 mV 2.3 mA
XG 600-1.4 32 mV 2.1 mA
Load Regulation
Model Voltage (0.005% of rated
output voltage + 2 mV) 6		 Current (0.02% of rated
output current +4 mA) 7
XG 6-110 2.3 mV 27 mA
XG 8-100 2.4 mV 25 mA
XG 12-70 2.6 mV 19 mA
XG 20-42 3.0 mV 13.4 mA
XG 33-25 3.7 mV 10 mA
XG 40-21 4 mV 9.2 mA
XG 60-14 5 mV 7.8 mA
XG 80-10.5 6 mV 7.1 mA
XG 100-8.5 7 mV 6.7 mA
XG 150-5.6 9.5 mV 6.1 mA
XG 300-2.8 17 mV 5.6 mA
XG 600-1.4 32 mV 5.3 mA
Output Ratings
Model Output Ripple (rms, 300 kHz) Output Noise
(p-p, 20 MHz)
Voltage Current 8 Voltage
XG 6-110 8 mV 200 mA 50 mV
XG 8-100 8 mV 180 mA 50 mV
XG 12-70 8 mV 120 mA 50 mV
XG 20-42 8 mV 75 mA 50 mV
XG 33-25 8 mV 60 mA 50 mV
XG 40-21 8 mV 45 mA 50 mV
XG 60-14 8 mV 35 mA 50 mV
XG 80-10.5 8 mV 25 mA 80 mV
XG 100-8.5 8 mV 20 mA 80 mV
XG 150-5.6 10 mV 16 mA 100 mV
XG 300-2.8 25 mV 10 mA 150 mV
XG 600-1.4 50 mV 6 mA 250 mV
1. Maximum output voltage is guaranteed to be ≤ 0.2% of the rated voltage at zero output setting, using the front panel or digital remote programming modes.
2. Maximum output current is guaranteed to be ≤ 0.4% of the rated current at zero output setting, using the front panel or digital remote programming modes, and when measured with rated load resistance.
3. Total output power is also based on AUX1 Output Voltage (5 V) and AUX1 Output Current (0.5 A) and AUX2 Output Voltage (15 V) and AUX2 Output Current (0.5 A).
4. From 85?132 Vac or 170?265 Vac, constant load.
5. From 85?132 Vac or 170?265 Vac, constant load.
6. From no load to full load, constant input voltage.
7. For load voltage change, equal to the unit voltage rating, constant input voltage.
8. For 6 V models the current ripple is measured at 2?6 V output voltage and full output current. For all other models, the current ripple is measured at 10?100% output voltage and full output current.
Note: All specifications are subject to change.
Output Ratings
Model Maximum Recommended Remote Sense Line Drop Compensation per Line 10 Up-prog. Response Time, 0~Vmax 11 Efficiency (100/200 VAC input) 12
XG 6-110 1 V 60 ms 75/77%
XG 8-100 1 V 60 ms 77/80%
XG 12-70 1 V 60 ms 79.5/82.5%
XG 20-42 1.5 V 60 ms 82/85%
XG 33-25 2 V 60 ms 83/86%
XG 40-21 2 V 60 ms 83/87%
XG 60-14 3 V 60 ms 83/87%
XG 80-10.5 5 V 100 ms 83/87%
XG 100-8.5 5 V 100 ms 83/87%
XG 150-5.6 5 V 100 ms 83/87%
XG 300-2.8 5 V 150 ms 83/87%
XG 600-1.4 5 V 250 ms 83/87%
Output Ratings
Model Down-prog. Response Time: Full Load Down-prog. Response Time: No Load Over-Voltage Trip Point
XG 6-110 50 ms 300 ms 0.5?7.5 V
XG 8-100 50 ms 400 ms 0.5?10 V
XG 12-70 50 ms 500 ms 1?15 V
XG 20-42 50 ms 600 ms 1?24 V
XG 33-25 50 ms 700 ms 2?39 V
XG 40-21 50 ms 800 ms 2?44 V
XG 60-14 50 ms 900 ms 3?66 V
XG 80-10.5 80 ms 1000 ms 3?95 V
XG 100-8.5 100 ms 1200 ms 3?125 V
XG 150-5.6 150 ms 1800 ms 3?180 V
XG 300-2.8 150 ms 2200 ms 5?330 V
XG 600-1.4 250 ms 3500 ms 5?660 V
Regulatory Approvals
Safety
 CSA 22.2 No. 61010-1, 60950-1-07 and UL61010-1, UL60950-1-(2nd Ed).19  Marked with cCSAus, CE for EMC & low voltage directive
EMC Complies with EN61326-1
Complies with EN55022, Class B, FCC Part 15B for conducted emissions
Complies with EN55022, Class A, FCC Part 15A for radiated emissions
Complies with EN61000-4 series of standards for immunity
9. When using remote sense, the total of the load voltage and the load line drops must not exceed the rated output of the power supply. For example, for an XG 6-110 in an application with 1 V of
load line loss (0.5 V/Line), the maximum available load voltage would be 6?1= 5 V. Note: The unit may operate at higher output voltages than this, but there is no guarantee that the power supply
will meet performance specifications. Ultimately, the upper limit of the output voltage will be determined by internal circuitry of the power supply (non-adjustable.)
10. With rated, resistive load.
11. At maximum output power.
12. Double insulation on primary to secondary isolation barriers. Basic insulation primary to protective earth ground.
Applies to all footnotes: Programming and Readback: RS-232, RS-485, USB built in. GPIB, Ethernet optional. Specifications are guaranteed from 1% to 100% of the rated output voltage, current, and power.
Note: All specifications are subject to change.
Environmental Specifications (Indoor use)
Operating Temperature Range 32°F to 122°F, 100% load (0°C to 50°C)
Storage Temperature Range -4°F to 158°F (?20° C to 70°C)
Operating Humidity Range 30?90% RH (no condensation)
Storage Humidity Range 10?95% RH (no condensation)
Operating Altitude Up to 6,500 feet (2,000 m)
Installation Category II (IEC 1010-1)
Pollution Degree 2 (IEC 1010-1)
Output Performance Specifications
Temperature Coefficient 100 PPM/° C from rated output voltage, after a 30-minute warm-up
Drift (8 hours) 0.05% of rated output voltage & current over an 8 hour interval with constant line, load & temperature, after a 30-minute warm-up
Hold-up Time Typical 20 ms at any rated input line.
Transient Response Time2 Less than 1 ms for 6 V to 60 V models. Less than 2 ms for 80 V to 600 V models
Meter Accuracy 0.5% ± 1 count
Aux Output 1 +5V: +0.4V, ? 0.5V at 0.4A +15V: +1.2V, ? 1.4V at 0.4A
Isolation 4 1500Vac or 2121Vdc between mains terminals and accessible conductive parts / chassis ground.
Output to chassis 18 500Vac.
