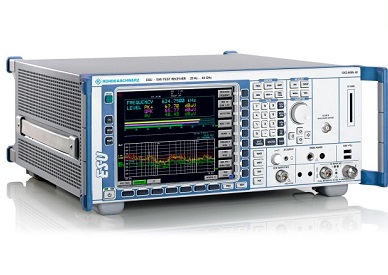

ESU (EMI리시버)

주요 스펙

주파수 범위
  • :20 Hz to 8 / 26.5 / 40 GHz
DANL
  • :-163 dBm
디스플레이 범위
  • :DANL to 137 dBuV
디텍터
  • :Peak, Quasi-peak, Average, RMS, sample, CISPR-Average, CISPR-RMS
Brief Description

The ESU is a family of CISPR 16-1-1-compliant EMI test receivers that meet all civil and military standards for electromagnetic disturbance measurements. The ESU-K53 FFT-based time-domain scan option allows users to perform overview measurements up to 1000 times faster than on standard EMI test receivers. The ESU also features automatic and interactive measurement functions, parallel IF analysis and up to three detectors in parallel including the average detector with meter time constant (CISPR-Average), RMS-Average detector, and APD (amplitude probability distribution to CISPR 16).
　

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com


Key Facts
  -  CISPR 16-1-1규격에 완벽하게 부하하는 리시버
  -  CISPR 와 MIL-STD 구격에 부합하는 측정 대역폭
  -  시간 축 스캔 (FFT) 옵션을 통한 극도로 짧은 측정시간
  -  리시버 모드와 함께 제공하는 실시간 IF 분석
  -  스펙트럼 분석모드를 통한 빠른 EMI 경향 분석
  -  완벽한 리포트 발행 (RFT, PDF, HTML)
  -  20 dB 전치 증폭기 내장 (up to 3.6 GHz as standard)
  -  low-noise 전치 증폭기 옵션 (up to 8 / 26.5 / 40 GHz, ESU-B24)


Features & Benefits
 1) EMI test receiver
     - Full compliance with CISPR 16-1-1 standard
     - Complex, internal preselection
     - (can be switched off in analyzer mode)
     - Integrated 20 dB preamplifier up to 3.6 GHz as standard
     - Integrated low-noise 30 dB preamplifier up to 40 GHz optional available
     - Wide choice of detectors incl. CISPR-AVG and CISPR-RMS
     - CISPR- and MIL-STD-compliant measurement bandwidths
     - User-programmable scan tables (max. 10 subranges)
     - Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
     - Second RF input (max. 1 GHz, pulse-protected)
     - Time-domain measurements (max. 2 million test points, measurement time ≥10 μs/point)
     - Fully and partially automatic measurements (preview measurement, data reduction, final measurement)
 2) Spectrum analyzer
     - Maximum dynamic range and minimum phase noise
     - Sweep time - for span >10 Hz: 2.5 ms to 16 000 s - for zero span: 1 ?s to 16 000 s
     - Resolution bandwidths 10 Hz to 10 MHz in steps of 1/2/3/5
     - FFT, RRC and channel filters
     - Versatile and comprehensive evaluation facilities for lab applications (time-domain power, IP3 marker, noise/phase noise marker, channel/adjacent-channel measurements)

 3) Wide-ranging functionality
     - Correction values (cable loss, antenna transducers) automatically taken into account, user-programmable transducer sets
     - Saving of settings and test results on internal hard disk or via LAN or USB interface (on front and rear panels)
     - Modern processor technology (Celeron M, Windows XP Embedded) and networking (GPIB, LAN, USB), Remote Desktop function
     - Remote control via GPIB or LAN
     - Drivers for LabView, LabWindows/CVI, VXI Plug & Play Instrument
     - Compact design (weight approx. 16 kg)
Key Facts
  -  CISPR 16-1-1규격에 완벽하게 부하하는 리시버
  -  CISPR 와 MIL-STD 구격에 부합하는 측정 대역폭
  -  시간 축 스캔 (FFT) 옵션을 통한 극도로 짧은 측정시간
  -  리시버 모드와 함께 제공하는 실시간 IF 분석
  -  스펙트럼 분석모드를 통한 빠른 EMI 경향 분석
  -  완벽한 리포트 발행 (RFT, PDF, HTML)
  -  20 dB 전치 증폭기 내장 (up to 3.6 GHz as standard)
  -  low-noise 전치 증폭기 옵션 (up to 8 / 26.5 / 40 GHz, ESU-B24)

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com


Features & Benefits
 1) EMI test receiver
     - Full compliance with CISPR 16-1-1 standard
     - Complex, internal preselection
     - (can be switched off in analyzer mode)
     - Integrated 20 dB preamplifier up to 3.6 GHz as standard
     - Integrated low-noise 30 dB preamplifier up to 40 GHz optional available
     - Wide choice of detectors incl. CISPR-AVG and CISPR-RMS
     - CISPR- and MIL-STD-compliant measurement bandwidths
     - User-programmable scan tables (max. 10 subranges)
     - Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
     - Second RF input (max. 1 GHz, pulse-protected)
     - Time-domain measurements (max. 2 million test points, measurement time ≥10 μs/point)
     - Fully and partially automatic measurements (preview measurement, data reduction, final measurement)
 2) Spectrum analyzer
     - Maximum dynamic range and minimum phase noise
     - Sweep time - for span >10 Hz: 2.5 ms to 16 000 s - for zero span: 1 ?s to 16 000 s
     - Resolution bandwidths 10 Hz to 10 MHz in steps of 1/2/3/5
     - FFT, RRC and channel filters
     - Versatile and comprehensive evaluation facilities for lab applications (time-domain power, IP3 marker, noise/phase noise marker, channel/adjacent-channel measurements)

 3) Wide-ranging functionality
     - Correction values (cable loss, antenna transducers) automatically taken into account, user-programmable transducer sets
     - Saving of settings and test results on internal hard disk or via LAN or USB interface (on front and rear panels)
     - Modern processor technology (Celeron M, Windows XP Embedded) and networking (GPIB, LAN, USB), Remote Desktop function
     - Remote control via GPIB or LAN
     - Drivers for LabView, LabWindows/CVI, VXI Plug & Play Instrument
     - Compact design (weight approx. 16 kg)

구매, 기술, 렌탈 문의  이성종 과장 / 010-4812-3482 / sjlee3482@gmail.com

Options
  • R&S?ESU-B18 Order No. 1303.0400.06
    Removable Hard Disk (Flash Card) for R&S? ESU
  • R&S?ESU-B19 Order No. 1303.0600.06
    Second Hard Disk (Flash Card) for R&S? ESU-B18
  • R&S?ESU-B24 Order No. 1157.2100.xx
    Int. low-noise 30 dB preamplifier
  • R&S?ESU-K53 Order No. 1305.8509.02
    Time-Domain Scan (FFT)
  • R&S?FSU-B4 Order No. 1144.9000.02
    OCXO, low aging/improved phase noise at 10 Hz carrier offset
  • R&S?FSU-B9 Order No. 1142.8994.02
    Tracking generator 100 kHz to 3.6 GHz
  • R&S?FSP-B10 Order No. 1129.7246.03
    External Generator Control
  • R&S?FSU-B12 Order No. 1142.9349.02
    Output Attenuator, 0 dB to 70 dB
    requires R&S?FSU-B9
Software Options
  • R&S?FS-K7 Order No. 1141.1796.02
    FM Measurement Demodulator
    for R&S?FSQ/FSU/FSP/FSUP Analyzers and the R&S?ESCI/ESPI Test Receivers
  • R&S?ESPI-K50 Order No. 1106.4386.02
    Trigger for Coverage Measurements
EMI Measurement Software
  • R&S?EMC32-EB Order No. 1300.7010.02
    EMI measurement software, version 9
    basic version for commercial and military standards; hardlock protection
  • R&S?EMC32-K10 Order No. 1117.6840.02
    EMI Auto Test
    Fully automatic disturbance measurements To run the R&S?EMC32-K10 software option, the R&S?EMC32-EB basic package for EMI measurements is required.
  • R&S?EMC32-K11 Order No. 1117.6862.02
    EMC Test Sequencer
    Smart linking of EMC test sequences
    To run the R&S?EMC32-K11 software option, the R&S?EMC32-EB basic package for EMI measurements and/or the R&S?EMC32-S basic package for EMS measurements is required.
