SMBV100A (RF Vector)

주요 스펙

주파수 범위
  • :9 kHz to 3.2 / 6 GHz
레벨 범위
  • :-145 dBm to 15 dBm
SSB Phase Noise
  • :-128 dBc
신호분석 대역폭
  • :up to 160 MHz
주요지원 통신규격
  • :LTE, WiMAX, WLAN a/b/g/n/ac, HSPA+, WCDMA, CDMA, GSM, Bluetooth, DVB
Key Facts

 - 주파수 범위 : 9 kHz to 3.2 GHz / 6 GHz
 - 동급 최고 RF 출력 레벨 : +26 dBm Overrange
 - 디퍼런셜 아날로그 IQ 및 디지털 IQ 출력 지원
 - GNSS (GPS, GLONASS, Galileo, BeiDou, GBAS) 지원
 - Avionics (VOR/ILS, DME) 신호 지원
 - 주요 지원 통신 규격 :
   LTE FDD and TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, WiMAX and all other important digital standards
 - Linux 기반의 가벼운 운용시스템 적용
 - 파워미터 기능 내장
 - Optional baseband generator with realtime coder and arbitrary waveform generator for maximum flexibility
 - Optional ARB-only baseband generators as cost-saving alternatives
 - RF bandwidth of up to 160 MHz with internal baseband generator
 - I/Q modulator with 528 MHz RF bandwidth
 - Optimized for high production throughput
 - Prepared for aerospace and defense applications
 - Low cost of ownership due to simple service concept

　

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


?구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482?　

Brief Description

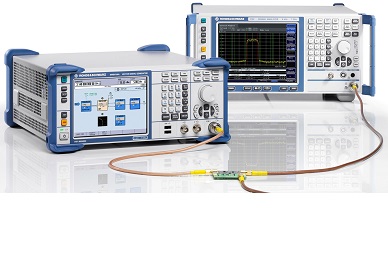

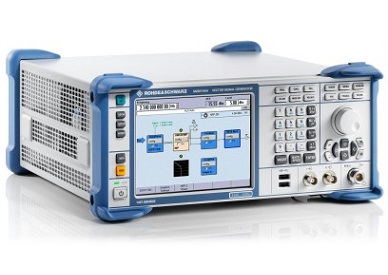

The SMBV100A offers excellent RF performance along with very high output level and short setting times. At the same time, the SMBV100A can be equipped with an internal baseband generator to allow generation of a number of digital standards (e.g.LTE, LTE-Advanced, IEEE802.11ac, GNSS). The wide frequency range from 9 kHz to 6 GHz covers all of the important bands for digital modulation.

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com

Specifications

Frequency
Range SMBV-B103
CW mode 9 kHz to 3.2 GHz
I/Q mode 1 MHz to 3.2 GHz
SMBV-B106
CW mode 9 kHz to 6 GHz
I/Q mode 1 MHz to 6 GHz
Setting time SCPI mode, ALC state ON, CW mode <3 ms
SCPI mode, ALC state ON, I/Q mode <5 ms
SCPI mode, ALC state Table <2.5 ms
SCPI mode, ALC state S&H <7 ms
List mode <1 ms
Level
Maximum output power 1 MHz < f = 6 GHz >+18 dBm (PEP)
Absolute level error 200 kHz < f = 3 GHz <0.5 dB
Additional level error with ALC OFF, S&H This mode is used with I/Q modulation and pulse modulation. <0.25 dB
Output impedance VSWR in 50 Ω system 200 kHz < f = 6 GHz <1.8
Setting time SCPI mode, ALC state ON, CW mode <2.5 ms
SCPI mode, ALC state ON, I/Q mode <5 ms
SCPI mode, ALC state Table <2.5 ms
SCPI mode, ALC state S&H <7 ms
List mode <1 ms
Reverse power 1 MHz < f = 1 GHz 50 W
1 GHz < f = 2 GHz 25 W
2 GHz < f = 6 GHz 10 W
Spectral purity
Harmonics f > 1 MHz; CW, level = 8 dBm
Nonharmonics CW, level > ?10 dBm, >10 kHz carrier offset, f = 1500 MHz (
SSB phase noise 20 kHz carrier offset, 1 Hz measurement bandwidth, CW
f = 100 MHz (?147 dBc typ.)
f = 1 GHz (?127 dBc typ.)
f = 6 GHz (?112 dBc typ.)
Wideband noise attenuator mode AUTO for level > 5 dBm, >10 MHz carrier offset, 1 Hz measurement bandwidth, CW
Supported analog modulation modes
Amplitude modulation standard
Frequency/phase modulation standard
Maximum FM deviation f > 3 GHz 16 MHz
Maximum φM f > 3 GHz 160 rad
Pulse modulation optional,
with SMBV-K22
On/off ratio >80 dB
Rise/fall time 10 % to 90 % of RF amplitude <20 ns, 4 ns (typ.)
Minimum pulse width using the optional
             SMBV-K23 pulse generator		 10 ns
I/Q modulation
Supported systems
(with additional options)		 SMBV-B10 baseband generator required GSM/EDGE/EDGE evolution, 3GPP FDD incl. HSPA/HSPA+,TD-SCDMA, CDMA2000, 1×EV-DO, EUTRA/ LTE, WiMAX IEEE 802.16-2004, Cor1-2005, 802.16e-2005 and 802.16Rev2/D3 , WLAN IEEE 802.11a/b/g/n/ac, NFC A/B/F, Bluetooth, GPS, Glonass, Galileo, HD Radio, XM Radio, Sirius Radio, FM Stereo / RDS, DAB / T-DMB, DVB-H/DVB-T, Tetra Release 2, multicarrier CW
Realtime custom digital modulation SMBV-B10 baseband generator required ASK, FSK, BPSK, QPSK, QPSK 45° offset, OQPSK, p/4-QPSK, p/2-DBPSK, p/4-DQPSK, p/8-D8PSK, 8PSK, 8PSK EDGE, 16QAM, 32QAM, 64QAM, 256QAM, 1024QAM
I/Q modulator bandwidth internal 60 MHz, 120 MHz or 160 MHz, depending on baseband option
external >500 MHz
Maximum waveform length 32 Msample
with SMBV-K511 option 256 Msample
with SMBV-K512 option 1 Gsample
DAC resolution
ACLR WCDMA 3GPP FDD, TM 1/64 69 dBc (typ.)
EVM WCDMA 3GPP FDD, TM 1/64 0.4 % (meas.)
WLAN IEEE 802.11 ac, 160 MHz 0.44 % (meas.)
EUTRA/LTE 0.4 % (meas.)
Connectivity
Remote control IEC/IEEE, Ethernet (LAN), USB
Peripherals USB 2.0
2) PEP = peak envelope power.
3) HD Radio is a proprietary trademark of iBiquity Digital Corp.

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com

GNSS Production Tester
Cost-effective high volume testing of GNSS receivers
RF
  • R&S?SMBV-B103 Order No. 1407.9603.02
    9 kHz to 3.2 GHz
    Frequency range from 9 kHz to 3.2 GHz with electronic level attenuator over full frequency range
  • R&S?SMBV-B106 Order No. 1407.9703.02
    9 kHz to 6 GHz
    Frequency range from 9 kHz to 6 GHz with electronic level attenuator over full frequency range
  • R&S?SMBV-B1 Order No. 1407.8407.02
    Reference Oscillator OCXO
  • R&S?SMBV-B1H Order No. 1419.1602.02
    Reference Oscillator OCXO High Performance
  • R&S?SMBV-B90 Order No. 1407.9303.02
    Phase Coherence
  • R&S?SMBV-K22 Order No. 1415.8019.02
    Pulse Modulator
  • R&S?SMBV-K23 Order No. 1415.8025.02
    Pulse Generator
Baseband
  • R&S?SMBV-B10 Order No. 1407.8607.04
    Baseband Generator
    with Digital Modulation (realtime) and ARB (32 Msample), 120 MHz RF bandwidth
    The baseband generator is able to generate signals in real-time, supports internal signal generation of signals according to a large variety of digital standards and features a 32 Msample ARB memory.
    Requires option Hard disk R&S?SMBV-B92
  • R&S?SMBV-B10F Order No. 1419.2009.02
    Baseband Generator
    for GNSS with High Dynamics, Digital Modulation (realtime) and ARB (32 Msample), 120 MHz RF bandwidth
    The baseband generator is able to generate signals in real-time, supports internal signal generation of signals according to a large variety of digital standards and features a 32 Msample ARB memory.
    Requires option Hard disk R&S?SMBV-B92
    May be subject to export restrictions and therefore not available in all countries and to all customers.
  • R&S?SMBV-B51 Order No. 1407.9003.04
    Baseband Generator
    with ARB (32 Msample), 60 MHz RF bandwidth
    This baseband generator provides an ARB with 32 MSample memory and covers a RF bandwidth of 60 MHz. It is a cost-effective solution for all users who do not need real time signal generation
  • R&S?SMBV-B92 Order No. 1407.9403.02
    Hard Disk (removable)
    The hard disk offers memory space for ARB waveforms and instrument settings.
  • R&S?SMBV-K18 Order No. 1415.8002.02
    Digital Baseband Connectivity
  • R&S?SMBV-K511 Order No. 1419.2544.02
    Memory Extension for ARB to 256 Msample?
    ARB memory extension to 256 MSamples, R&S?SMBV-B10(var.04) or R&S?SMBV-B51(var.04) and R&S?SMBV-B92 required
  • R&S?SMBV-K512 Order No. 1419.2667.02
    Memory Extension for ARB to 1 Gsample
    ARB memory extension to 1 Gsample, R&S?SMBV-K511 required
  • R&S?SMBV-K521 Order No. 1419.2580.02
    RF Bandwidth Extension to 120 MHz
    Baseband extension to 120 MHz RF bandwidth, R&S?SMBV-B51(var.04) required
  • R&S?SMBV-K522 Order No. 1419.2609.02
    RF Bandwidth Extension to 160 MHz
    Baseband extension to 160 MHz RF bandwidth, R&S?SMBV-B10(var.04) or R&S?SMBV-K521 required
Digital Modulation Systems
GNSS and Avionics for the R&S?SMBV100A
Digital Modulation Systems using R&S? WinIQSIM2™
  • R&S?SMBV-K240 Order No. 1415.8231.02
    GSM/EDGE
  • R&S?SMBV-K241 Order No. 1415.8454.02
    EDGE Evolution
  • R&S?SMBV-K242 Order No. 1415.8248.02
    3GPP FDD
  • R&S?SMBV-K243 Order No. 1415.8254.02
    3GPP FDD Enhanced MS/BS Tests incl. HSDPA
  • R&S?SMBV-K244 Order No. 1415.8260.02
    GPS
  • R&S?SMBV-K245 Order No. 1415.8277.02
    3GPP FDD HSUPA
  • R&S?SMBV-K246 Order No. 1415.8283.02
    CDMA2000? incl. 1×EV-DV
  • R&S?SMBV-K247 Order No. 1415.8290.02
    1×EV-DO Rev. A
  • R&S?SMBV-K248 Order No. 1415.8302.02
    IEEE 802.11 (a/b/g)
  • R&S?SMBV-K249 Order No. 1415.8319.02
    IEEE 802.16
  • R&S?SMBV-K250 Order No. 1415.8325.02
    TD-SCDMA
  • R&S?SMBV-K251 Order No. 1415.8331.02
    TD-SCDMA Enhanced BS/MS Tests
  • R&S?SMBV-K252 Order No. 1415.8348.02
    DVB-H/DVB-T
  • R&S?SMBV-K253 Order No. 1415.8525.02
    DAB/T-DMB
  • R&S?SMBV-K254 Order No. 1415.8354.02
    IEEE 802.11n
  • R&S?SMBV-K255 Order No. 1415.8360.02
    EUTRA/LTE
  • R&S?SMBV-K259 Order No. 1415.8377.02
    HSPA+
  • R&S?SMBV-K260 Order No. 1415.8483.02
    Bluetooth EDR
  • R&S?SMBV-K261 Order No. 1415.8383.02
    Multicarrier CW Signal Generation
  • R&S?SMBV-K262 Order No. 1415.8425.02
    Additive White Gaussian Noise (AWGN)
  • R&S?SMBV-K266 Order No. 1415.8683.02
    Galileo
  • R&S?SMBV-K268 Order No. 1415.8502.02
    TETRA Release 2
  • R&S?SMBV-K284 Order No. 1415.8625.02
    LTE Release 9 + Enhanced Features
  • R&S?SMBV-K285 Order No. 1415.8631.02
    LTE Release 10 / LTE-Advanced
  • R&S?SMBV-K286 Order No. 1415.8654.02
    IEEE 802.11ac
  • R&S?SMBV-K287 Order No. 1415.8725.02
    1x EV-DO Rev. B
  • R&S?SMBV-K289 Order No. 1419.1677.02
    NFC A/B/F
  • R&S?SMBV-K294 Order No. 1415.8690.02
    Glonass
Digital Modulation Systems using an external PC Software or Waveforms
Noise Generation
Recommended Extras
  • SMBV100A-Manuals_English, UK Order No. 1407.6062.32
    Hardcopy manuals (in English, UK) R&S?SMBV100A
  • SMBV100A-Manuals_English, US Order No. 1407.6062.39
    Hardcopy manuals (in English, US) R&S?SMBV100A
  • R&S?ZZA-S334 Order No. 1109.4487.00R&S?ZZA-S334 19
    19" Rack Adapter
    For mounting a 3/4 19" housing 3 RU high in a standard 19" rack
  • R&S?NRP-Z92 Order No. 1171.7005.02 / 1171.7005.42R&S?NRP-Z92 Average Power Sensor
    Average Power Sensor
    Accurate average power measurements for EMC applications
    Measurement range: -57 dBm to +33 dBm,
    Frequency range: 9 kHz to 6 GHz,
    N connector
  • R&S?CSNFC-B8 Order No. 1519.5096.02R&S?CSNFC-B8 NFC Forum Reference Equipment
    NFC Forum Reference Equipment
    Set consisting of three listeners, three pollers and two 8-shaped coils for NFC analog measurements.
