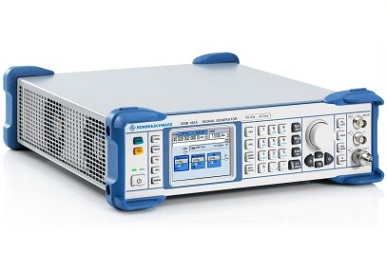

SMB100A (아날로그 신호발생기)

주요 스펙

주파수 범위
  • :9 kHz to 1.1 / 2.2 / 3.2 / 6 / 12 / 31 / 40 GHz
레벨 범위
  • :-120 dBm to 18 dBm
SSB Phase Noise
  • :-128 dBc
Modulation Mode
  • :
인터페이스
  • :USB, LAN, GPIB(옵션)
Key Facts

 - 주파수 범위 9 kHz to 6 GHz or 100 kHz to 40 GHz
 - Stereo/RDS 코드 발생기
 - 중저가형 아날로그 신호 발생기
 - Keysight 장비군과 원격 제어 명령어 호환
 - 128 dBc의 상급 페이즈 노이느 특성
 - 블록 다이어그램 방식의 간편한 GUI
 - Online Help 사용자 메뉴얼 내장
 - Low Noise 지터 클럭 신디사이저
 - Excellent signal characteristics with low SSB phase noise of typ. -128 dBc (at 1 GHz, 20 kHz offset)
 - High output power of typ. up to +27 dBm
 - All important analog modulations with AM, FM/φM and pulse modulation supported
 - Compact size with only two height units and low weigh

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


Brief Description

The compact, versatile SMB100A RF and microwave signal generator with a frequency range up to 40 GHz provides outstanding spectral purity and high output power. In addition, it features easy operation, comprehensive functionality and low cost of ownership.

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com

SMB100A 사양 (Specifications)

Frequency
Frequency range SMB-B101 9 kHz to 1.1 GHz
SMB-B102 9 kHz to 2.2 GHz
SMB-B103 9 kHz to 3.2 GHz
SMB-B106 9 kHz to 6 GHz
SMB-B112/SMB-B112L 100 kHz to 12.75 GHz
SMB-B120/SMB-B120L 100 kHz to 20 GHz
SMB-B140/SMB-B140L 100 kHz to 40 GHz
Setting time SCPI mode < 3 ms
List mode < 1 ms
Level
Maximum output power SMB-B101/-B102/-B103/ SMB-B106/-B112/-B112L
1 MHz < f ≤ 12.75 GHz		 +18 dBm
SMB-B120 with SMB-B31
50 MHz < f ≤ 20 GHz		 +16 dBm
SMB-B120L with SMB-B31
100 MHz < f ≤ 20 GHz		 +19 dBm
SMB-B140 with SMB-B32
50 MHz < f ≤ 40 GHz		 +13 dBm
SMB-B140L with SMB-B32
50 MHz < f ≤ 40 GHz		 +16 dBm
Minimum specified output power SMB-B101/-B102/-B103/-B106
SMB-B112/-B120/-B140		 -120 dBm
SMB-B112L -5 dBm
SMB-B120L/-B140L 0 dBm
Setting time
(without switching of the mechanical attenuator)		 SCPI mode < 2.5 ms
List mode < 1 ms
Spectral purity
SSB phase noise f = 1 GHz, carrier offset = 20 kHz,
1 Hz measurement bandwidth		 < ?122 dBc,
typ. ?128 dBc
f = 10 GHz, carrier offset = 20 kHz,
1 Hz measurement bandwidth		 < ?102 dBc,
typ. ?108 dBc
Harmonics
SMB-B101/-B102/-B103/ SMB-B106/-B112/-B112L 1 MHz < f ≤ 6 GHz; level ≤ 13 dBm 1),
f > 6 GHz; level ≤ 10 dBm 1)		 < ?30 dBc
SMB-B120/-B120L/-B140/-B140L standard; level ≤ 8 dBm 1)
f > 1 MHz < ?30 dBc
with SMB-B25/-B26 low harmonic option, low harmonic filter on, level ≤ 10 dBm 1)
1 MHz < f ≤ 150 MHz < ?30 dBc
150 MHz < f ≤ 3 GHz < ?58 dBc
3 GHz < f ≤ 20 GHz < ?50 dBc
f > 20 GHz < ?60 dBc (meas.)
Supported modulation modes
AM standard
AM depth 0 % to 100 %
FM/φM standard
Maximum FM deviation f = 10 GHz 32 MHz
Maximum φM deviation f = 10 GHz 320 rad
Pulse SMB-K21/-K22 pulse modulator
Rise/fall time < 20 ns, typ. < 5 ns
ON/Off ratio > 80 dB
Minimum pulse width of
pulse generator output		 10 ns

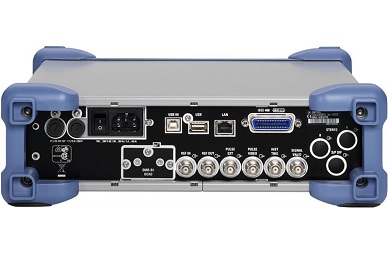

Connectivity
Remote control GPIB IEEE-488.2
Ethernet (TCP/IP),
USB
Peripherals USB
RF and Microwave Signal Generator
Versatile, compact, up to 40 GHz; 170 GHz with upconverter

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


Options
 - SMB-B101       RF Path 9 kHz to 1.1 GHz
 - SMB-B102       RF Path 9 kHz to 2.2 GHz
 - SMB-B103       RF Path 9 kHz to 3.2 GHz
 - SMB-B106       RF Path 9 kHz to 6 GHz
 - SMB-B112       RF Path 100 kHz to 12.75 GHz with electronic step attenuator
 - SMB-B112L      RF Path 100 kHz to 12.75 GHz without step attenuator
 - SMB-B120       RF Path 100 kHz to 20 GHz, with mechanical step attenuator
 - SMB-B120L      RF Path 100 kHz to 20 GHz, without step attenuator
 - SMB-B131       RF Path 100 kHz to 31.8 GHz
 - SMB-B140       RF Path 100 kHz to 40 GHz, with mechanical step attenuator
 - SMB-B140L      RF Path 100 kHz to 40 GHz, without step attenuator
 - SMB-B140N      RF Path 100 kHz to 40 GHz, minimum pulse width limited
 - SMB-B1           OCXO Reference Oscillator
                         Only one of the SMB-B1 or SMB-B1H options can be installed.
 - SMB-B1H         OCXO Reference Oscillator, high performance
                         Only one of the SMB-B1 or SMB-B1H options can be installed.
 - SMB-B5           Stereo/RDS Coder
                         Only available with an SMB-B101/102/103/106 frequency option.
 - SMB-B25          Harmonic Filter Option 150 MHz to 20 GHz
                         (only available with SMB-B120, SMB-B120L)
 - SMB-B26          Harmonic Filter Option150 MHz to 40 GHz
                         (only available with SMB-B140, SMB-B140L)
  • R&S?SMB-B30 Order No. 1407.1160.02
    Reverse Power Protection, 100 kHz to 12.75 GHz
    Only available with an R&S?SMB-B112 or R&S?SMB-112L frequency option.
  • R&S?SMB-B31 Order No. 1407.1260.02
    High Power Option, 50 MHz to 20 GHz
    (only available with R&S?SMB-B120/-B120L)
  • R&S?SMB-B32 Order No. 1407.1360.02
    High Power Option, 50 MHz to 40 GHz
    (only available with R&S?SMB-B140/-B140L)
  • R&S?SMB-K21 Order No. 1407.3811.02
    Pulse Modulator
    for R&S?SMB-B112/-B112L/-B120/-B120L/ -B140/-B140L
  • R&S?SMB-K22 Order No. 1407.3770.02
    Pulse Modulator
    for R&S?SMB-B101/-B102/-B103/-B106
  • R&S?SMB-K23 Order No. 1407.3786.02
    Pulse Generator
  • R&S?SMB-K27 Order No. 1407.3828.02
    Pulse Train
    Requires an R&S?SMB-K23 option, only available for instruments with serial number > 102400.
Recommended Extras
  • R&S?ZZA-S234 Order No. 1109.4493.00R&S?ZZA-S234 19" Rack Adapter
    19" Rack Adapter
    For mounting a 3/4 19" housing 2 RU high in a standard 19" rack
  • R&S?NRP-Z92 Order No. 1171.7005.02 / 1171.7005.42R&S?NRP-Z92 Average Power Sensor
    Average Power Sensor
    Accurate average power measurements for EMC applications
    Measurement range: -57 dBm to +33 dBm,
    Frequency range: 9 kHz to 6 GHz,
    N connector
  • R&S?NRP-Z55 Order No. 1138.2008.03R&S?NRP-Z55 Thermal Power Sensor model .03
    Thermal Power Sensor model .03
    Most accurate power measurements for reference applications and use in calibration labs
    Measurement range: -35 dBm to +20 dBm,
    Frequency range: DC to 40 GHz,
    2.92 mm connector
  • R&S?NRP-Z55 Order No. 1138.2008.04 R&S?NRP-Z55 Thermal Power Sensor model .04
    Thermal Power Sensor model .04
    Most accurate power measurements for reference applications and use in calibration labs
    Measurement range: -35 dBm to +20 dBm,
    Frequency range: DC to 44 GHz,
    2.92 mm connector
  • R&S?NRP-Z22 Order No. 1137.7506.02R&S?NRP-Z22 Three-Path Diode Power Sensors
    Three-Path Diode Power Sensors
    Fast, accurate and packed with features for CW and modulated signals
    Measurement range: -57 dBm to +33 dBm,
    Frequency range: 10 MHz to 18 GHz,
    N connector
  • R&S?NRP-Z4 Order No. 1146.8001.02 / 1146.8001.04 / 1146.8001.06 / 1146.8001.11
    USB Adapter (passive)
    For all R&S?NRP-Z sensors.
    The R&S?NRP-Z4 passive USB adapter provides all basic functions, as it handles the transmission of settings and measurement data as well as the power supply of the sensor via the USB bus.
    Available cable lenghths: Available cable lengths: 2.0m, 0.5m and 0.15m
    Available cable length for panel-mount: 1m
  • R&S?TS-USB1 Order No. 6124.2531.00
    USB Serial Adapter for RS-232 remote control
  • Test Port Adapter Order No. 1021.0512.00
    Test port adapter, PC 3.5 mm female
    Adapter for instruments with an R&S?SMB-B112/-B112L/-B120 or R&S?SMB-B120L frequency option
  • Test Port Adapter Order No. 1021.0529.00
    Test port adapter, PC 3.5 mm male
    Adapter for instruments with an R&S?SMB-B112/-B112L/-B120 or R&S?SMB-B120L frequency option
  • Test Port Adapter Order No. 1021.0535.00
    Test port adapter, N female
    Adapter for instruments with an R&S?SMB-B112/-B112L/-B120 or R&S?SMB-B120L frequency option
  • Test Port Adapter Order No. 1021.0541.00
    Test port adapter, N male
    Adapter for instruments with an R&S?SMB-B112/-B112L/-B120 or R&S?SMB-B120L frequency option
  • Test Port Adapter Order No. 1088.1627.02
    Test port adapter, 2.4 mm female
    Adapters for instruments with an R&S?SMB-B140 or R&S?SMB-B140L frequency option
  • Test Port Adapter Order No. 1036.4790.00
    Test port adapter, 2.92 mm female
    Adapters for instruments with an R&S?SMB-B140 or R&S?SMB-B140L frequency option
  • Test Port Adapter Order No. 1036.4802.00
    Test port adapter, 2.92 male
    Adapters for instruments with an R&S?SMB-B140 or R&S?SMB-B140L frequency option
  • Test Port Adapter Order No. 1036.4777.00
    Test port adapter, N female
    Adapters for instruments with an R&S?SMB-B140 or R&S?SMB-B140L frequency option
  • Test Port Adapter Order No. 1036.4783.00
    Test port adapter, N male
    Adapters for instruments with an R&S?SMB-B140 or R&S?SMB-B140L frequency option
Frequency multipliers
  • R&S?SMZ75 Order No. 1417.4004.02
    Frequency Multiplier, 50 GHz to 75 GHz
  • R&S?SMZ90 Order No. 1417.4504.02
    Frequency Multiplier, 60 GHz to 90 GHz
  • R&S?SMZ110 Order No. 1417.5000.02
    Frequency Multiplier, 75 GHz to 110 GHz
  • R&S?SMZ170 Order No. 1417.5500.02
    Frequency Multiplier, 110 GHz to 170 GHz
  • R&S?SMZ-B75M Order No. 1417.6007.02
    Mechanically Controlled Attenuator for the R&S?SMZ75
  • R&S?SMZ-B75E Order No. 1417.6107.02
    Electronically Controlled Attenuator for the R&S?SMZ75
  • R&S?SMZ-B90M Order No. 1417.6507.02
    Mechanically Controlled Attenuator for the R&S?SMZ90
  • R&S?SMZ-B90E Order No. 1417.6607.02
    Electronically Controlled Attenuator for the R&S?SMZ90
  • R&S?SMZ-B110M Order No. 1417.7003.02
    Mechanically Controlled Attenuator for the R&S?SMZ110
  • R&S?SMZ-B110E Order No. 1417.7103.02
    Electronically Controlled Attenuator for the R&S?SMZ110
Documentation
  • R&S?DCV-2 Order No. 0240.2193.09
    Documentation of calibration values
  • R&S?SMB-DKD Order No. 1161.3607.02
    DKD (ISO 17025) Calibration including ISO 9000
    calibration (can only be ordered with the instrument)
Service Options
  • R&S?WE1SMB100A
    Extended Warranty, one year
  • R&S?WE2SMB100A
    Extended Warranty, two years
  • R&S?WE3SMB100A
    Extended Warranty, three years
  • R&S?WE4SMB100A
    Extended Warranty, four years
  • R&S?CW1SMB100A
    Extended Warranty with Calibration Coverage, one year
  • R&S?CW2SMB100A
    Extended Warranty with Calibration Coverage, two years
  • R&S?CW3SMB100A
    Extended Warranty with Calibration Coverage, three years
  • R&S?CW4SMB100A
    Extended Warranty with Calibration Coverage, four years
