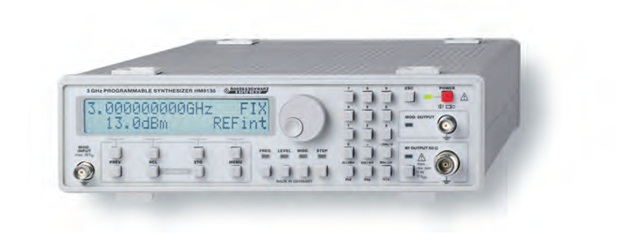

HM8143 / 8135 (Base-band 신호발생기)

주요 스펙

주파수 범위
  • :1 Hz to 1.2 / 3 GHz
출력 파워
  • :-135 dBm to +13 dBm / +17 dBm
SSB Phase Noise
  • :< -105 dBc
Modulation Mode
  • :AM, FM, PSK, FSK, Pulse, Phase
인터페이스
  • :USB, RS-232, GPIB (옵션)
Key Facts

 - Frequency range: 1 Hz to 1.2/3 GHz
 - Output power: ?127 dBm/?135 dBm to +13 dBm
 - Frequency resolution of 1 Hz
 - High spectral purity, excellent sweep mode
 - Modulation modes: AM, FM, pulse, phase, FSK, PSK
 - Internal modulation (10 Hz to 150 kHz): sine, square, triangle, ramp

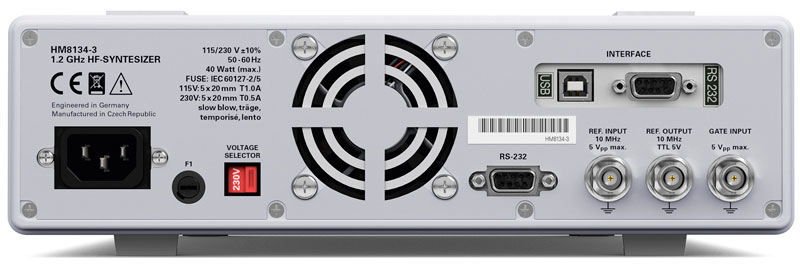

 - External reference input/output (10 MHz) via BNC connector
 - HM8134-3/HM8135: TCXO (temperature stability: ±0.5 × 10?6);
 - HM8134-3X/HM8135-X: OCXO (temperature stability: ±1.0 × 10?8)
 - RS-232/USB dual interface, IEEE-488 (GPIB) optional

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


Key Facts

 - Frequency range: 1 Hz to 1.2/3 GHz
 - Output power: ?127 dBm/?135 dBm to +13 dBm
 - Frequency resolution of 1 Hz
 - High spectral purity, excellent sweep mode
 - Modulation modes: AM, FM, pulse, phase, FSK, PSK
 - Internal modulation (10 Hz to 150 kHz): sine, square, triangle, ramp
 - External reference input/output (10 MHz) via BNC connector
 - HM8134-3/HM8135: TCXO (temperature stability: ±0.5 × 10?6);
 - HM8134-3X/HM8135-X: OCXO (temperature stability: ±1.0 × 10?8)
 - RS-232/USB dual interface, IEEE-488 (GPIB) optional

구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com


구매, 기술, 렌탈 문의  이성종 과장 010-4812-3482 / sjlee3482@gmail.com

Options
 - HO85       OCXO temperature stability ±1x10-8 for HM8123, HM8134-3, HM8135, OCXO Installation only ex factory


Hardware Options
 - HO820         USB/RS-232 Interface for Series 8100 included in delivery
 - HO880         IEEE-488 (GPIB) Interface
