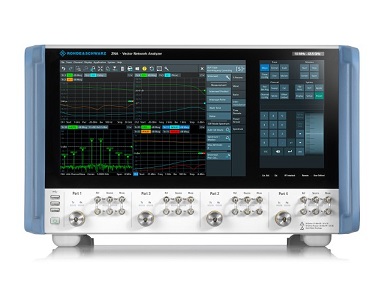

ZNA (High-end Network Analyzer)
- Frequency range
-
- :10 MHz to 26.5 GHz / 43.5 GHz
- Dynamic Range
-
- :Up to 146 dB (typ.)
- Output power
-
- :Up to + 20 dBm (typ.)
- Power range
-
- :Up to 100 dB
- IF Bandwidth
-
- :1 Hz to 30 MHz
-
OSCIS Series Mainframe
- Slot
-
- :8 SLot
- Dimensions
-
- :448 x 145 x x387 mm
- Power supply
-
- :100 to 240 V, 50 to 60Hz
- Weight
-
- :7.2 kg
- Available version
-
- :Bench-top / Rack-mount
-

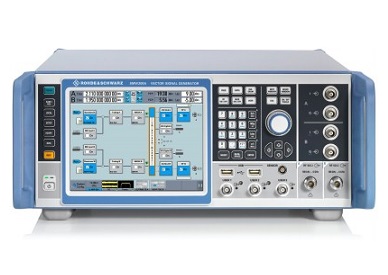

SMW200A (RF Vector signal generator)
- 주파수 범위
-
- :100 kHz to 3 / 6 / 13 / 20 / 32 / 40 GHz
- 레벨 범위
-
- :-145 dBm to 30 dBm
- IQ Mod. 대역폭
-
- :Up to 160 MHz or 2 GHz(ext.BB)
- Fading
-
- :2x2, 4x2, 2x4, 3x3, 4x4, 8x2 ...
- SSB Phase Noise
-
- :-139 dBc
-

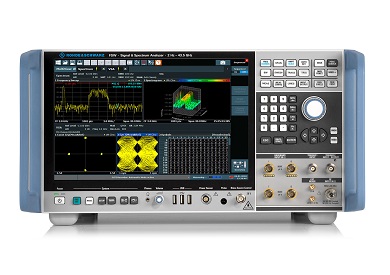

FSW (스펙트럼 분석기)
- FSW 8
-
- :2 Hz to 8 GHz
- FSW13
-
- :2 Hz to 13.6 GHz
- FSW26
-
- :2 Hz to 26.5 GHz
- FSW43
-
- :2 Hz to 43.5 GHz
- FSW50 / 67 / 85
-
- :2 Hz to 50 / 67 / 85 GHz
-
Tunable Laser Source module-T100
- Wavelength range
-
- :1260-1360/1360-1415/1465-1575/1490-1610/1520-1630/1560-1680nm
- Output Power
-
- :+6 dBm
- SSSER
-
- :> 90 dB / 0.1 nm
- Digital Modulation
-
- :Up to 1 MHz
- Output Fiber
-
- :SMF or PMF (option)
-

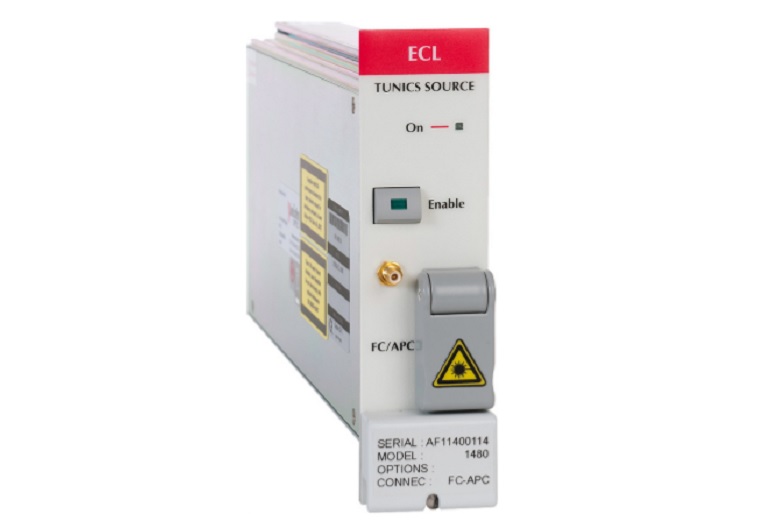

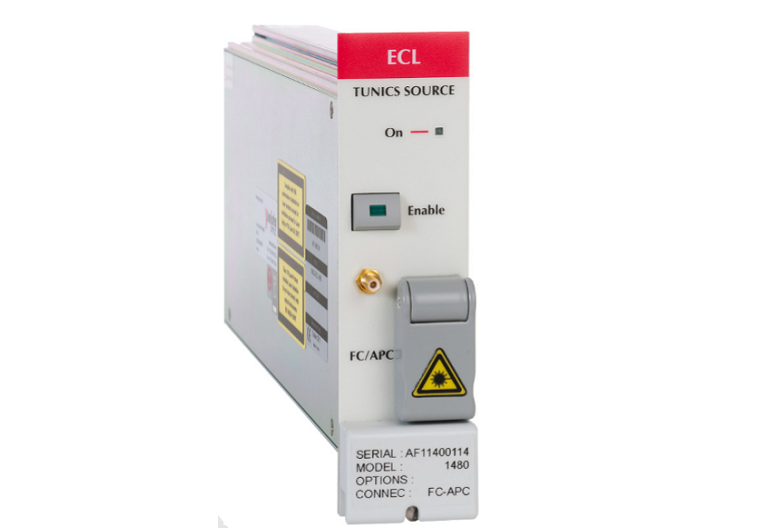

Tunable Laser Source module-ECL
- Wavelength range
-
- :1520-1600 / 1530-1580 nm
- Output Power
-
- :+ 6 dBm
- SSSER
-
- :45 dB / 0.1 nm
- Digital Modulation
-
- :Up to 1 MHz
- Output Fiber
-
- :SMF or PMF (option)
-

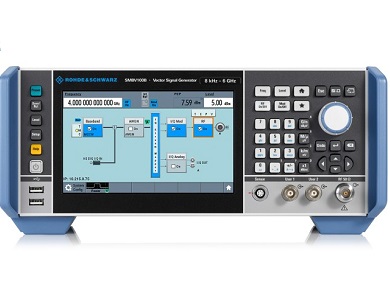

SMBV100B (RF Vector signal generator)
- 주파수 범위
-
- :8 kHz to 3 GHz / 6 GHz
- 레벨 범위
-
- :?127 dBm to +25 dBm
- SSB Phase Noise
-
- :< ?139 dBc, -142 dBc (typ.)
- 신호분석 대역폭
-
- :120 MHz / 240 MHz / 500 MHz
- Output power
-
- :+ 25 dBm (with option)
-

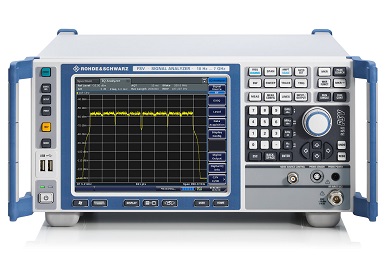

FSV (스펙트럼 분석기)
- FSV4
-
- :10 Hz to 4 GHz
- FSV7
-
- :10 Hz to 7 GHz
- FSV13
-
- :10 Hz to 13.6 GHz
- FSV30
-
- :10 Hz to 30 GHz
- FSV40
-
- :10 Hz to 40 GHz
-

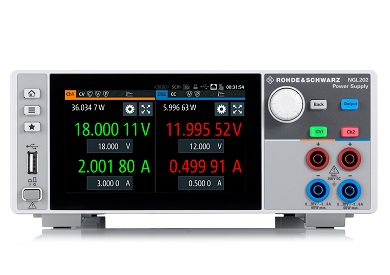

NGL200 시리즈 파워서플라이
- 최대 출력전압
-
- :0 V to 20 V
- 최대 출력전류
-
- :0 A to 6 A
- 리플 / 노이즈
-
- :<500 uVrms / <1 mArms
- 응답속도
-
- :<30 uS
- 인터페이스
-
- :USB, LAN, GPIB
-

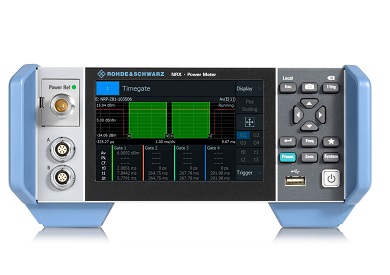

NRX 시리즈 RF파워미터
- 주파수 범위
-
- :DC to 110 GHz
- 전력 범위
-
- :0.1 fW to 30 W (average)
- 채널 수
-
- :1채널 / 2채널 / 4채널
- 정확도
-
- :±5 ppm
- 인터페이스
-
- :LAN, USB, GPIB
